NEMA 17 External Acme Linear Stepper Motor Actuator 2.5A 1.8 Deg 0.5Nm 48mm Stack Lead Revolution 25.4mm(1") Lead Screw 150mm
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 20th, 2024
- Note:No coupon code needed, please place order directly!
NEMA 17 External Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 25.4mm(1") Lead Length 150mm

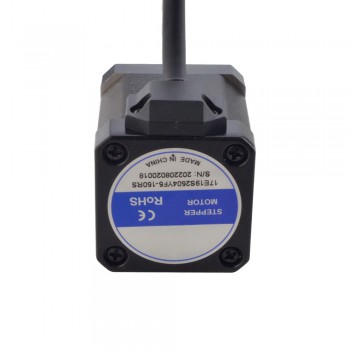

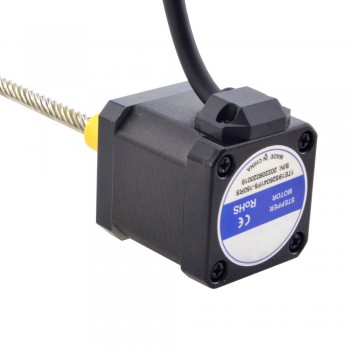

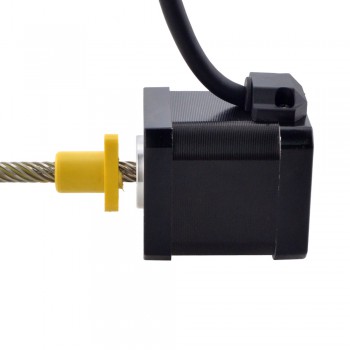

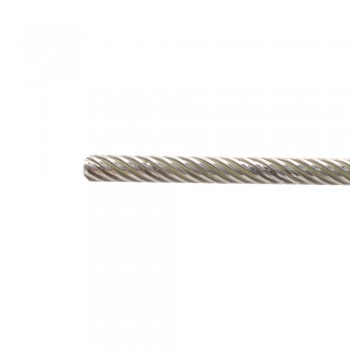

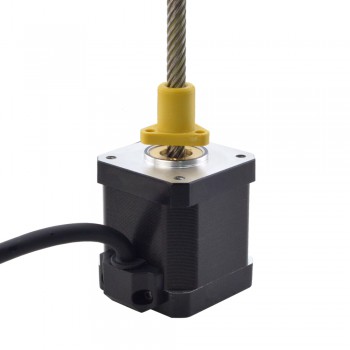

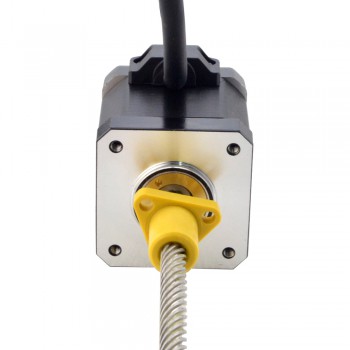

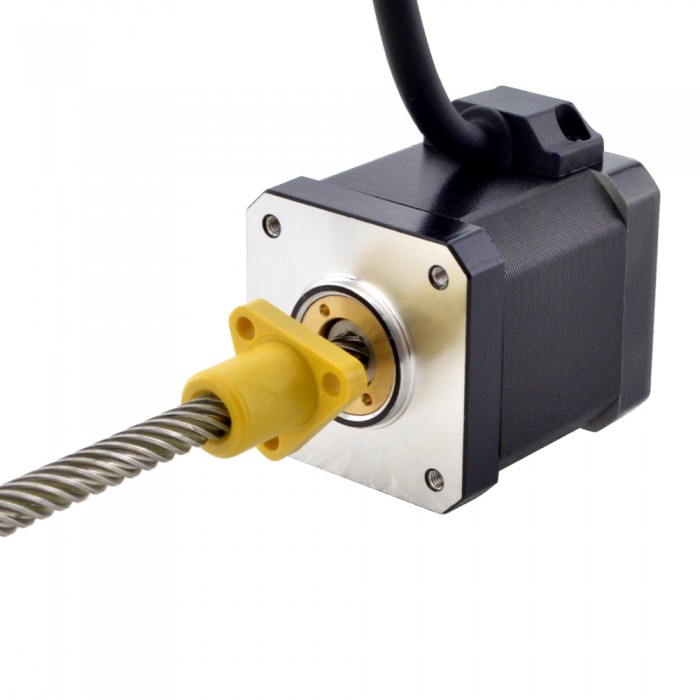

This model is a Nema 17 ACME screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 25.4mm(1") per revolution.
Electrical Specification
Manufacturer Part Number: 17E19S2504YF5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.5Nm(70.82oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 0.8ohms
Inductance: 1.8mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.127mm(0.005")
Lead Travel/Revolution: 25.4mm(1")
Number of Leads: 4
Number of Thread Starts: 8
Lead Length: 500mm
Connection
A+ | A- | B+ | B- |
Red | Red/White | Green | Green/White |
Resources
- 17E19S2504YF5-150RS_Full_Datasheet.pdf
- 17E19S2504YF5-150RS_Thrust_Force_Curve.pdf
- 17E19S2504YF5-150RS.STEP
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 1.8 |
Phase Resistance(ohm) | 0.8 |
Rated Current (A) | 2.5 |
Step Angle(deg.) | 1.8 |
Linear Motor Type | External(Acme) |
Physical Specification | |
Body Length(mm) | 48 |
Frame Size(mm) | Nema 17 (42 x 42) |
Lead Length(mm) | 500 |
Lead Screw Diameter(mm) | 6.35 |
Lead Screw Length(mm) | 150 |
No. of Lead | 4 |
Lead Travel/Revolution(mm) | 25.4 |
Lead Travel/Step(mm) | 0.127 |
IP Rating | 40 |
