T6 Series 750W Digital AC Servo Motor & Driver Kit 3000rpm 2.39Nm with Brake 17-Bit Encoder IP65

T6 Series 750W Digital AC Servo Motor & Driver Kit 3000rpm 2.39Nm with Brake 17-Bit Encoder IP65
NO.:T6-RS750H2B3-M17S
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$411.47
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $390.90 5%
5 $382.67 7%
10 $370.32 10%
50 $357.98 13%
Add To Cart

T6 Series 750W AC Servo Motor Kit 3000rpm 2.39Nm w/ Brake 17-Bit Encoder IP65



T6 Series AC servo products are cost-effective AC digital servo which is designed for position accurate control, power range up to 1kW, which can provide a effective solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.

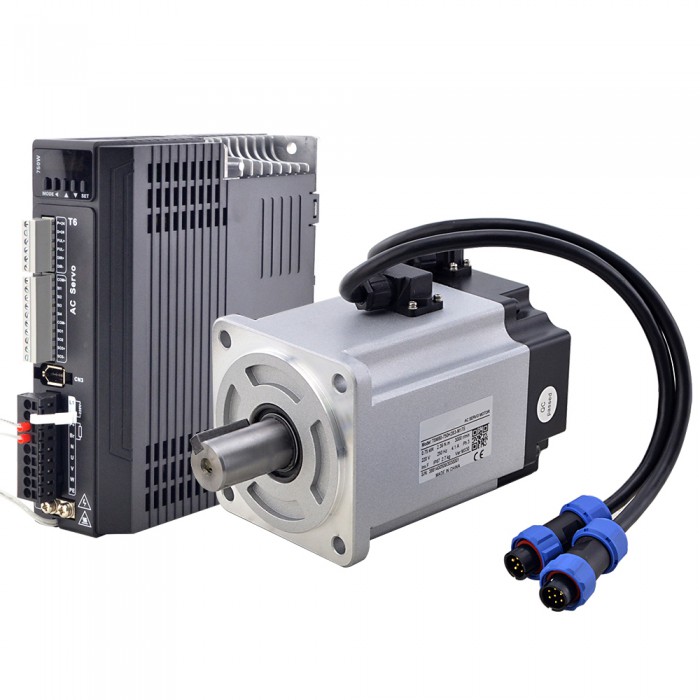

Items in kit

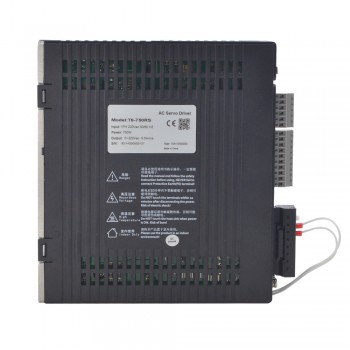

1 x T6-750RS: 750W AC Servo Motor Driver

1 x T6M80-750H2B3-M17S: 750W AC Servo Motor 3000rpm 2.39Nm w/ Brake 17-Bit Encoder IP65

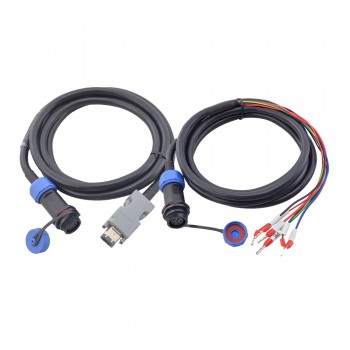

1 x CMBST1M5: 1.5m Motor Extension Cable with IP65 Aviation Connector with Brake Cable

1 x CEST1M5: 1.5m Encoder Extension Cable with IP65 Aviation Connector

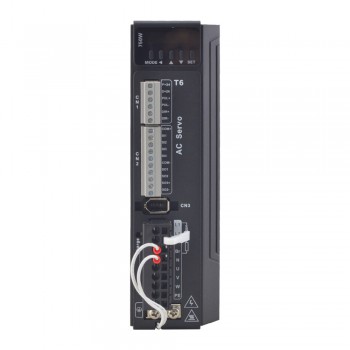

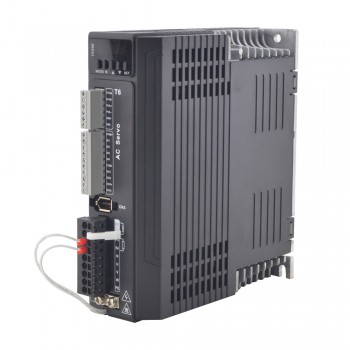

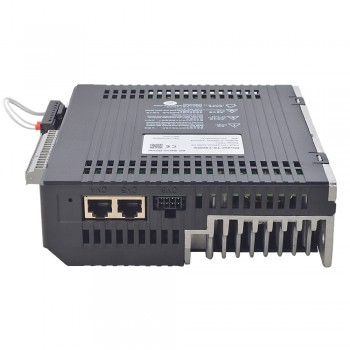

Servo Driver Specification

Part Number: T6-750RS

Modbus RTU communication

Support pulse control

PR function, 16 paths

Encoder signals A/B/Z differential output and Z OC output

4 inputs and 3 outputs

Rated voltage 220VAC 1ph

Rated power 750W

Available 17-bit/23-bit encoder

Automatic motor identification

Dimension: 175*168*50mm

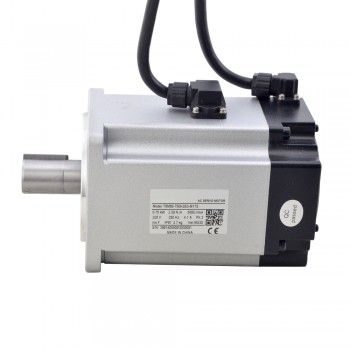

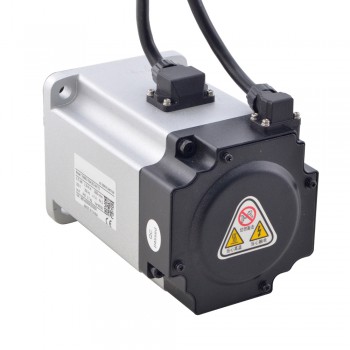

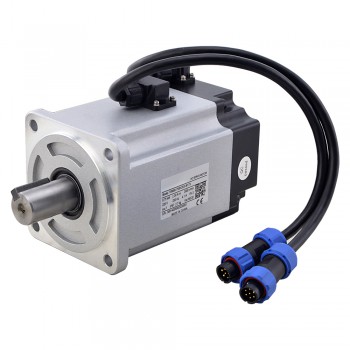

Servo Motor Specification

Part Number: T6M80-750H2B3-M17S

Rated Voltage: 220VAC

Rated Power: 750W

Rated Torque: 2.39Nm

Peak Torque: 7.17Nm

Rated Speed: 3000rpm

Peak Speed: 5000rpm

Rated Current: 4.1A

Peak Current: 13.4A

Torque Const: 0.645N.m/A

Back EMF Const: 39V/krpm

Resistance: 1.7ohm

Inductance: 8mH

Inertia: 1.65kg*m2*10-4

Poles: 10

Encoder: 17 bit incremental encoder

IP Rating: IP65

Mass Weight: 2.7Kg



Resources

T6_Servo_Full_Manual.pdf

T6_Servo_Quick_Start.pdf

T6_Servo_Simple_Manual.pdf

T6M80-750H2B3-M17S.pdf

T6_Motion_Studio_Nature.zip

T6-750RS.stp

T6M80-750H2B3-M17S.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: T6 Series 750W Digital AC Servo Motor & Driver Kit 3000rpm 2.39Nm 17-Bit Encoder IP65
Next: T6 Series 1000W Digital AC Servo Motor & Driver Kit 3000rpm 3.19Nm 17-Bit Encoder IP65
Servo Motor Specification
Control Modes Modbus RTU / Pulse Mode
Rated Power(W) 750
Input Voltage(V) 220VAC
Rated Speed(rpm) 220VAC
Rated Torque(Nm) 2.39
Peak Speed(rpm) 5000
Peak Torque(Nm) 7.17
With Brake Yes
Physical Specification
Frame Size(mm) 80 x 80
Shaft Diameter(mm) 19
IP Rating IP65
