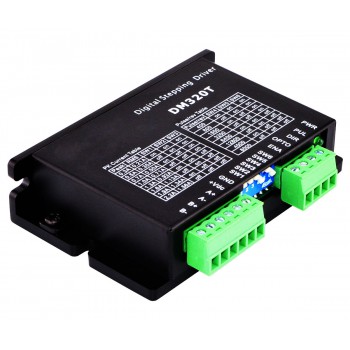

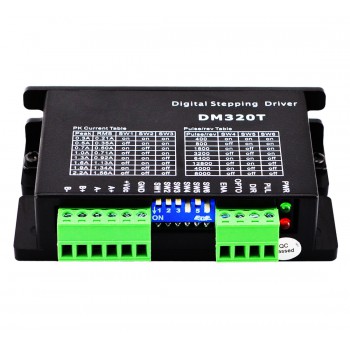

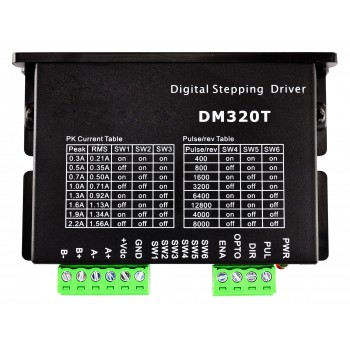

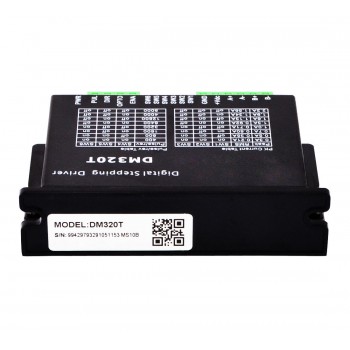

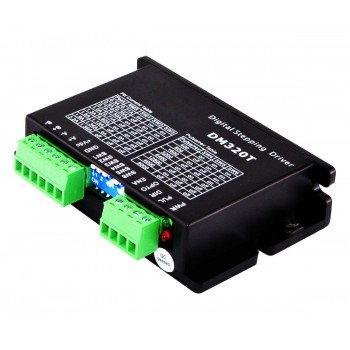

Digital Stepper Driver 0.3-2.2A 18-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor

NO.:SKU:DM320T
Review: Post a review
Latest price:$24.72
Buy It Now:$19.01
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$13.69 $13.29 $12.89 $12.49
Add To Cart

This is a digital stepper drive implemented with Leadshine’s advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phase motors(from Nema 8 ~ Nema 17 size) smoothly with less heat and noise. It works with 18-30VDC voltage and can provide max 2.2A peak current. You can set the DIP switches to get the current and microsteps you need.

Key Features:

  • Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
  • Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
  • Step & direction (PUL/DIR) control
  • Multi-Stepping for smooth motor movement
  • Optically isolated inputs
  • Input voltage 18-30VDC
  • 8 selectable micro-step resolutions of 400-12800 via DIP switches
  • 8 selectable output current settings of 0.3 – 2.2A via DIP switches
  • Soft-start with no “jump” when powered on
  • Pulse input frequency up to 60 KHz
  • Automatic idle-current reduction
  • Protections for over-voltage and over-current

Electrical Specifications:

  • Output Peak Current: 0.3~2.2A (1.6 RMS)
  • Input Voltage: +18~30VDC
  • Logic Signal Current: 7~16mA (Typical 10mA)
  • Pulse Input Frequency: 0~60kHz
  • Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0℃ - 65℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 50℃ MAX
  • Vibration: 10-50Hz / 0.15mm
  • Storage Temperature: -20℃ - 65℃
  • Weight: Approx.90g (3.5oz)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Hollow Shaft Bipolar 18Ncm (25.5oz.in) 0.8A 35x35x34mm
Next: Digital Stepper Driver 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
Stepper Driver Specification
Driving Voltage(V) 18 - 30
Output Current(A) 0.3 - 2.2
Microstep(Steps/rev.) 400 - 12800
Max. Pulse Input(kHZ) 60
Pulse Width(μs) 7.5
Physical Specification
Weight(g) 90

patrick_rank – 16 Mar 2018

fast shipment! highly recommend this seller, all 5 stars! a

Rege – 25 Sep 2017

great product...previously not available for NEMA8, NEMA11!
please can also provide the Spec Sheet/user Manual? the Resource PDF link is empty.
