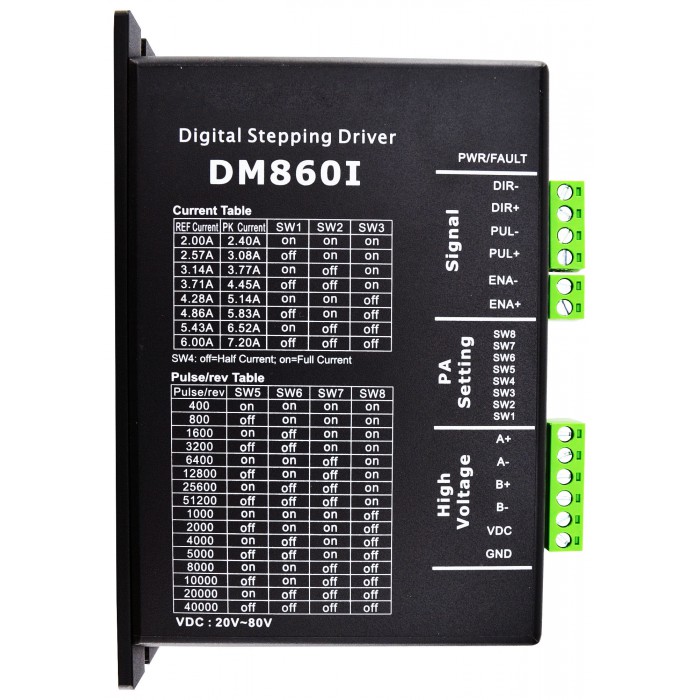

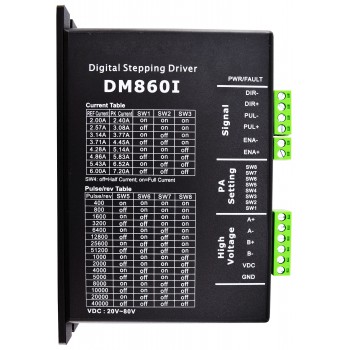

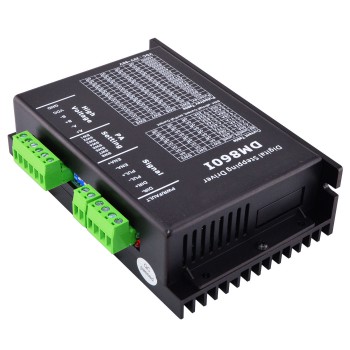

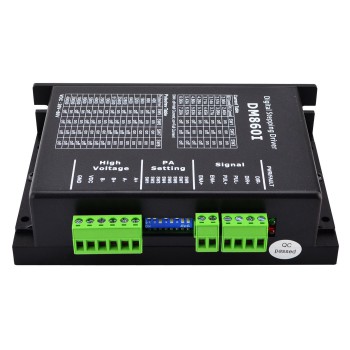

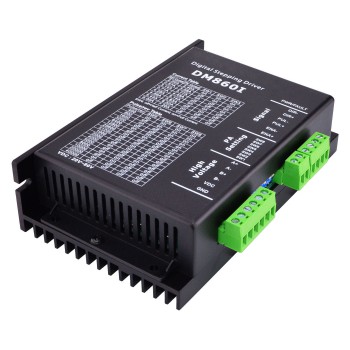

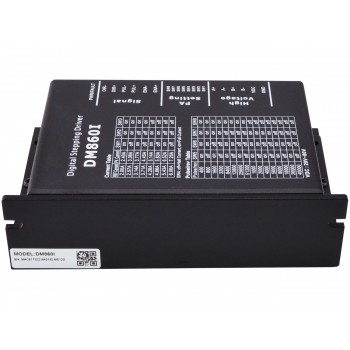

Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit

NO.:SKU:DM860I
Review: Post a review
Latest price:$60.16
Buy It Now:$46.28
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$33.15 $32.02 $30.87 $29.72
Add To Cart

The DM860I is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM860I can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM860I an ideal choice for high requirement applications.

Key Features

  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
  • Soft-start with no "jump" when powered on
  • Input voltage 20-80VDC
  • 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
  • Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Over-voltage, over-curren protection

Electrical Specifications:

  • Output Peak Current: 2.4~7.2A (6.0 RMS)
  • Input Voltage: +20~80VDC
  • Logic Signal Current: 7~16mA (Typical 10mA)
  • Pulse Input Frequency: 0~200kHz
  • Pulse Width: 2.5μS
  • Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0℃ - 65℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: -10℃ - 45℃
  • Vibration: 10-55Hz / 0.15mm
  • Storage Temperature: -20℃ - 65℃
  • Weight: Approx.550g (19.40oz)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
Next: Digital Stepper Driver 2.4-7.2A 18-80VAC or 36-110VDC for Nema 34 Motor
Stepper Driver Specification
Driving Voltage(V) 20 - 80
Output Current(A) 2.4 - 7.2
Microstep(Steps/rev.) 400 - 51200
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
Physical Specification
Weight(g) 550
