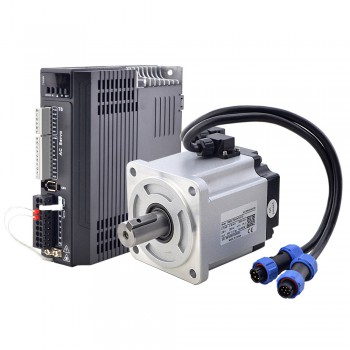

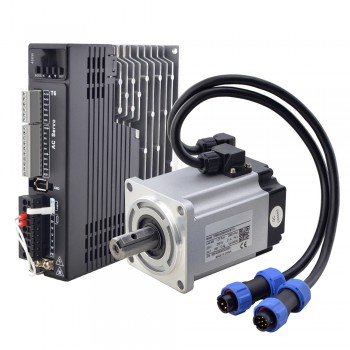

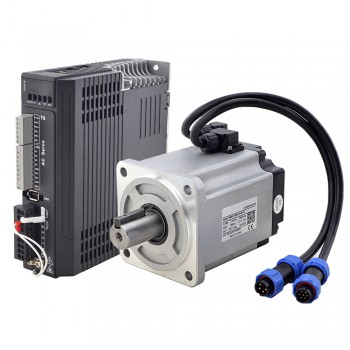

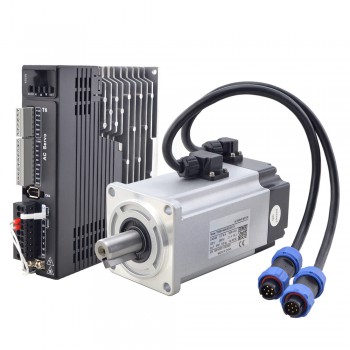

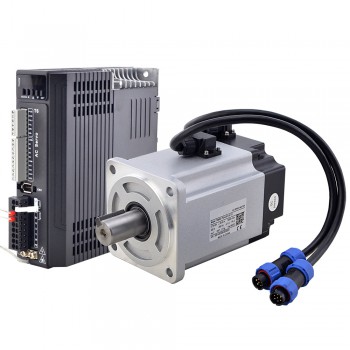

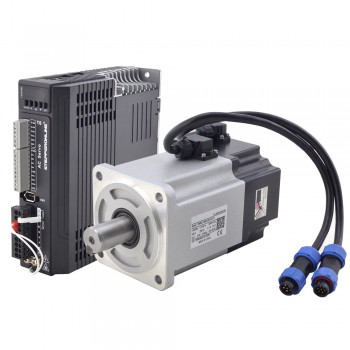

1000W AC Servo Motor Kit 3000rpm 3.18Nm with Servo Driver & 17-Bit Encoder IP65 E6 Series

E6 Series 1000W AC Servo Motor Kit 3000rpm 3.18Nm 17-Bit Encoder IP65

The E6 series servo system is the latest cost-effective servo system. The power ranges from 200W to 1000W. It has the advantages of convenient wiring and one-key adjustment.

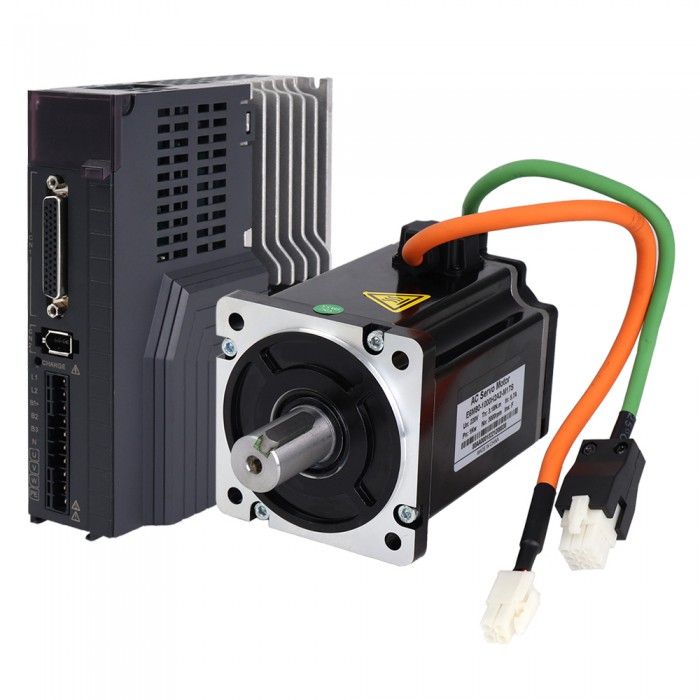

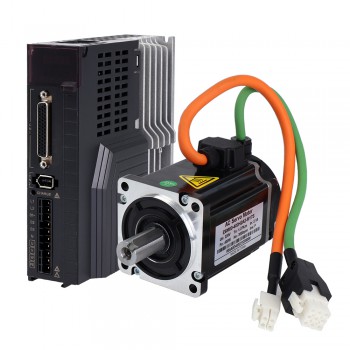

Items in kit

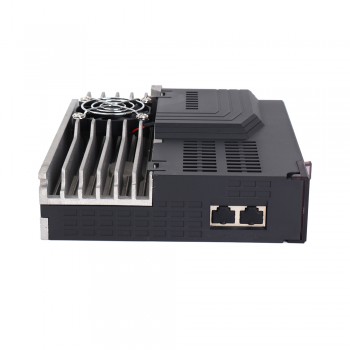

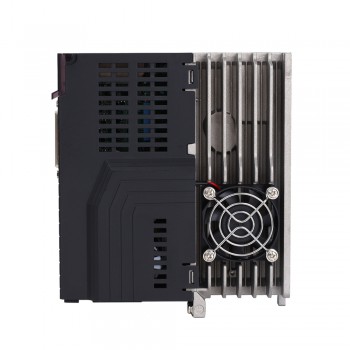

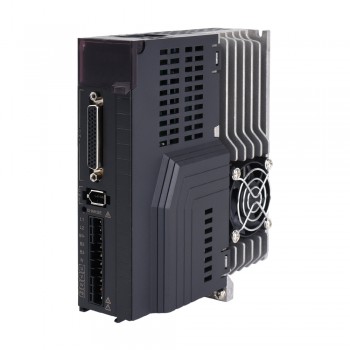

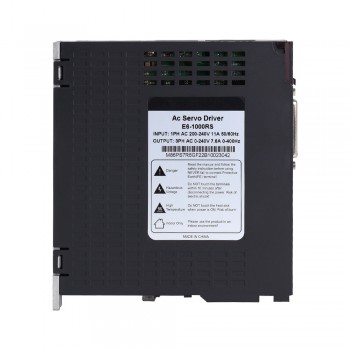

1 x E6-1000RS: 1000W AC Servo Motor Driver

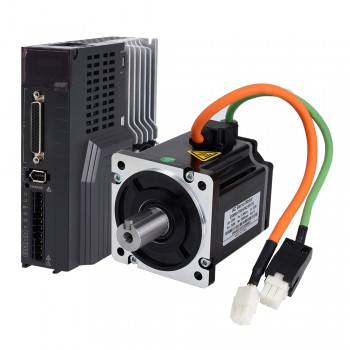

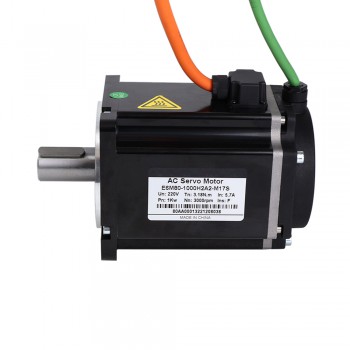

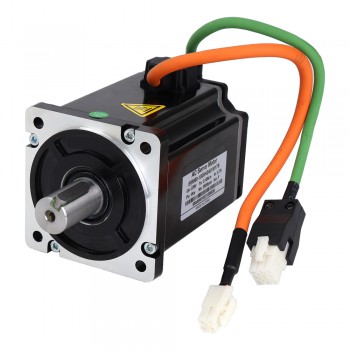

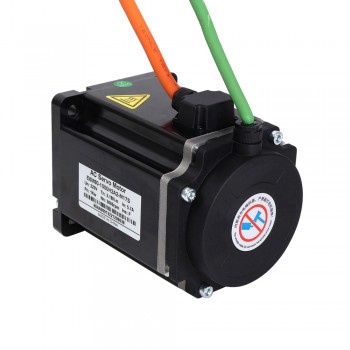

1 x E6M80-1000H2A2-M17S: 1000W AC Servo Motor 3000rpm 3.18Nm 17-Bit Encoder IP65

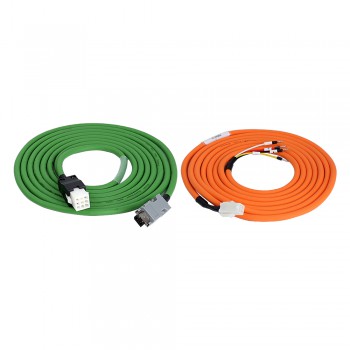

1 x CMOL3M: 3.0m Motor Extension Cable with IP65 AMP Connector

1 x CEOL3M: 3.0m Encoder Extension Cable with IP65 AMP Connector

Servo Driver Specification

Part Number: E6-1000RS

Rated Output Current: 7.6A

RS232, RS485, CANOPEN bus communication

Support pulse control

Encoder signals A/B/Z differential output and Z OC output

2 inputs and 4 outputs

Rated voltage 220VAC 1ph

Rated power 1000W

17-bit magnetic incremental

Automatic motor identification

Dimension: 154*171*51mm

Servo Motor Specification

Part Number: E6M80-1000H2A2-M17S

Rated Voltage: 220VAC

Rated Power: 1000W

Rated Torque: 3.18Nm

Peak Torque: 9.54Nm

Rated Speed: 3000rpm

Peak Speed: 6000rpm

Rated Current: 5.7A

Peak Current: 17.1A

Torque Const: 0.54N.m/A

Resistance: 1.1ohms

Inductance: 0.64mH

Inertia: 2.0kg*m2*10-4

Poles: 5

Encoder Type: 17 bit incremental, magnetic encoder

IP Rating: IP65

Frame Size: 80 x 80mm

Body Length: 111.5mm

Shaft Length: 35mm

Shaft Diameter: 19mm

Key Length: 25mm

Mass Weight: 2.75Kg

Resources

• E6_Series_Full_User_Manual.pdf
• E6_Servo_Full_Manual.pdf
• E6M80-1000H2A2-M17S.pdf
