Nema 17 External Linear Actuator 32Ncm 1.8 Deg 0.4A 12V Lead Lead Revolution Screw 300mm 6 Wires

Nema 17 External Linear Actuator 32Ncm 1.8 Deg 0.4A 12V Lead Lead Revolution Screw 300mm 6 Wires
NO.:17LS19-0406E-300Y
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$52.09
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $49.49 5%
10 $48.44 7%
50 $46.88 10%
100 $45.32 13%
Add To Cart

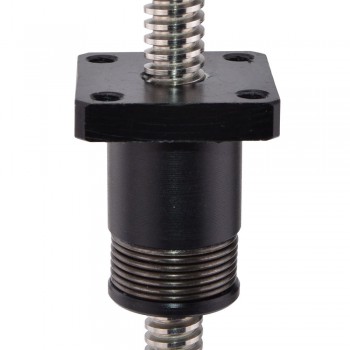

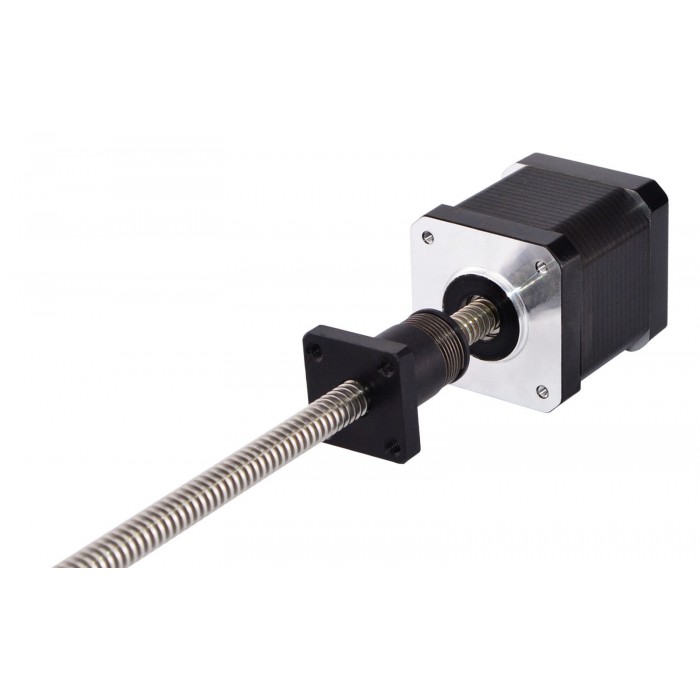

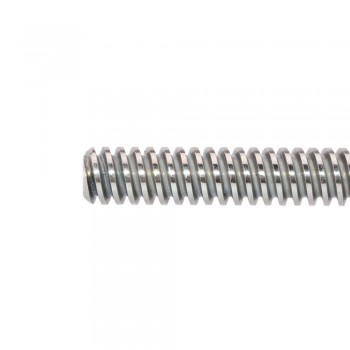

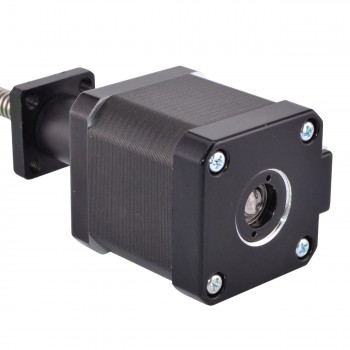

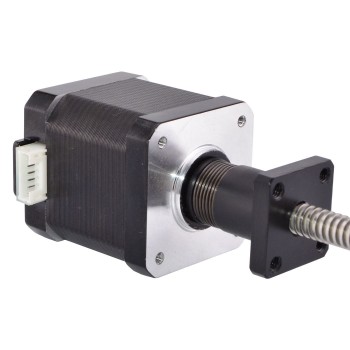

This nema 17 linear stepper motor with Anti-backlash screw nut, the motor part is 12V 0.4A 48mm 1.8 degree 6 wires Nema 17 stepper motor. It was integrated with 300mm Tr8x2 threaded rod and a Anti-backlash screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 17LS19-0406E-300Y
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 32Ncm(36.24oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30 ohms
  • Voltage: 12V
  • Inductance: 25mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 300mm(11.811")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 6
  • Lead Length: 400mm
  • Weight : 400g

Connection

A+
O+
A-
B+
O-
B-
RED
BRN
YEL
GRY
ORG
GRN



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Stepper Motor Linear Actuator 44Ncm 1.8 Deg 1.68A 2.8V 4 Wires
Next: Nema 17 External Linear Actuator 1.8 Degree 12V 0.4A 32Ncm Lead Lead Revolution Screw 330mm 6 Wires
Electrical Specification
Bipolar/Unipolar Unipolar
Holding Torque (Ncm) 32
Holding Torque (oz.in) 45.3
Inductance(mH) 25
Motor Type External
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 300
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 6
Lead Length(mm) 400
Frame Size(mm) Nema 17 (42 x 42)
