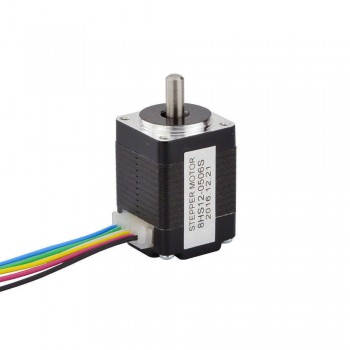

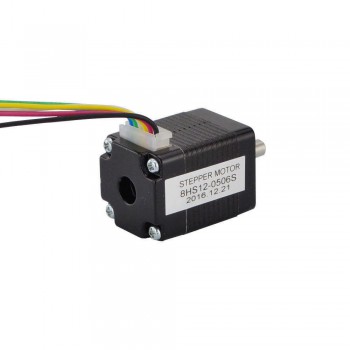

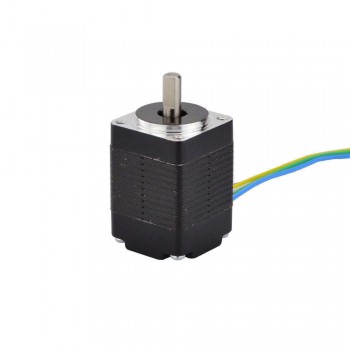

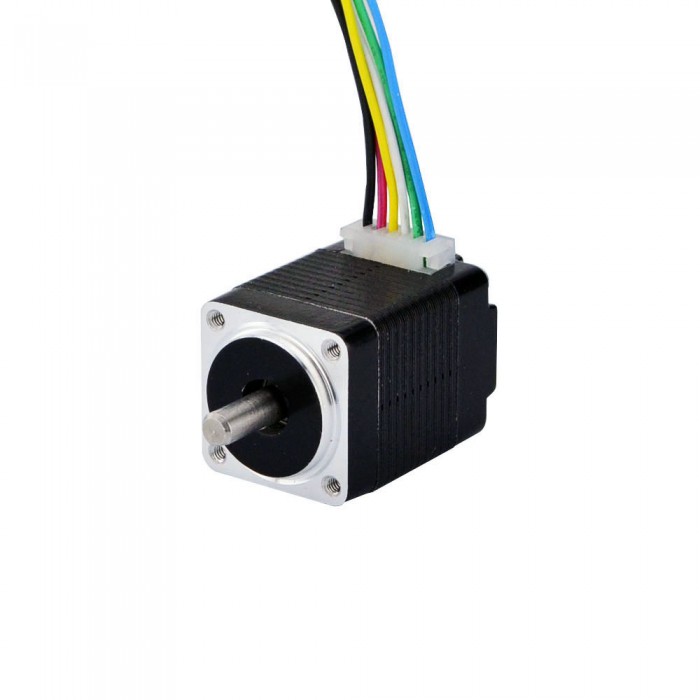

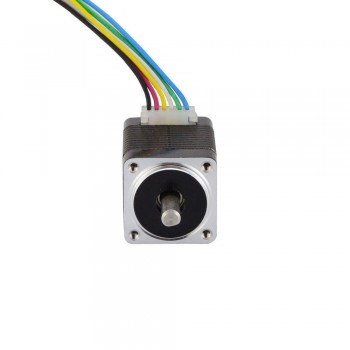

Nema 8 Micro Stepper Motor Unipolar 1.8 Deg 1.8Ncm (2.55oz.in) 0.5A 5.75V 20x20x30mm 6 Wires

NO.:8HS12-0506S
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$21.54

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$20.46	5%
10	$20.03	7%
50	$19.39	10%
100	$18.74	13%

Description Specification Custom Options Review

Nema 8 Micro Stepper Motor Unipolar 1.8 deg 1.8Ncm (2.55oz.in) 0.5A 5.75V 20x20x30mm 6 Wires

This unipolar nema 8 stepper motor with step angle 1.8deg and size 20x20x30mm. It has 6 wires, each phase draws 0.5A, with holding torque 1.8Ncm (2.55oz.in).

Electrical Specification

Manufacturer Part Number: 8HS12-0506S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 1.8Ncm(2.55oz.in)
Rated Current/phase: 0.5A
Voltage: 5.75V
Phase Resistance: 11.5ohms
Inductance: 1.7mH ± 20%(1KHz)

Physical Specification

Frame Size: 20 x 20mm
Body Length: 30mm
Shaft Shape : D-cut
Shaft Diameter: Φ4mm
Shaft Length: 10mm
D-cut Length : 7mm
Number of Leads: 6
Lead Length: 300mm
Weight: 80g

Connection

A+	O+	A-	B+	O-	B-
RED	BLK	YEL	BLU	ORG	GRN

Resources

Full Datasheet: 8HS12-0506S.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mini Nema 8 Steperr Motor Bipolar 1.8 Deg 1.6Ncm (2.3oz.in) 0.2A 4.8V 20x20x28mm 4 Wires
Next: Small Size Nema 8 Stepper Motor Bipolar 1.8 Deg 2Ncm (2.83oz.in) 0.6A 3.9V 20x20x33mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Unipolar
Holding Torque (Ncm)	1.8
Holding Torque (oz.in)	2.55
Inductance(mH)	1.7
Phase Resistance(ohm)	11.5
Rated Current (A)	0.5
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	28
Frame Size(mm)	20x20
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	D-Cut
Shaft Diameter(mm)	4
Shaft Length(mm)	10
No. of Lead	6
Lead Length(mm)	300
Weight(g)	60

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
