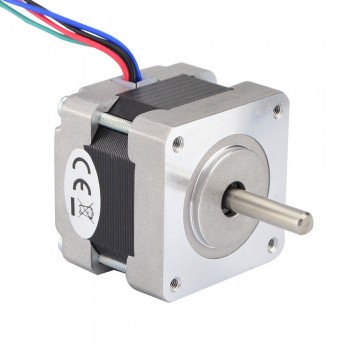

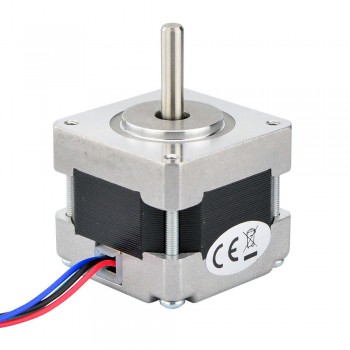

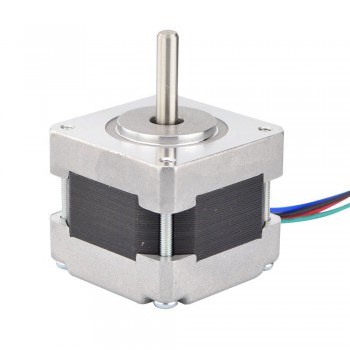

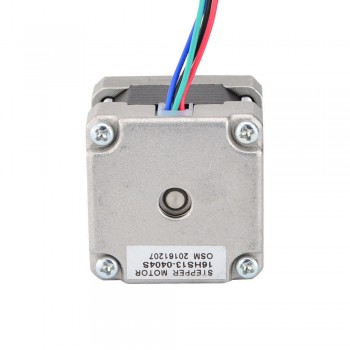

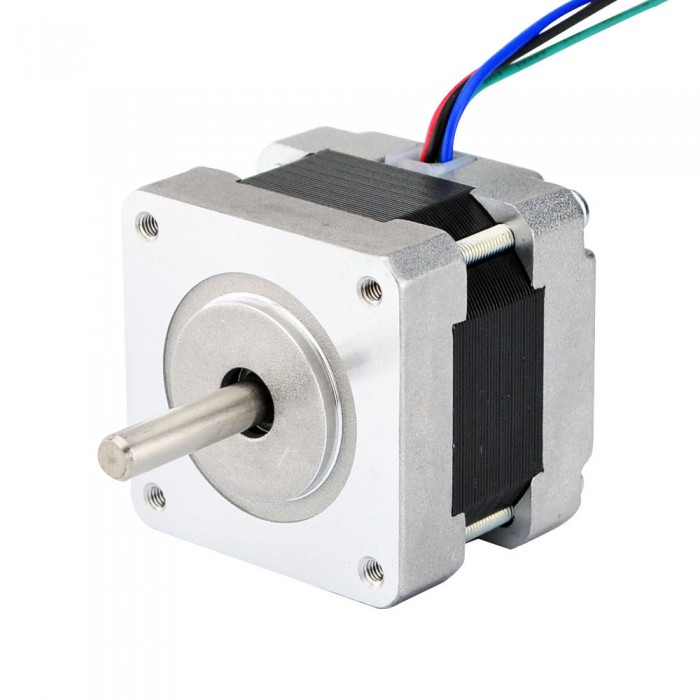

Nema 16 Stepper Motor Bipolar 1.8 deg 21Ncm (29.7oz.in) 0.4A 12V 39x39x34mm 4 Wires

This bipolar Nema 16 stepper motor with step angle 1.8deg and size 39x39x34mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 21Ncm (29.7oz.in).

Electrical Specification

Manufacturer Part Number: 16HS13-0404S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 21Ncm(29.7oz.in)
Rated Current/phase: 0.4A
Voltage: 12V
Phase Resistance: 30ohms
Inductance : 32mH ± 20%(1KHz)

Physical Specification

Frame Size: 39 x 39mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
Number of Leads: 4
Lead Length: 300mm
Weight : 190g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 16HS13-0404S.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 16 Stepper Motor Bipolar 1.8 Deg 8.7Ncm (12.3oz.in) 0.6A 3.96V 39x39x20mm 4 Wires
Next: Nema 16 Stepper Motor Bipolar 1.8 Deg 18Ncm (25.5oz.in) 0.65A 4.55V 39x39x34mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	21
Holding Torque (oz.in)	29.7
Inductance(mH)	32
Phase Resistance(ohm)	30
Rated Current (A)	0.4
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	39x39
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	22
No. of Lead	4
Lead Length(mm)	300
Weight(g)	180

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
