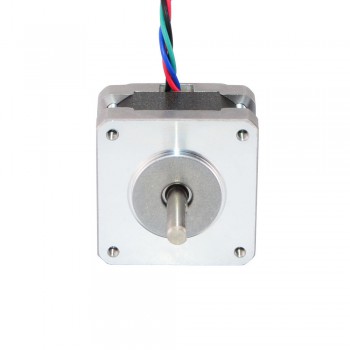

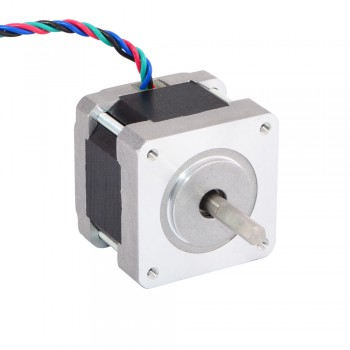

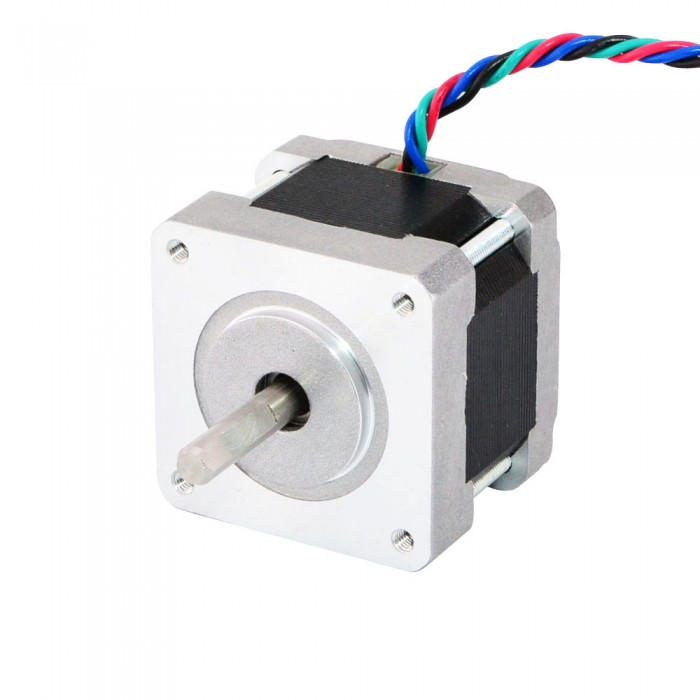

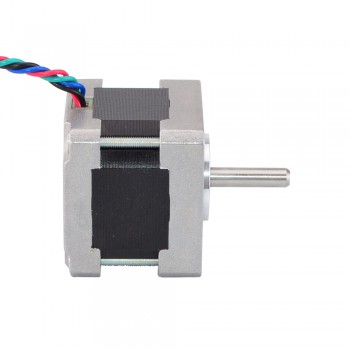

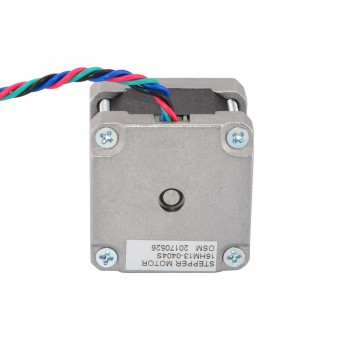

Nema 16 Stepper Motor Bipolar 0.9 deg 18Ncm (25.5oz.in) 0.4A 12V 39x39x34mm 4 Wires

NO.:SKU:16HM13-0404S
Review: Post a review
Latest price:$17.20
Buy It Now:$13.23
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$12.61 $11.99 $11.37 $10.75
Add To Cart

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x34mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 18Ncm (25.5oz.in).

Electrical Specification

  • Manufacturer Part Number: 16HM13-0404S
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 18Ncm(25.5oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 43mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 39 x 39mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 210g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 16 Stepper Motor Bipolar 0.9 deg 16Ncm (22.7oz.in) 0.6A 6V 39x39x25mm 4 Wires
Next: Nema 16 Stepper Motor Bipolar 0.9 deg 25Ncm (35.4oz.in) 0.3A 12V 39x39x44mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 18
Holding Torque (oz.in) 25.5
Inductance(mH) 43
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 34
Frame Size(mm) 39x39
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 22
No. of Lead 4
Lead Length(mm) 300
Weight(g) 180
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
