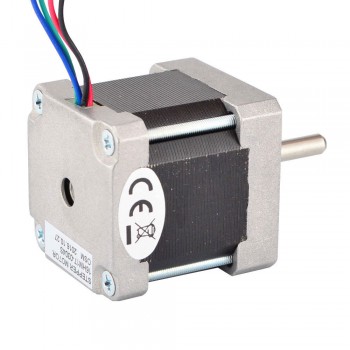

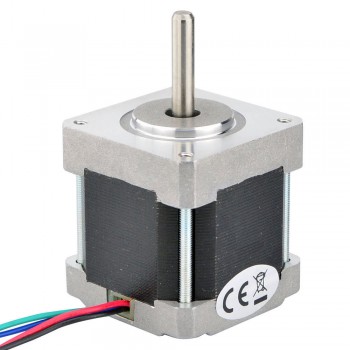

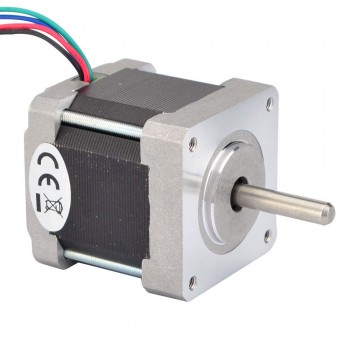

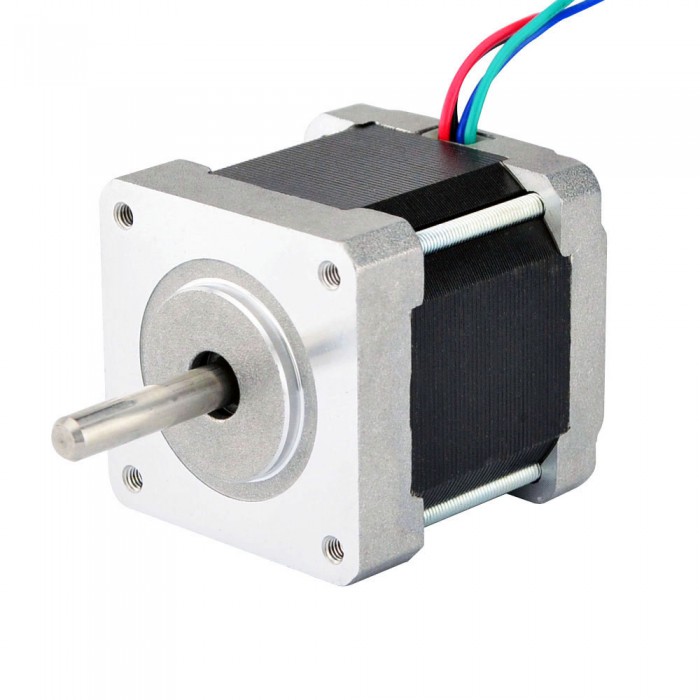

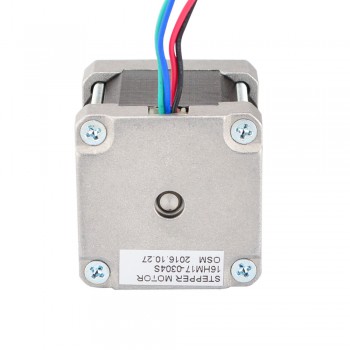

Nema 16 Stepper Motor Bipolar 0.9 Deg 25Ncm (35.4oz.in) 0.3A 12V 39x39x44mm 4 Wires

Nema 16 Stepper Motor Bipolar 0.9 Deg 25Ncm (35.4oz.in) 0.3A 12V 39x39x44mm 4 Wires
NO.:16HM17-0304S
Review: Post a review
Our Price:$17.96
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $17.06 5%
30 $16.70 7%
50 $16.16 10%
100 $15.63 13%
Add To Cart

Nema 16 Stepper Motor Bipolar 0.9 deg 25Ncm (35.4oz.in) 0.3A 12V 39x39x44mm 4 Wires



This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x44mm. It has 4 wires, each phase draws 0.3A at 12V, with holding torque 25Ncm (35.4oz.in).



Electrical Specification

  • Manufacturer Part Number: 16HM17-0304S
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 25Ncm(35.4oz.in)
  • Rated Current/phase: 0.3A
  • Voltage: 12V
  • Phase Resistance: 40ohms
  • Inductance : 110mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 39 x 39mm
  • Body Length: 44mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 270g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 16 Stepper Motor Bipolar 0.9 Deg 18Ncm (25.5oz.in) 0.4A 12V 39x39x34mm 4 Wires
Next: Nema 17 Stepper Motor Bipolar 1.8 Deg 13Ncm (18.4oz.in) 1A 3.5V 42x42x20mm 4 Wires (17HS08-1004S)
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 25
Holding Torque (oz.in) 35.4
Inductance(mH) 110
Phase Resistance(ohm) 40
Rated Current (A) 0.3
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 44
Frame Size(mm) 39x39
Single Shaft/Dual Shaft Single Shaft
Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 300
Weight(g) 250
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Pete – 18 Oct 2019

Nothing I can complain about. I just wished I purchased something more powerful for my application.
