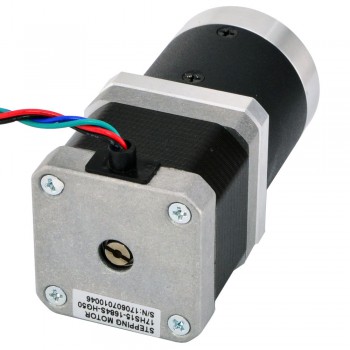

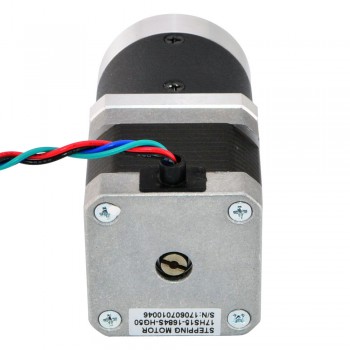

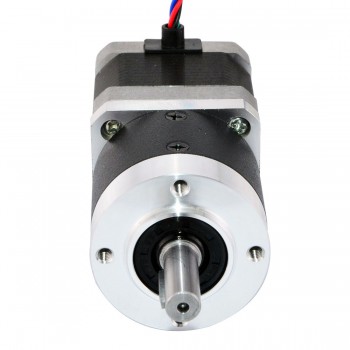

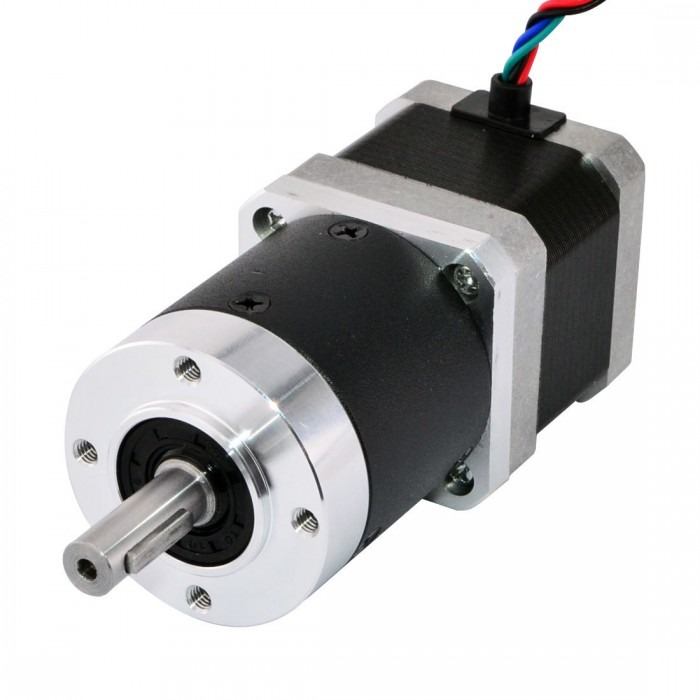

Nema 17 Stepper Motor L=39mm 39Ncm 0.036 deg 1.68A 2.7V with 50:1 Planetary Gearbox

Nema 17 Stepper Motor L=39mm 39Ncm 0.036 deg 1.68A 2.7V with 50:1 Planetary Gearbox
NO.:17HS15-1684S-HG50
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$64.11
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $60.90 5%
10 $59.62 7%
50 $57.70 10%
100 $55.78 13%
Add To Cart

This Nema 17 stepper motor with 39mm body and 1.68A rated current, integrated with a 48.3mm Planetary gearbox of 50:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 17HS15-1684S-HG50

Motor Type: Bipolar Stepper

Step Angle: 0.036 deg

Holding Torque without Gearbox: 39Ncm(55oz.in)

Rated Current/phase: 1.68A

Phase Resistance: 1.6ohms

Voltage: 2.7V

Inductance: 3.2mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 50 : 1

Efficiency: 90%

Backlash at No-load: <=25 arcmin

Max. Permissible Torque: 15Nm(2124oz.in)

Moment Permissible Torque: 25Nm(3540oz.in)

Max. Radial Load: 150N

Ambient Temperature: -10 - 90℃

Insulation Class: B

Noise: <=50 dB

Life: 20000 h



Physical Specifications

Frame Size: 42 x 42mm

Motor Length: 39mm

Gearbox Length: 48.3mm

Shaft Diameter: Φ8mm

Shaft Length: 23.5mm

Key-way Length: 14mm

Number of Leads: 4

Lead Length: 320mm

Weight: 880g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 17HS15-1684S-HG50.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor L=39mm 39Ncm 0.06 deg 1.68A 2.7V with 30:1 Planetary Gearbox
Next: Nema 17 Stepper Motor L=39mm 39Ncm 0.018 deg 1.68A 2.7V with 100:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 0.25
Efficiency 90%
Gear Ratio 50:1
Gearbox Length(mm) 48.3
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 1500
Max. Permissible Torque(oz.in) 2124.2
Moment Permissible Torque(Ncm) 3540.3
Shaft Maximum Radial Load(N) 150
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 320
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.6
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 23.5
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 39
Holding Torque w/o Gearbox(oz.in) 55.23
Motor Length(mm) 39
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-way
Physical Specification
Weight(g) 880
