Nema 34 Stepper Motor Bipolar L=97mm with 20:1 Spur Gearbox 4.5Nm 4.0A 2.4V Gearbox Stepper Motor

Nema 34 Stepper Motor Bipolar L=97mm with 20:1 Spur Gearbox 4.5Nm 4.0A 2.4V Gearbox Stepper Motor
NO.:34HS38-4004D-SG20
Post a review
Our Price:$148.49
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $141.07 5%
5 $138.10 7%
10 $133.64 10%
50 $129.19 13%
Add To Cart

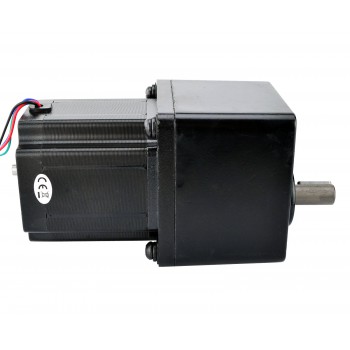

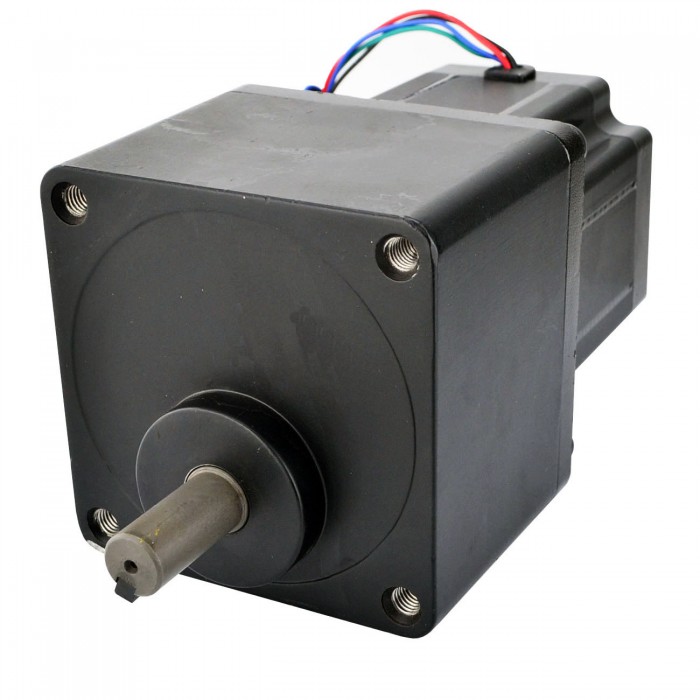

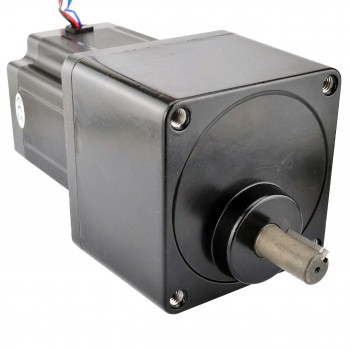

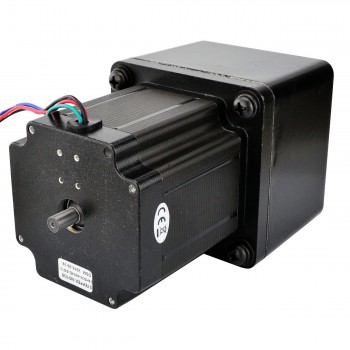

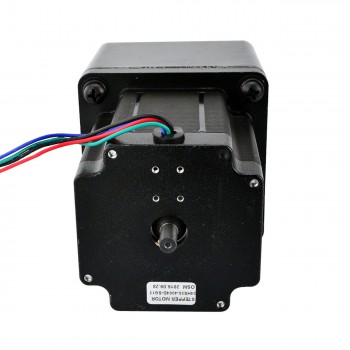

This Nema 34 stepper motor with 97mm body and 4.0A rated current, integrated a104mm square spur gearbox of 20:1 gear ratio. It is suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

Manufacturer Part Number: 34HS38-4004D-SG20

Motor Type: Bipolar Stepper

Step Angle: 0.09 deg

Holding Torque without Gearbox: 4.5Nm(637.25oz.in)

Rated Torque: 40Nm

Rated Current/phase: 4.0A

Phase Resistance: 0.6ohms

Voltage: 2.4V

Inductance: 4.5mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Spur

Gear Ratio: 20

Efficiency: 70%

Backlash at No-load: <=3 deg

Max.Permissible Torque: 40Nm



Physical Specifications

Frame Size: 104 x 104mm

Motor Length: 97mm

Gearbox Length: 72mm

Shaft Diameter: Φ15mm

Shaft Length: 43mm

Key-way length: 25mm

Key-way width: 5mm

Rear Shaft Diameter: 8mm

Rear Shaft Length: 13mm

Number of Leads: 4

Lead Length: 500mm

Weight: 5.6kg



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 34HS38-4004D-SG20.pdf
