1 Axis Stepper Motor Kit 4.0Nm(566oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver
Special Offer in September 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 28th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$59.14

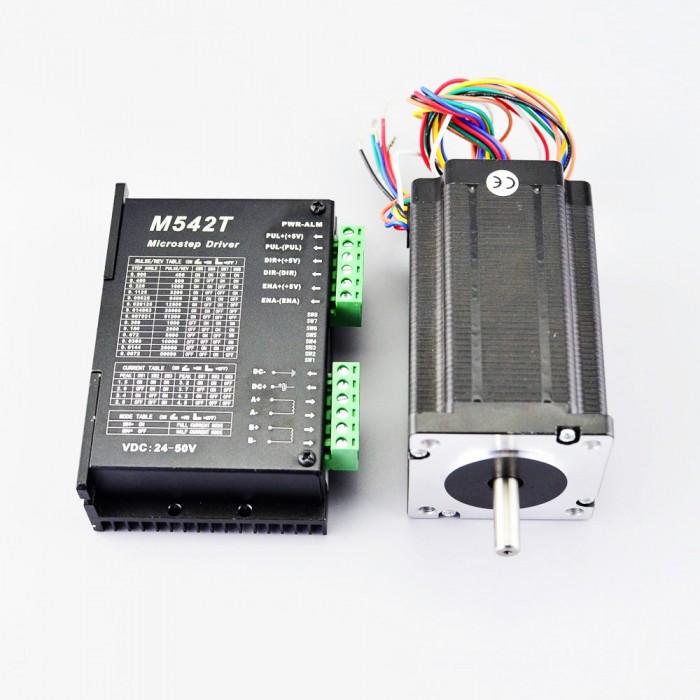

This CNC kit included:
- 1 x Nema 24 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
- 1 x Dual Shaft Nema 24 Bipolar 4Nm (566 oz.in) 60x60x100mm 8 Wires

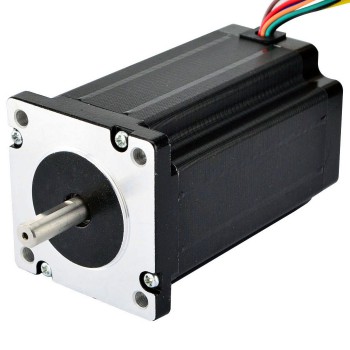

Motor Specification
- Manufacturer Part Number: 24HS39-3008D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque(Bipolar): 4Nm(566oz.in)
- Holding Torque(Unipolar): 2.8Nm(397oz.in)
- Rated Current/phase(Bipolar Parallel): 4.24A
- Rated Current/phase(Bipolar Serial): 2.12A
- Rated Current/phase(Unipolar): 3A
- Phase Resistance(Bipolar Parallel): 0.7ohms
- Phase Resistance(Bipolar Serial): 2.8ohms
- Phase Resistance(Unipolar): 1.4ohms
- Inductance(Bipolar Parallel): 3mH ± 20%(1KHz)
- Inductance(Bipolar Serial): 12mH ± 20%(1KHz)
- Inductance(Unipolar): 3mH ± 20%(1KHz)
- Frame Size: 60 x 60mm
- Body Length: 100mm
- Shaft Diameter: Φ8mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 1.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|

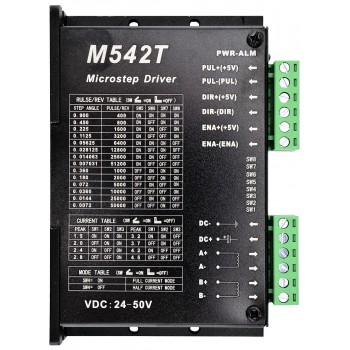

Driver Specification
- High performance, cost-effective
- Input Voltage: +24~50VDC (Typical 36VDC)
- Output Peak Current: 1.5~4.5A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase and 4-phase motors
- Short-voltage, over-voltage, over-current protections
Resources
- Motor Datasheet: 24HS39-3008D.pdf
- Motor Torque Curve: 24HS39-3008D_Torque_Curve.pdf
- Driver Manual: M542T.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 100 |
| Holding Torque (Ncm) | 400 |
| Holding Torque (oz.in) | 566.4 |
| Inductance(mH) | 3 |
| Lead Length(mm) | 400 |
| Motor Nema Size | Nema 24 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.7 |
| Rated Current (A) | 4.24 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 24 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 24 - 50 |
| Output Current(A) | 1.5 - 4.5 |
| Microstep(Steps/rev.) | 400 - 51200 |
| Max. Pulse Input(kHZ) | 300 |
| Pulse Width(μs) | 1.5 |
| Physical Specification | |
| Weight(g) | 2150 |
