1 Axis Stepper CNC Kit 22.0Nm(3115oz.in) Nema 42 Stepper Motor & Driver

1 Axis Stepper CNC Kit 22.0Nm(3115oz.in) Nema 42 Stepper Motor & Driver
NO.:1-DM2282-42HS59
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$313.27
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $297.61 5%
5 $291.34 7%
10 $281.94 10%
50 $266.28 15%
Add To Cart

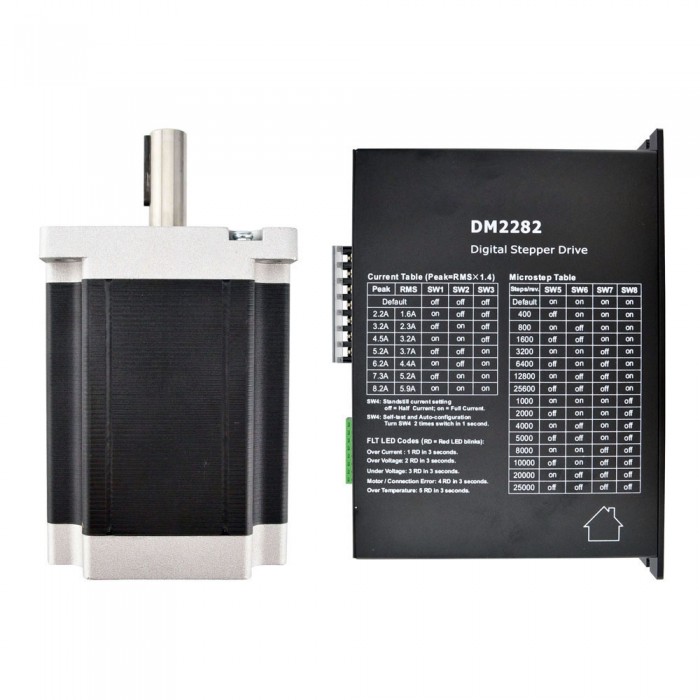

This CNC kit included:

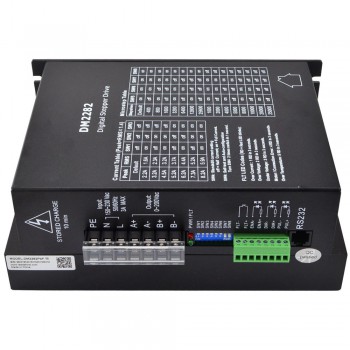

  • 1 x Leadshine DM2282 Digital Stepper Motor Drive 80-220 VAC with 0.5-8.2A

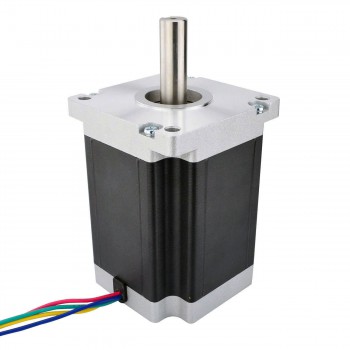

  • 1 x Nema 42 CNC Stepper Motor Bipolar 30Nm (4248oz.in) 8A 110x201mm 4 Wires

Motor Specification

  • Manufacturer Part Number: 42HS59-6004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 22Nm(3115oz.in)
  • Rated Current/phase: 6A
  • Voltage: 4.8V
  • Phase Resistance: 0.8ohms
  • Inductance: 14mH ± 20%(1KHz)
  • Frame Size: 110 x 110mm
  • Body Length: 150mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 55.37mm
  • Key-way Length: 35mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movemen
  • Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Microstep resolutions programmable, from full-step to 102,400. It can also be set via DIP switches.
  • Soft-start with no "jump" when powered on
  • Supply voltage up to +220 VAC
  • Output current programmable, from 0.5A to 8.2A. It can also be set via DIP switches.
  • Maximum frequency: 200KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction (Reduction rate can be software configured)
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Over-voltage, Under-voltage, over-current, phase-error protections
