1 Axis Stepper Kit 1.9Nm(269oz.in) Nema 23 Stepper Motor & Driver
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$53.48

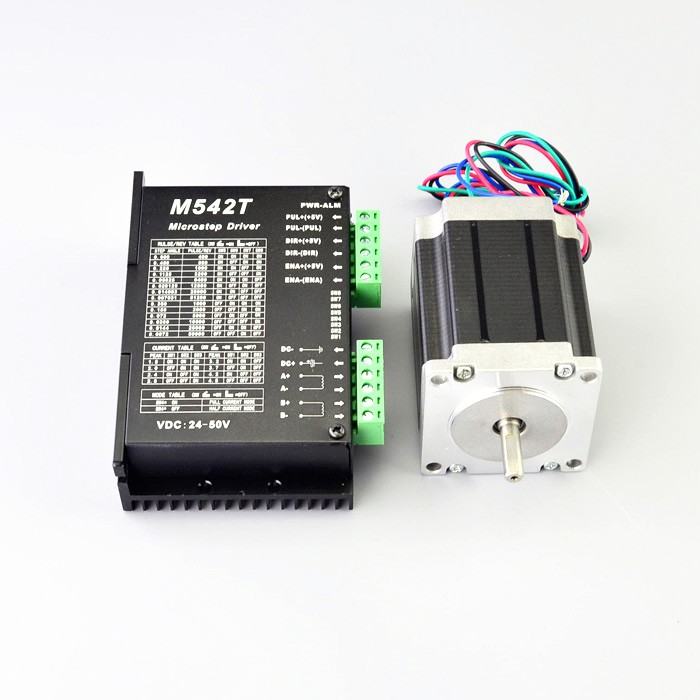

This CNC kit included:
- 1 x Nema 23 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
- 1 x Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires

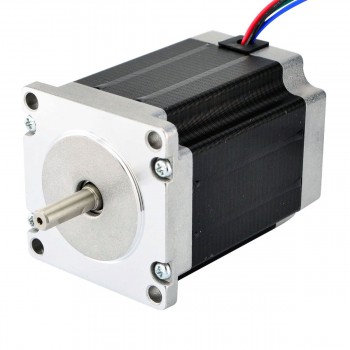

Motor Specification
- Manufacturer Part Number: 23HS30-2804S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 1.9Nm(269oz.in)
- Rated Current/phase: 2.8A
- Voltage: 3.2V
- Phase Resistance: 1.13ohms
- Inductance: 5.4mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 76mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|

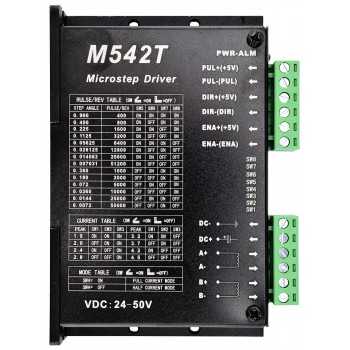

Driver Specification
- High performance, cost-effective
- Input Voltage: +24~50VDC (Typical 36VDC)
- Output Peak Current: 1.5~4.5A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase and 4-phase motors
- Short-voltage, over-voltage, over-current protections
Resources
- Full Datasheet: 23HS30-2804S.pdf
- Torque Curve: 23HS30-2804S_Torque_Curve.pdf
- Driver Manual: M542T.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Body Length(mm) | 76 |
| Holding Torque (Ncm) | 190 |
| Holding Torque (oz.in) | 269 |
| Inductance(mH) | 5.4 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.13 |
| Rated Current (A) | 2.8 |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 24 - 50 |
| Output Current(A) | 1.5 - 4.5 |
| Microstep(Steps/rev.) | 400 - 51200 |
| Max. Pulse Input(kHZ) | 300 |
| Pulse Width(μs) | 1.5 |
| Physical Specification | |
| Weight(g) | 1550 |
