1 Axis Stepper Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver

1 Axis Stepper Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver
NO.:1-M542T-23HS45
Review: Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$60.43
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $57.41 5%
10 $56.20 7%
50 $54.39 10%
100 $51.37 15%
Add To Cart

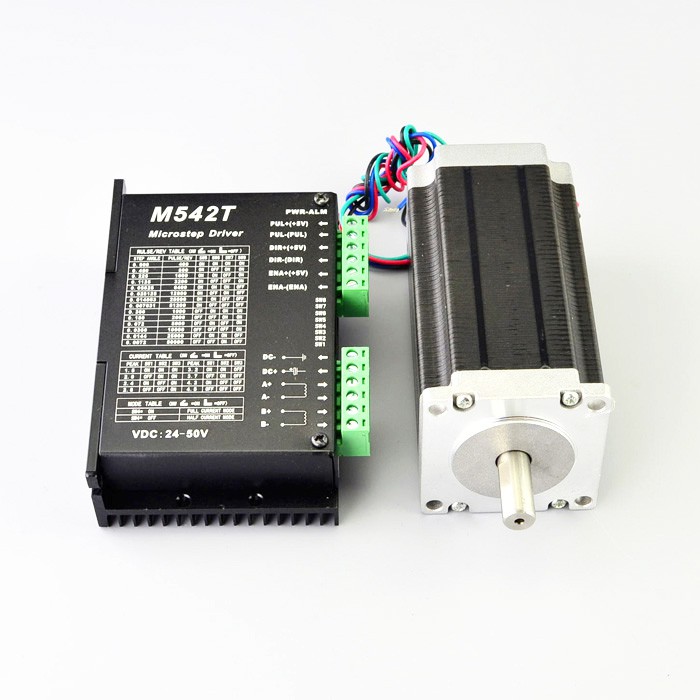

This CNC kit included:

  • 1 x Nema 23 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
  • 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor

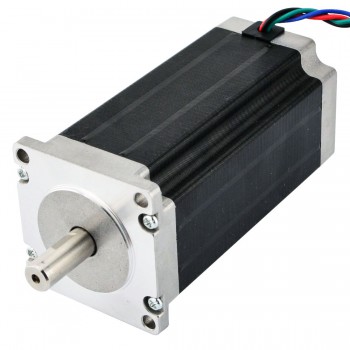

Motor Specification

  • Manufacturer Part Number: 23HS45-4204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Voltage: 3.78V
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.8kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

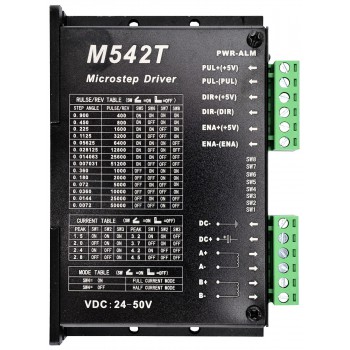

Driver Specification

  • High performance, cost-effective
  • Input Voltage: +24~50VDC (Typical 36VDC)
  • Output Peak Current: 1.5~4.5A
  • Self-adjustment technology
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Short-voltage, over-voltage, over-current protections

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Kit 13.0Nm(1841oz.in) Nema 34 Stepper Motor & Driver
Next: 1 Axis Stepper Kit 3.1Nm(439oz.in) Nema 24 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 113
Holding Torque (Ncm) 300
Holding Torque (oz.in) 424.8
Inductance(mH) 3.8
Lead Length(mm) 400
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 4.2
Shaft Diameter(mm) 10
Shaft Length(mm) 24
Stepper Driver Specification
Driving Voltage(V) 24 - 50
Output Current(A) 1.5 - 4.5
Microstep(Steps/rev.) 400 - 51200
Max. Pulse Input(kHZ) 300
Pulse Width(μs) 1.5
Physical Specification
Weight(g) 2250
