1 Axis Stepper Motor Kit 3.1Nm(439oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver

NO.:1-M542T-24HS34
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$56.57

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$53.74	5%
10	$52.61	7%
50	$50.91	10%
100	$49.22	13%

Description Specification Custom Options Review

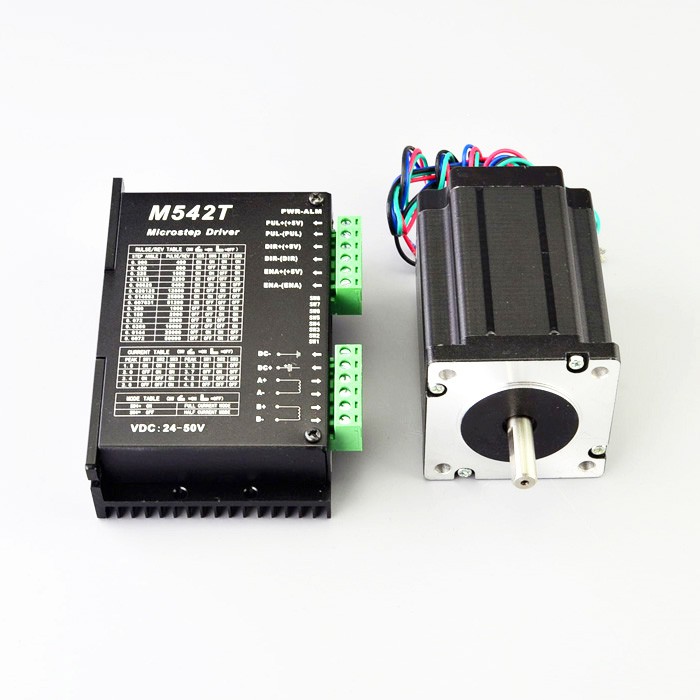

This CNC kit included:

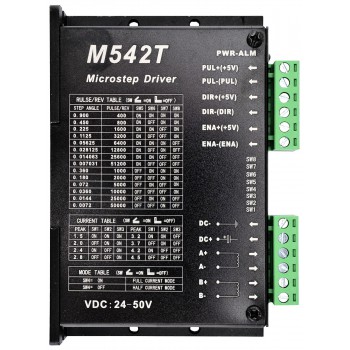

1 x Nema 23 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
1 x Dual Shaft Nema 24 Bipolar 3.1Nm (439 oz.in) 3.5A 60x60x88mm 4 Wires

Motor Specification

Manufacturer Part Number: 24HS34-3504D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 3.1Nm(439oz.in)
Rated Current/phase: 3.5A
Voltage: 3.85V
Phase Resistance: 1.1ohms
Inductance: 5.6mH ± 20%(1KHz)
Frame Size: 60 x 60mm
Body Length: 88mm
Shaft Diameter: Φ8mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 600mm
Weight: 1.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Driver Specification

High performance, cost-effective
Input Voltage: +24~50VDC (Typical 36VDC)
Output Peak Current: 1.5~4.5A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 300 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
Suitable for 2-phase and 4-phase motors
Short-voltage, over-voltage, over-current protections

Resources

Motor Datasheet: 24HS34-3504D.pdf
Motor Torque Curve: 24HS34-3504D_Torque_Curve.pdf
Driver Manual: M542T.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Motor Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
Next: 1 Axis Stepper Motor Kit 4.5Nm(637oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver

Motor Specification
Step Angle(°)	1.8
Body Length(mm)	88
Holding Torque (Ncm)	310
Holding Torque (oz.in)	439
Inductance(mH)	5.6
Lead Length(mm)	600
Motor Nema Size	Nema 24
No. of Lead	4
Phase Resistance(ohm)	1.1
Rated Current (A)	3.5
Shaft Diameter(mm)	8
Shaft Length(mm)	24
Stepper Driver Specification
Driving Voltage(V)	24 - 50
Output Current(A)	1.5 - 4.5
Microstep(Steps/rev.)	400 - 51200
Max. Pulse Input(kHZ)	300
Pulse Width(μs)	1.5
Physical Specification
Weight(g)	1900
