3 Axis 3.1Nm(439oz.in) Nema 24 Stepper Motor & Driver & Power Supply

NO.:SKU:3-M542T-24HS34
Review: Post a review
Latest price:$233.13
Buy It Now:$179.33
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - Max
$166.60 $159.41 $149.44
Add To Cart

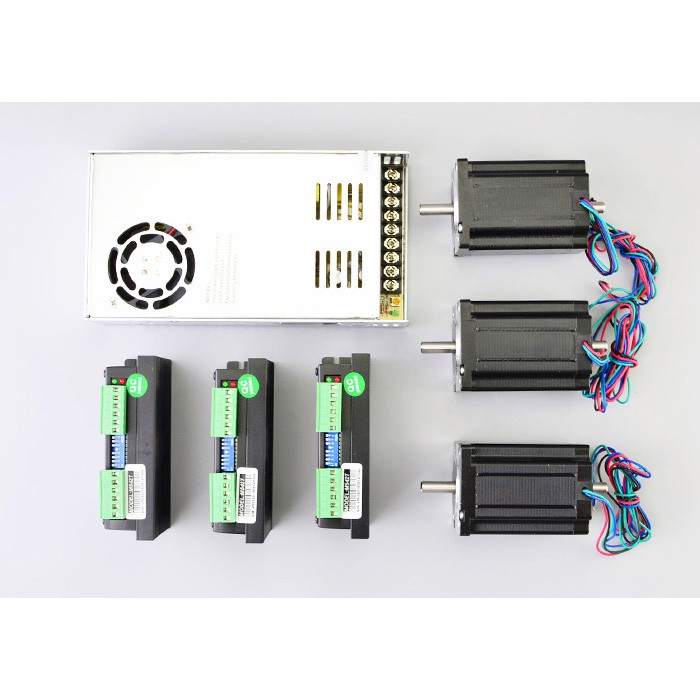

This CNC kit included:

  • 3 x Nema 23 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
  • 3 x 3.1Nm (439oz.in) of Nema 24 Stepper Motor
  • 1 x 350W 36V 9.7A 115/230V Switching Power Supply

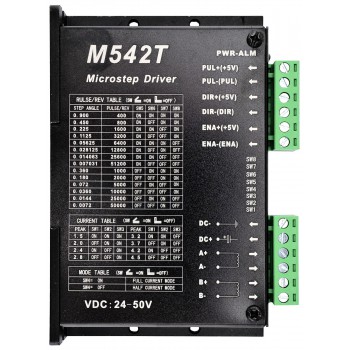

Driver Specification

  • High performance, cost-effective
  • Input Voltage: +24~50VDC (Typical 36VDC)
  • Output Peak Current: 1.5~4.5A
  • Self-adjustment technology
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Short-voltage, over-voltage, over-current protections

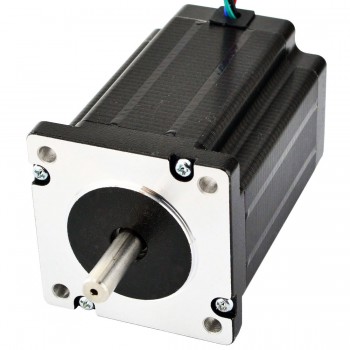

Motor Specification

  • Manufacturer Part Number: 24HS34-3504D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.1Nm(439oz.in)
  • Rated Current/phase: 3.5A
  • Voltage: 3.85V
  • Phase Resistance: 1.1ohms
  • Inductance: 5.6mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 88mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 600mm
  • Weight: 1.34kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

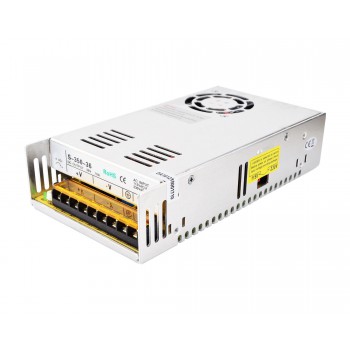

Power Specification

  • 36V DC 9.8A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm (L*W*H)
