4 Axis Stepper Motor Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver & Power Supply

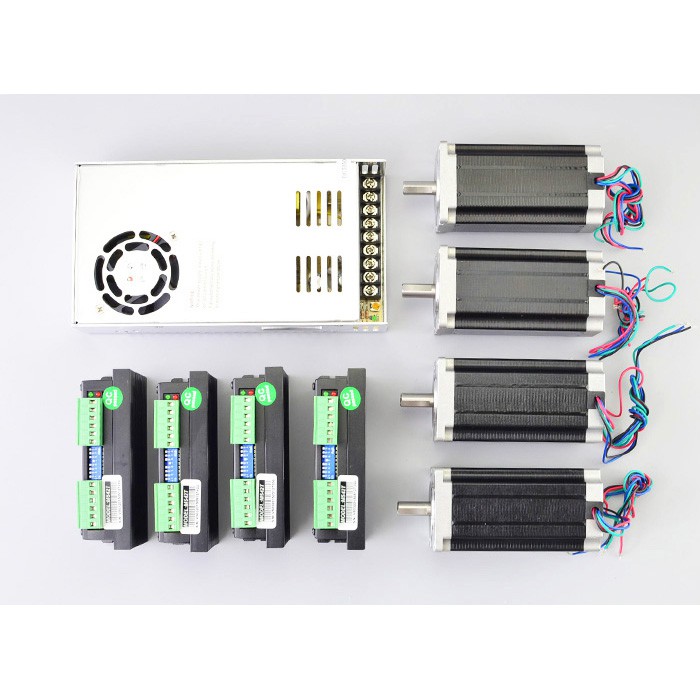

This CNC kit included:

• 4 x Nema 23 Stepper Motor Drive 24-50VDC 1.5A-4.5A 256 Microstep M542T
• 4 x 3Nm (425oz.in) of Nema 23 Stepper Motor
• 1 x 400W 36V 11A 115/230V Switching Power Supply

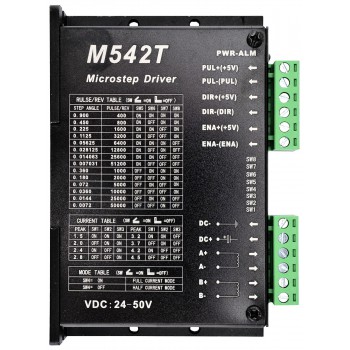

Driver Specification

• High performance, cost-effective
• Input Voltage: +24~50VDC (Typical 36VDC)
• Output Peak Current: 1.5~4.5A
• Self-adjustment technology
• Pure-sinusoidal current control technology
• Pulse input frequency up to 300 KHz
• TTL compatible and optically isolated input
• Automatic idle-current reduction
• 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
• Suitable for 2-phase and 4-phase motors
• Short-voltage, over-voltage, over-current protections

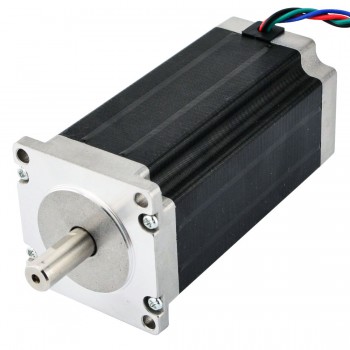

Motor Specification

• Manufacturer Part Number: 23HS45-3504S
• Motor Type: Bipolar Stepper
• Step Angle: 1.8 deg
• Holding Torque: 3Nm(425oz.in)
• Rated Current/phase: 3.5A
• Voltage: 4.2V
• Phase Resistance: 1.2ohms
• Inductance: 5mH ± 20%(1KHz)
• Frame Size: 57 x 57mm
• Body Length: 113mm
• Shaft Diameter: Φ10mm
• Shaft Length: 24mm
• D-cut Length: 20mm
• Number of Leads: 4
• Lead Length: 400mm
• Weight: 1.6kg

Connection

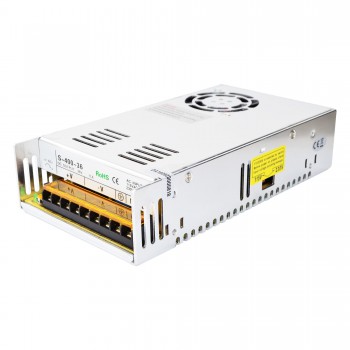

Power Specification

• 36V DC 11A output
• AC input voltage range: 93~132V/176~264VAC
• 115V/230V AC selected by switch
• High efficiency low cost
• Forced air cooling by built-in DC fan
• Low output ripple and yawp
• Over current, over voltage, short circuit and overheat protections
• 215*115*50mm (L*W*H)

Resources

• Motor Datasheet: 23HS45-3504S.pdf
• Motor Torque Curve: 23HS45-3504S_Torque_Curve.pdf
• Driver Manual: M542T.pdf
• Power Supply Manual: S-400-36.pdf
