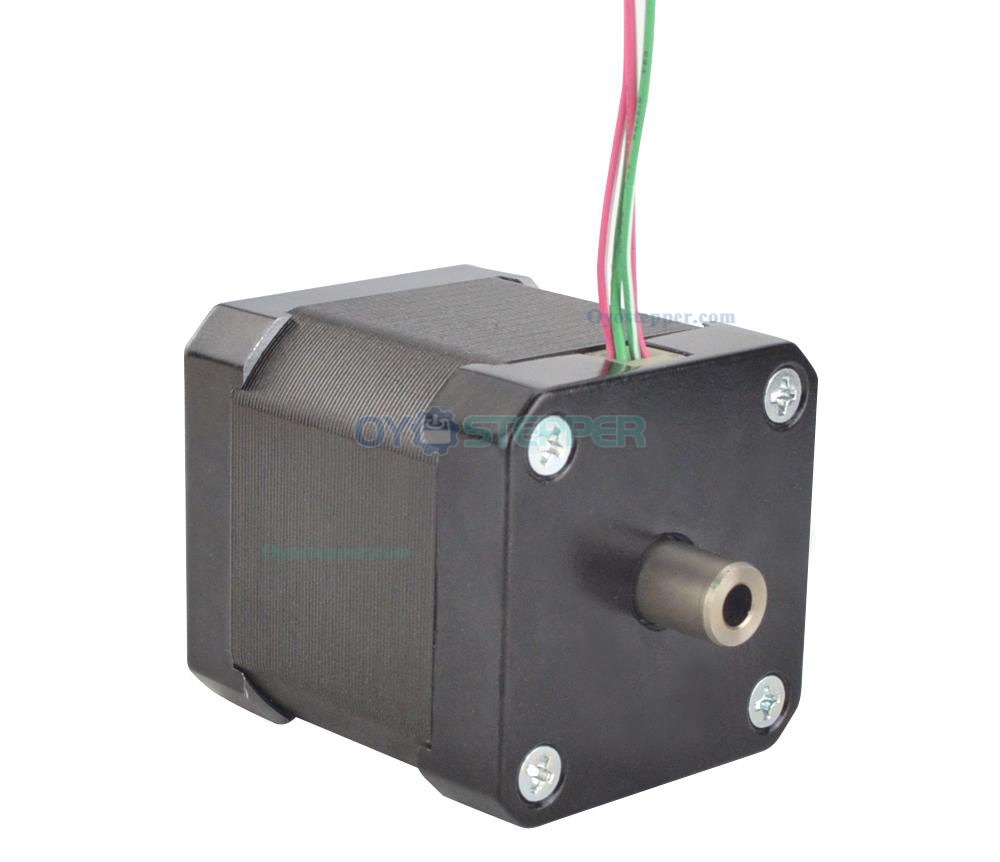

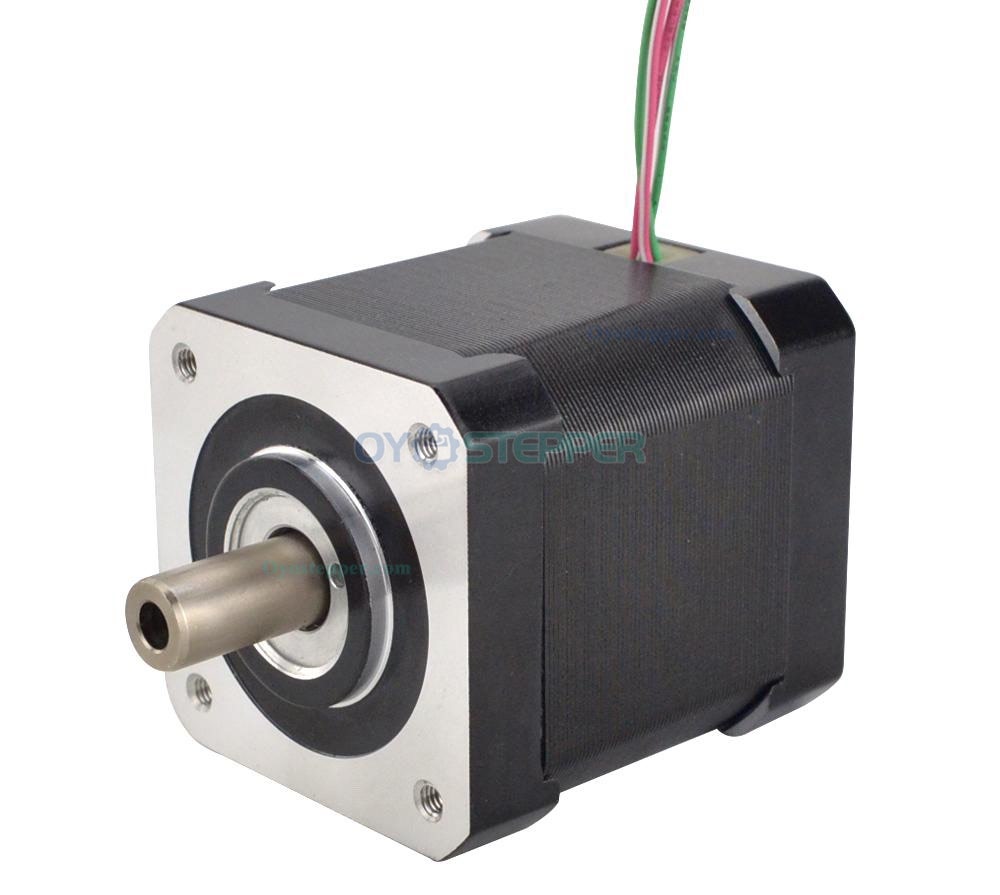

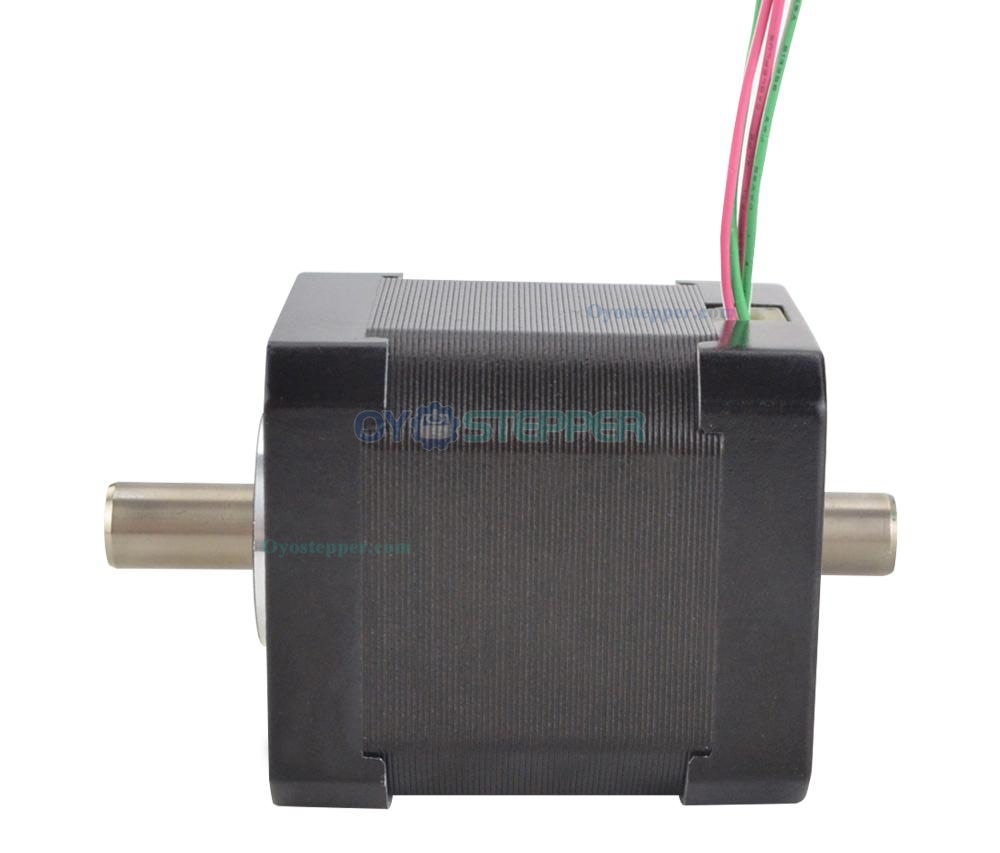

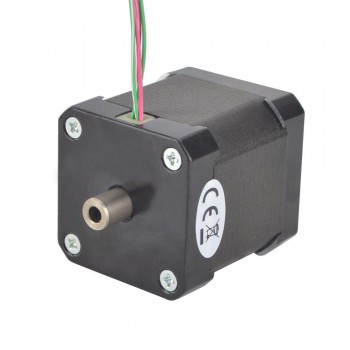

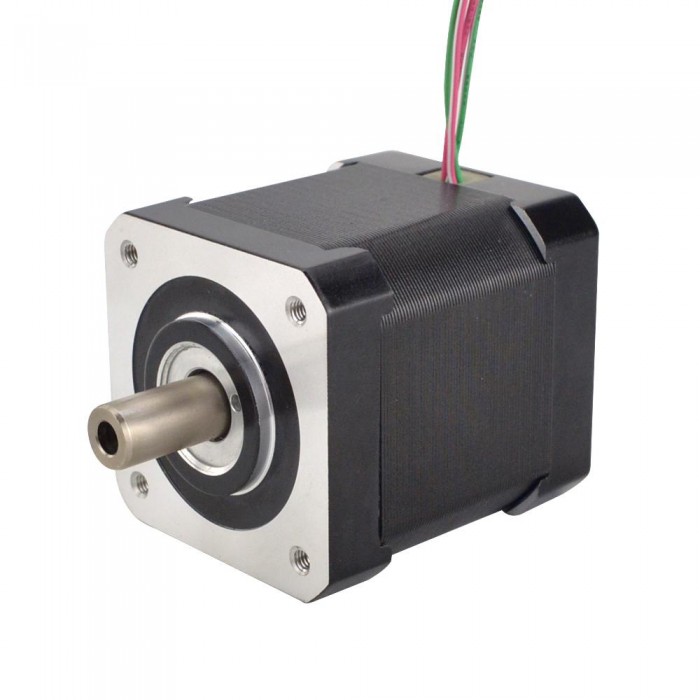

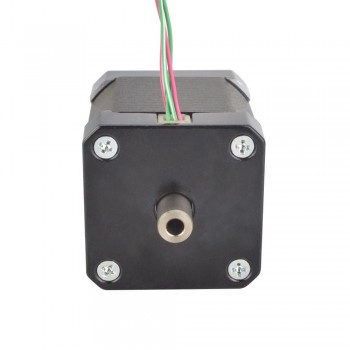

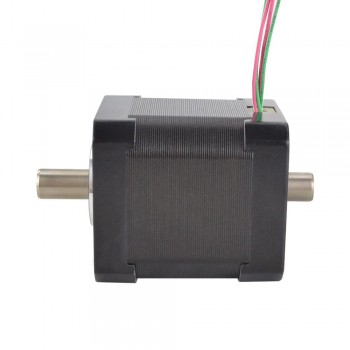

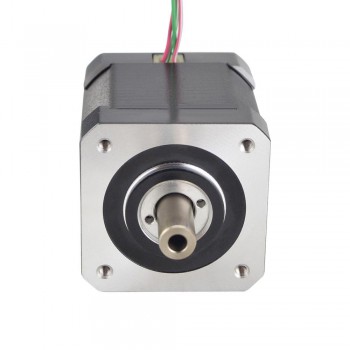

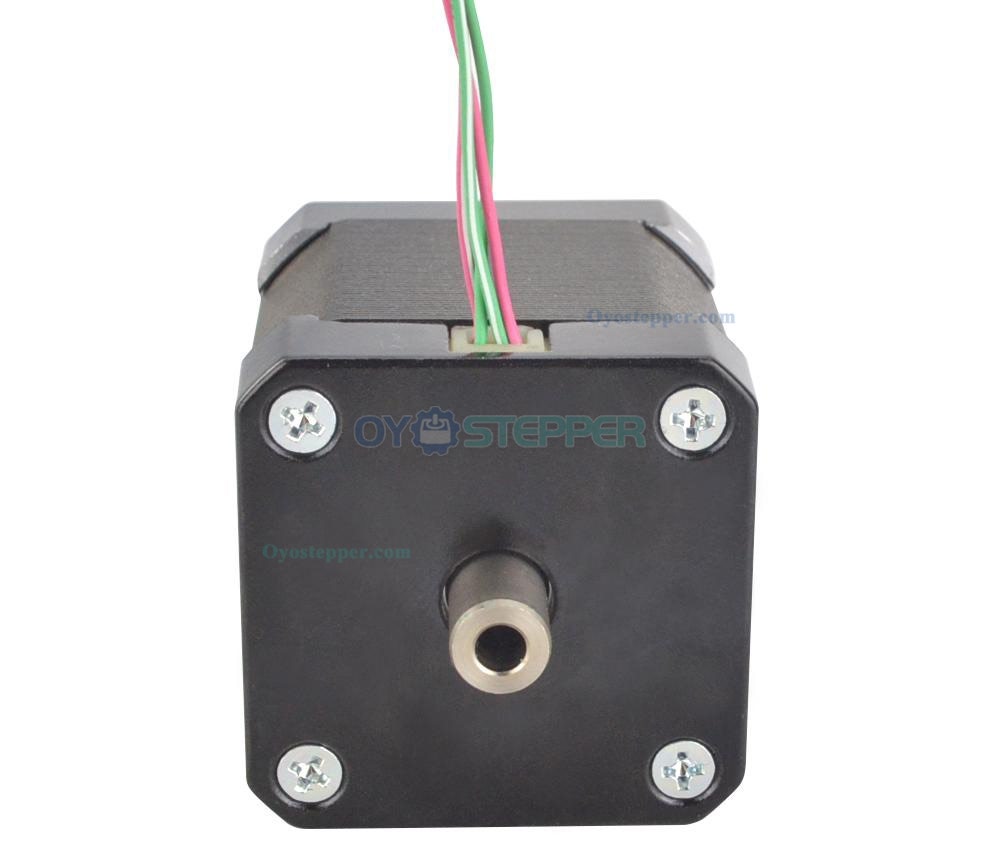

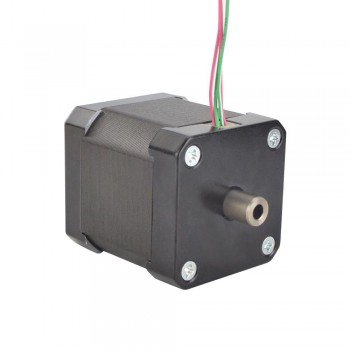

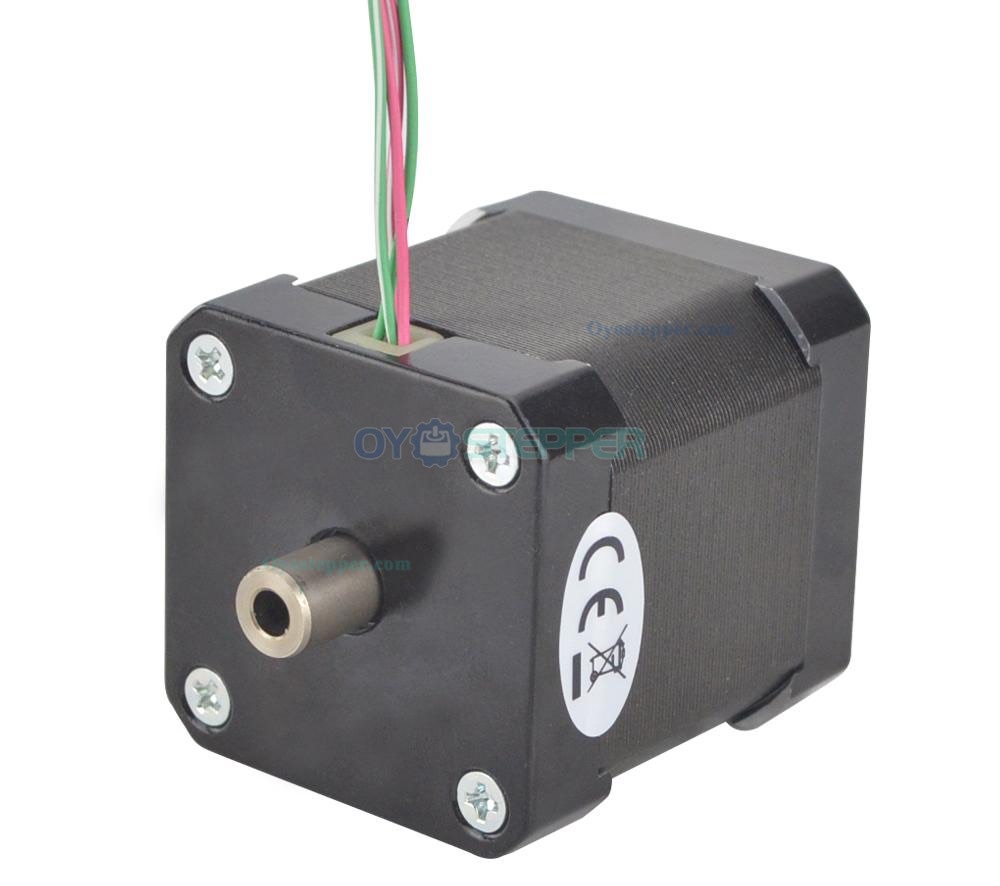

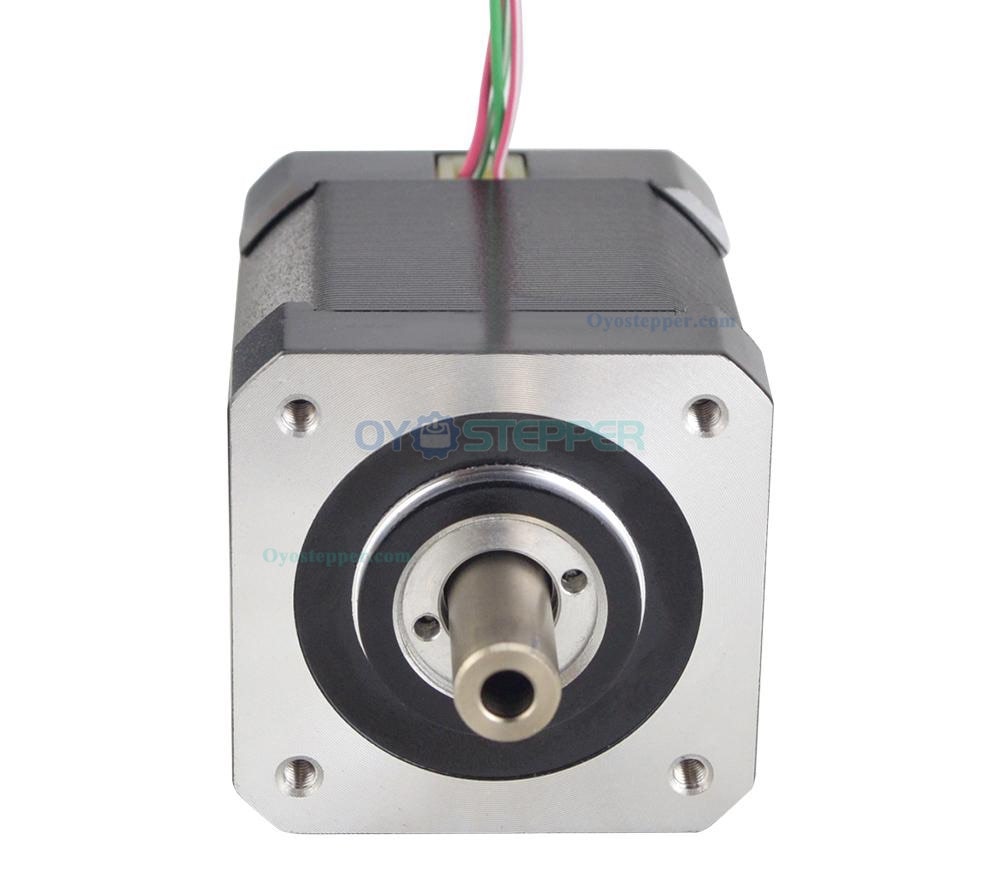

Nema 17 Hollow Shaft Stepper Motor Bipolar 0.36 Nm(42.49oz.in) 1.5A 42x42x47.75mm

NO.:17HS19-1504H
Review: Post a review
Latest price:$29.99
Buy It Now:$19.99
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$19.00 $18.00 $18.00 $18.00
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 17HS19-1504H
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.36 Nm(42.49oz.in)
  • Rated Current/phase: 1.5 A
  • Phase Resistance: 1.56 ohms± 10%
  • Inductance: 1.9 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 47.75 mm
  • Outer Shaft Diameter: Φ8 mm
  • Inner Shaft Diameter: Φ4 mm
  • Front Shaft Length: 16 mm
  • Rear Shaft Length: 9 mm
  • Number of Leads: 4
  • Lead Length: 310 mm
  • Weight: 0.26 kg

Connection

A+
A-
B+
B-
RED
RED/WHI
GRN/WHI
GRN



Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 34 CNC Stepper Motor 12.0Nm (1699.68oz.in) 86x86x150.5mm 4 Wires
Next: Nema 42 CNC Stepper Motor Bipolar 12 Nm(1699.68oz.in) 6.0A 110x116mm 4 Wires
Electrical Specification
Holding Torque (Ncm) 36
Holding Torque (oz.in) 42.49
Inductance(mH) 1.9
Phase Resistance(ohm) 1.56
Rated Current (A) 1.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 47.75
Frame Size(mm) 42 x 42
Lead Length(mm) 310
No. of Lead 4
Shaft Type Hollow
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 400
Motor Specification
Bipolar/Unipolar Bipolar
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
