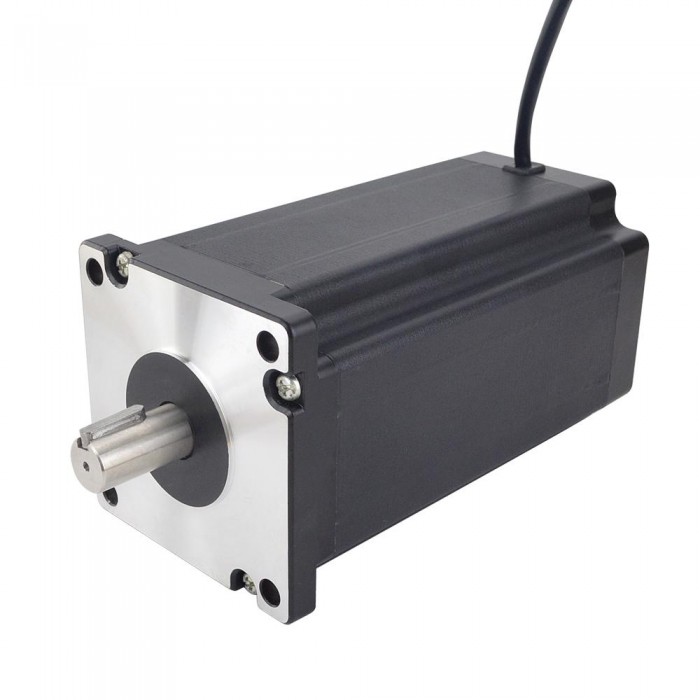

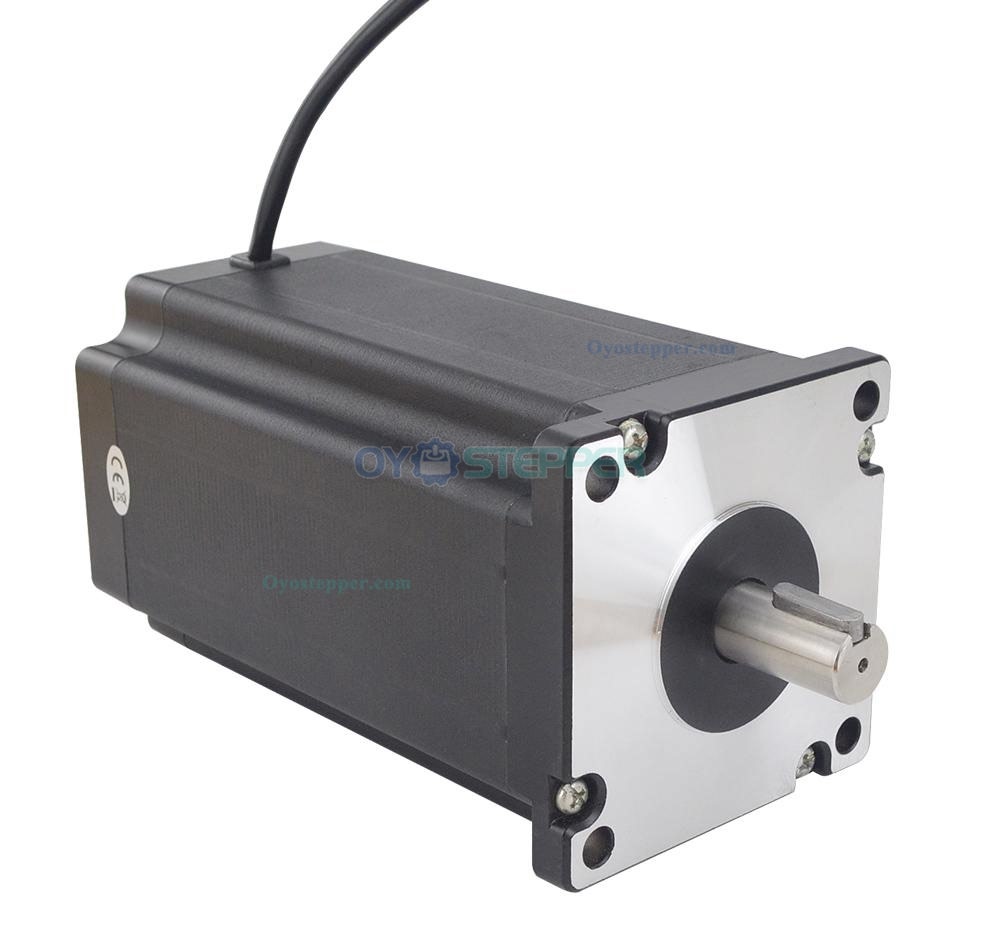

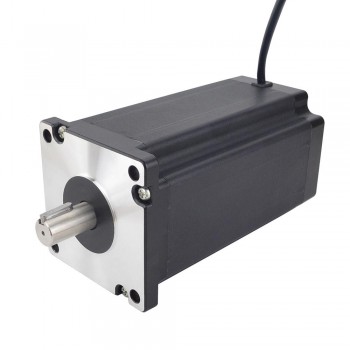

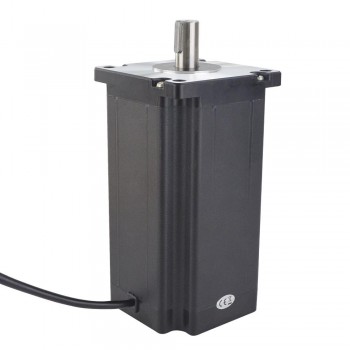

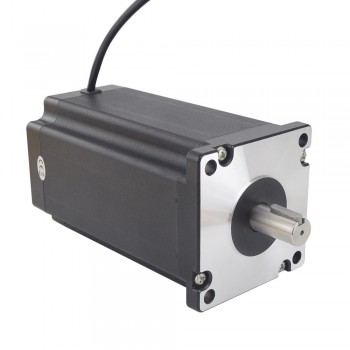

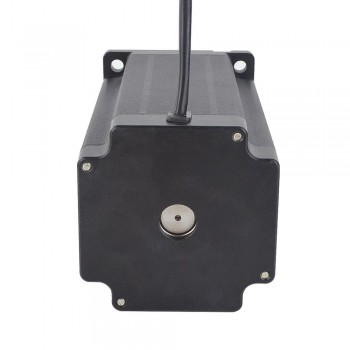

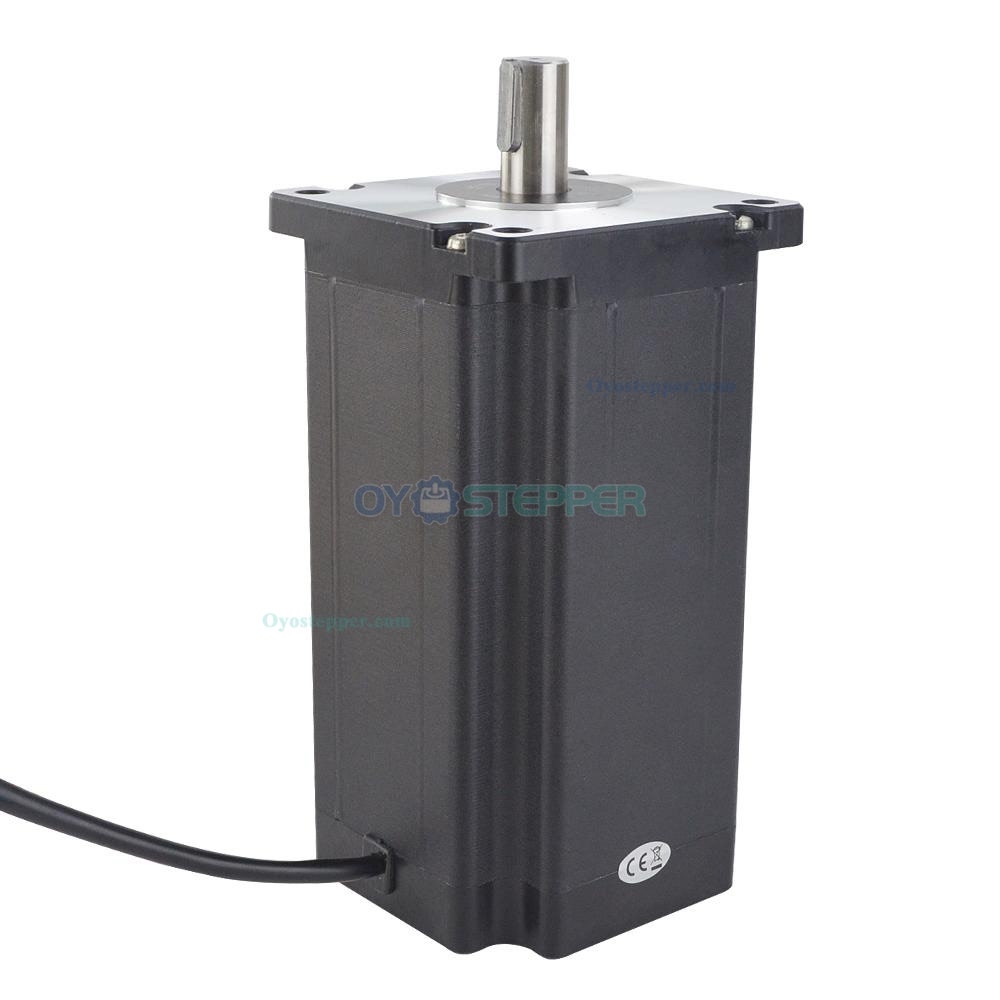

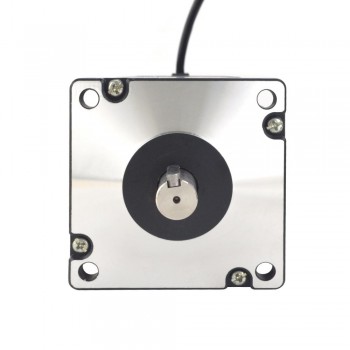

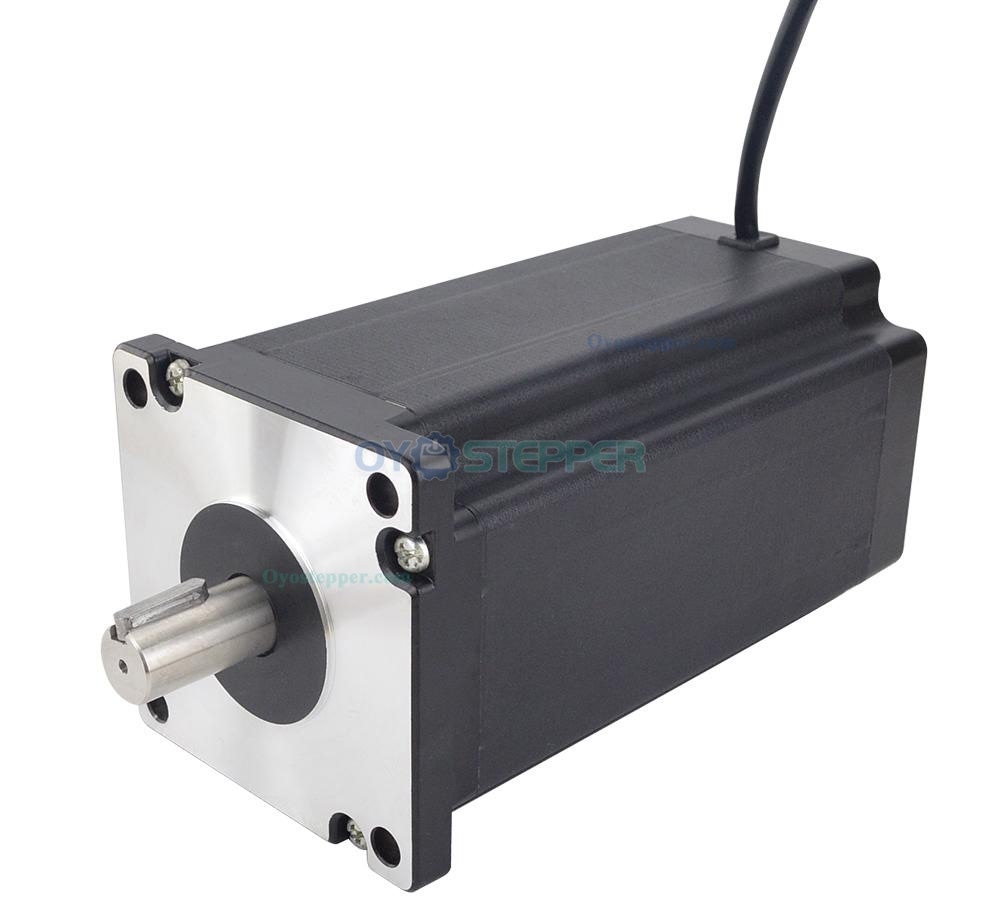

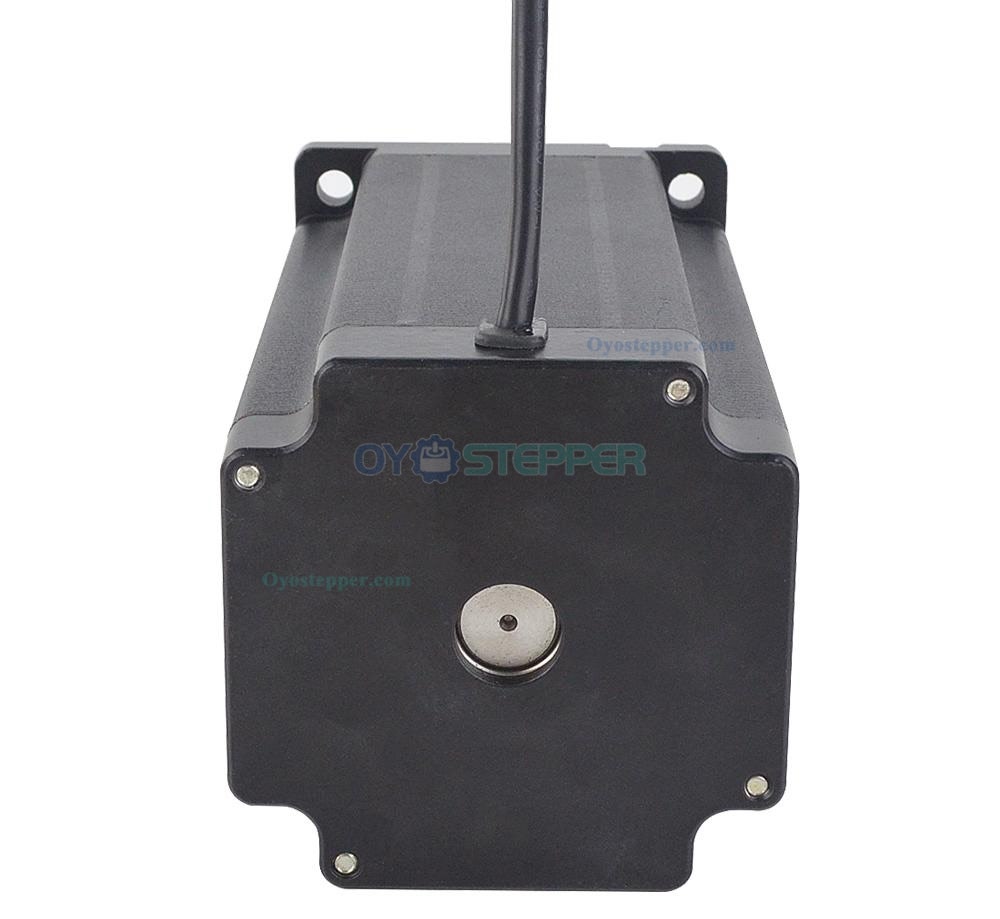

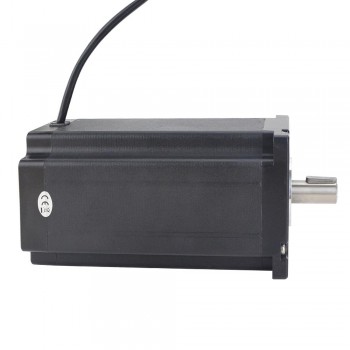

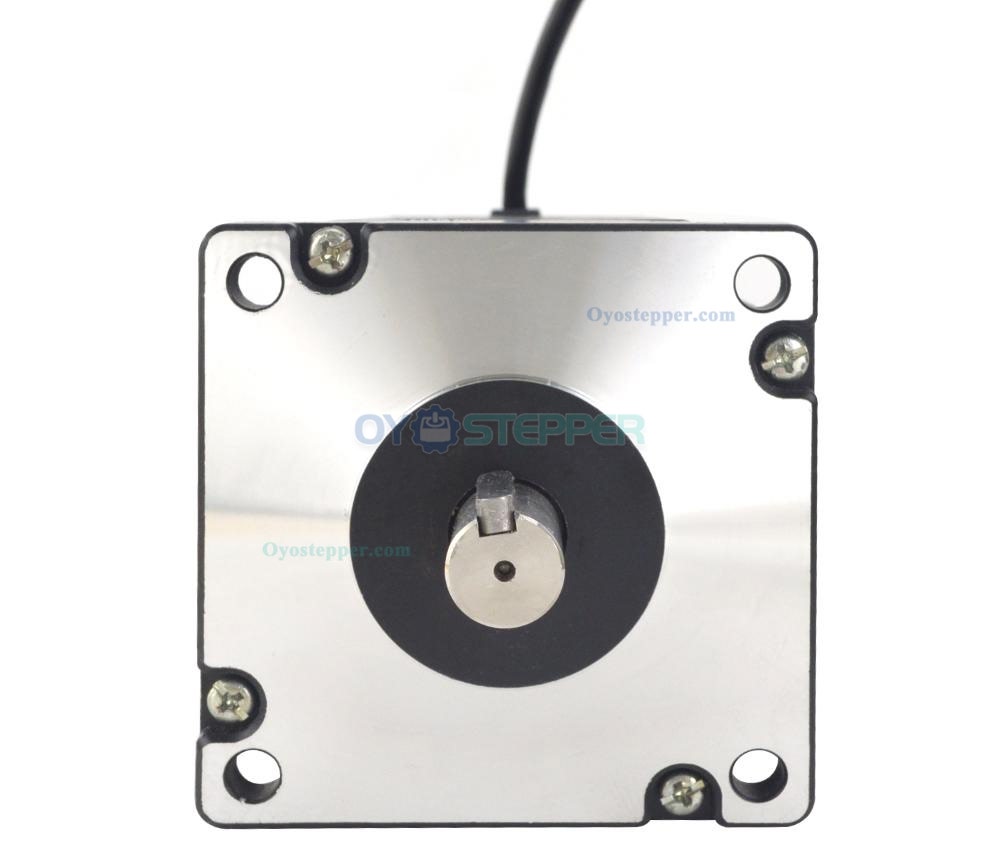

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor
NO.:42HS80-6004S
Review: Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$182.94
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $173.79 5%
5 $170.13 7%
10 $164.65 10%
50 $159.16 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 42HS80-6004S
  • Number of Phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 30 Nm(4249.2oz.in)
  • Rated Current/phase: 6 A
  • Phase Resistance: 1.0 ohms± 10%
  • Inductance: 24 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 110 x 110 mm
  • Body Length: 202 mm
  • Shaft Diameter: Φ19 mm
  • Shaft Length: 40 mm
  • keyway Shaft Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 12.3 kg

Connection

A+
A-
B+
B-
RED
GRN
YEL
BLU



Resources



Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires
Next: 3 Phase Nema 42 Stepper Motor 1.8 Deg 16Nm 5.0A 110x110x162.5mm High Torque Bipolar Stepper Motor
Electrical Specification
Holding Torque (Ncm) 3000
Holding Torque (oz.in) 4249.2
Inductance(mH) 24
Phase Resistance(ohm) 1.0
Rated Current (A) 6
Step Angle(°) 1.8
No. of Phase 2
Physical Specification
Body Length(mm) 202
Frame Size(mm) 110 x 110
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 19
Shaft Length(mm) 40
Weight(g) 12300
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
