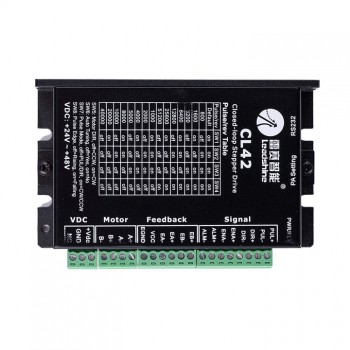

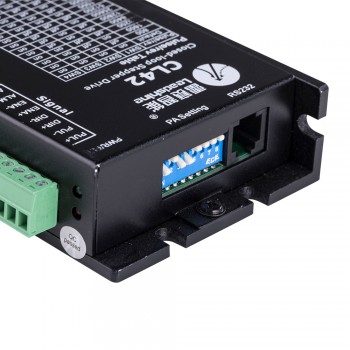

Leadshine CL42 Closed Loop Stepper Driver 0~2.5A 24~48VDC for Nema 17 Stepper Motor

Leadshine CL42 Closed Loop Stepper Driver 0~2.5A 24~48VDC for Nema 17 Stepper Motor

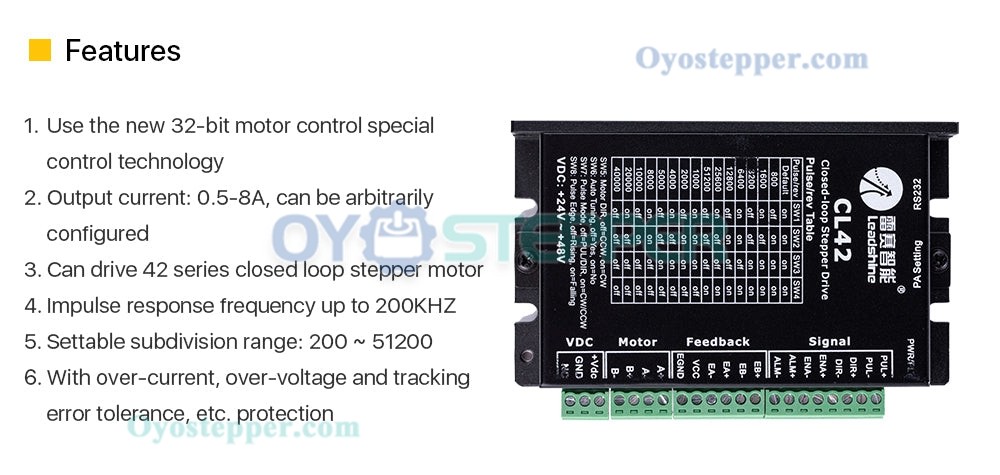

Features:
1.Use the new 32-bit motor control special control technology;
2.Output current: 0.5-8A, can be arbitrarily configured;
3.Can drive 42 series closed loop stepper motor;
4.lmpulse response frequency up to 200KHZ;

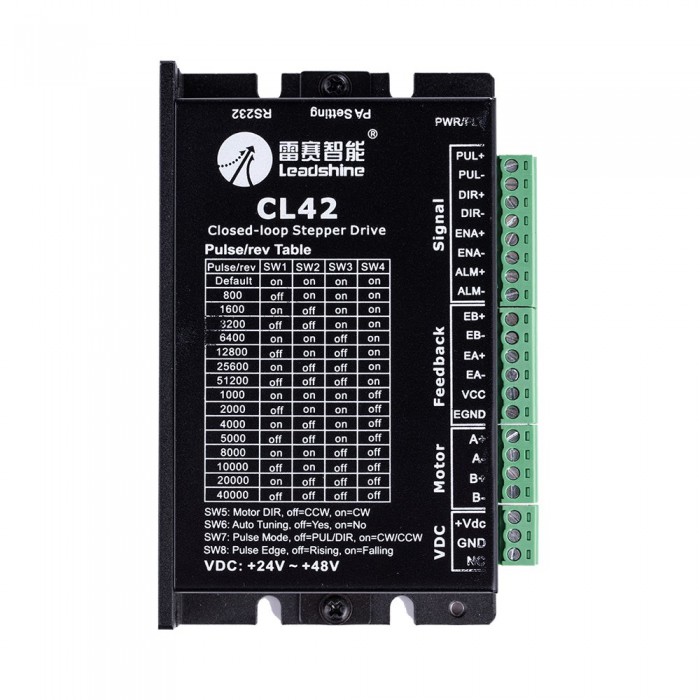

5.Settable subdivision range: 200~51200;
6.With over-current, over-voltage and trackingerror tolerance, etc. protection;

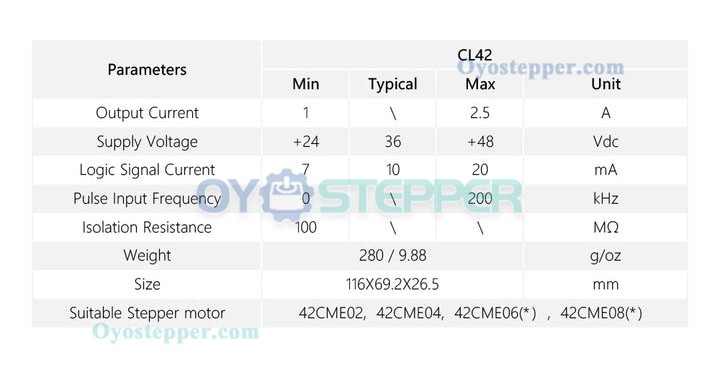

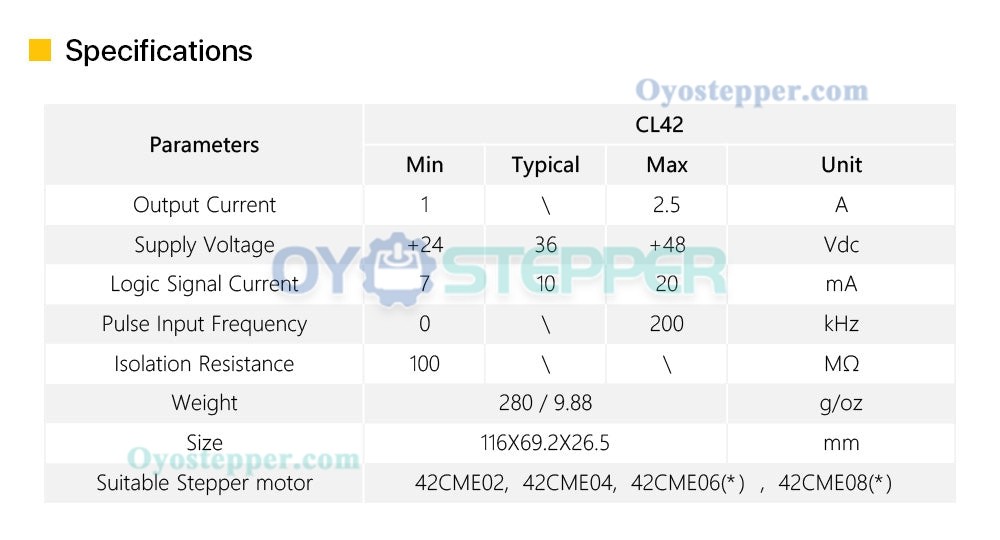

Electrical Specifications:
Output Peak Current: 0~2.5A
Input Voltage: +24~48VDC (Typical 24VDC)
Logic Signal Current: 7~20mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Microstep(Steps/rev.):800~51200
Isolation Resistance: 500MΩ;
Weight: 280g (9.88oz);

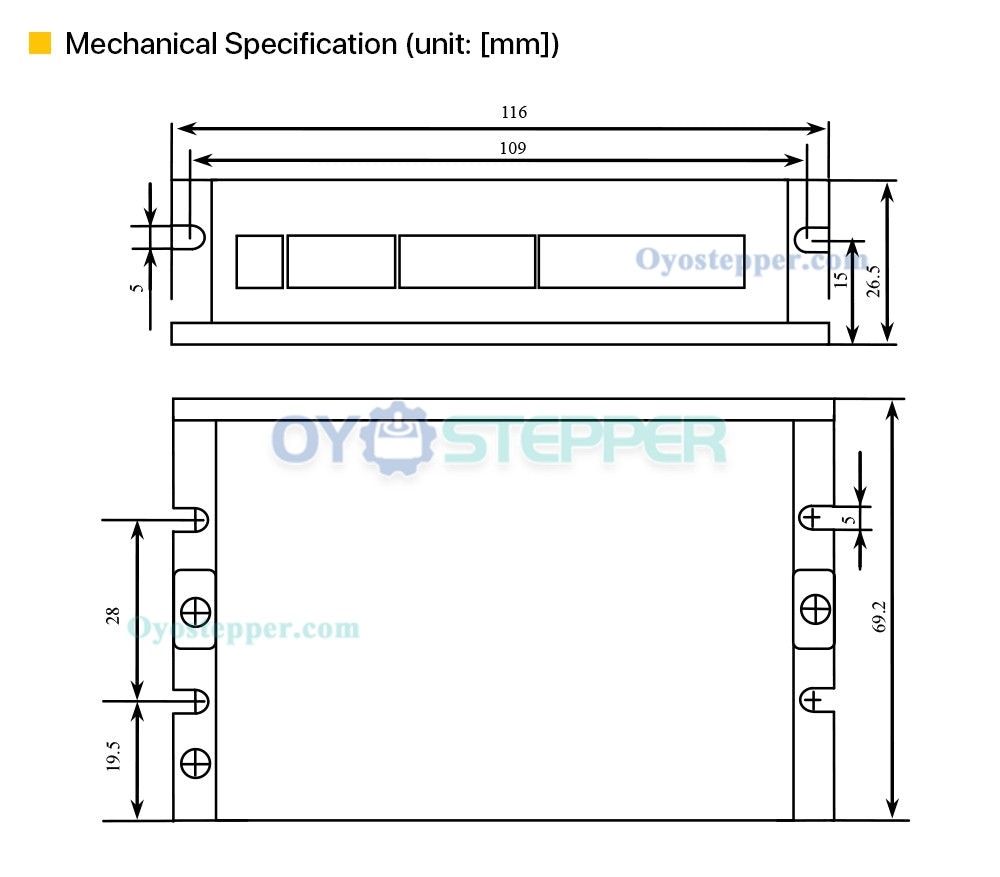

Size:116×69.2×26.5mm;

Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 65℃
Humidity: 40%RH－90%RHOperating Temperature: 0℃ － 50℃
Vibration: 10-50Hz / 0.15mm
Storage Temperature: -20℃ － 65℃;
