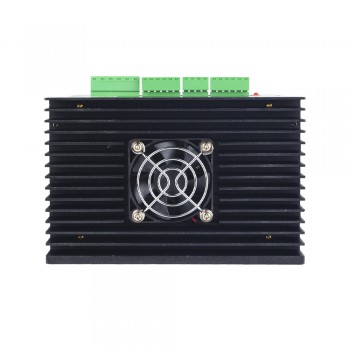

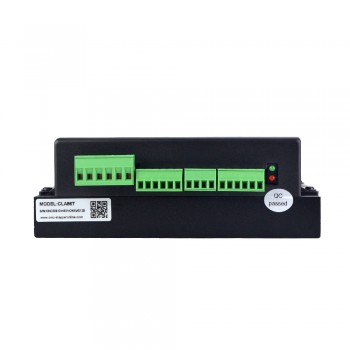

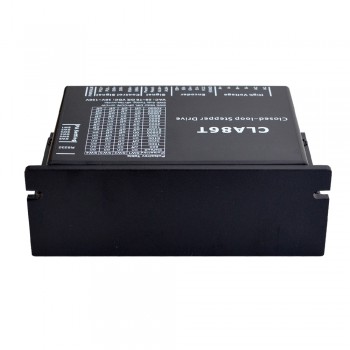

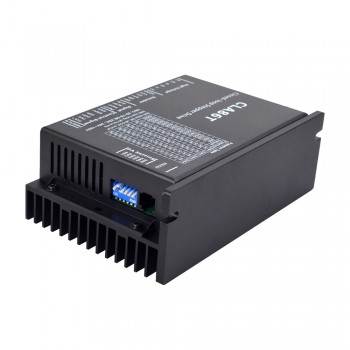

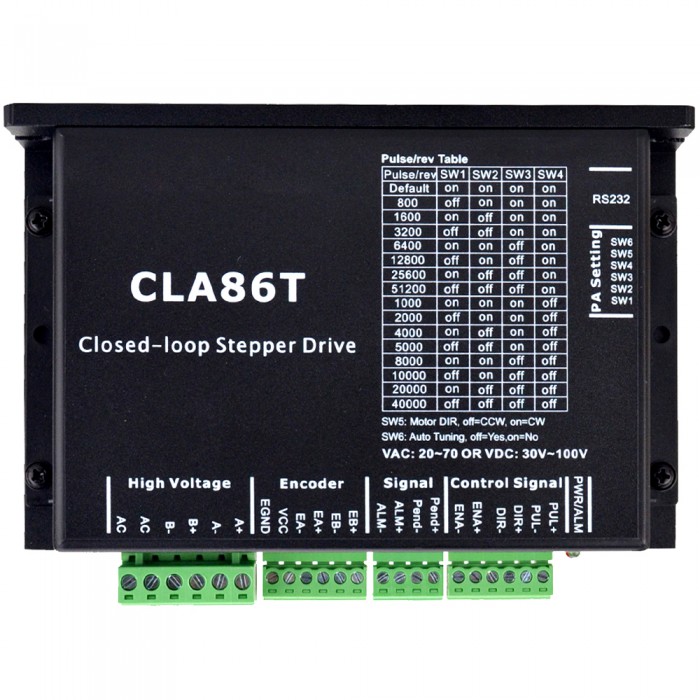

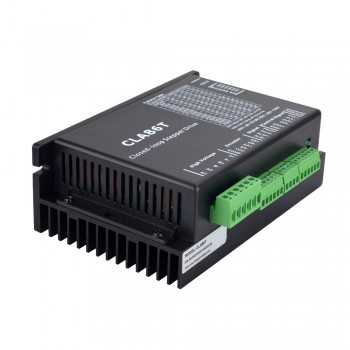

Closed Loop Stepper Driver 0-8.2A 30-100VDC/20-70VAC for Nema 34 Stepper Motor

This Closed-loop Stepper offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Key Features:

• Closed-loop, eliminates loss of synchronization
• Broader operating range - higher torque and higher speed
• Reduced motor heating and more efficient
• Smooth motion and super-low motor noise
• Do not need a high torque margin
• No Tuning and always stable
• Quick response, no delay and almost no settle time
• High torque at starting and low speed, high stiffness at standstill
• Offer servo-like performance at a much lower cost

Electrical Specifications:

• Output Peak Current: 0 - 8.2 A
• Input Voltage: 30 - 100 VDC/20 - 70 VAC
• Logic Signal Current: 7 - 16 mA (Typical 10 mA)
• Pulse Input Frequency: 0 - 200 kHz
• Isolation Resistance: 500 MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0 － 50 ℃
• Humidity: 40% － 90% RH
• Operating Temperature: 70 ℃ MAX
• Vibration: 5.9 m/s2 Max
• Storage Temperature: -20 － 65 ℃
• Weight: Approx.580 g (20.5 oz)

Resources

• Tuning Software: MS12B
• RS232 Cable: RS232-1
• RS232 Adapter Cable to USB 2.0: C003
• Manual: CLA86T.pdf
