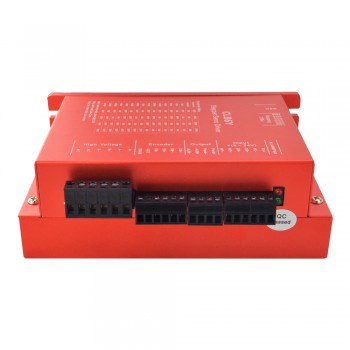

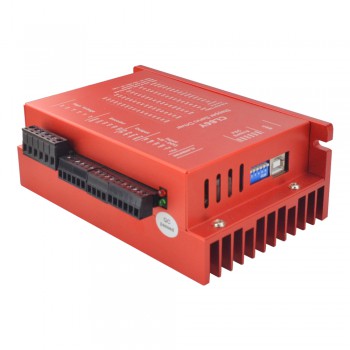

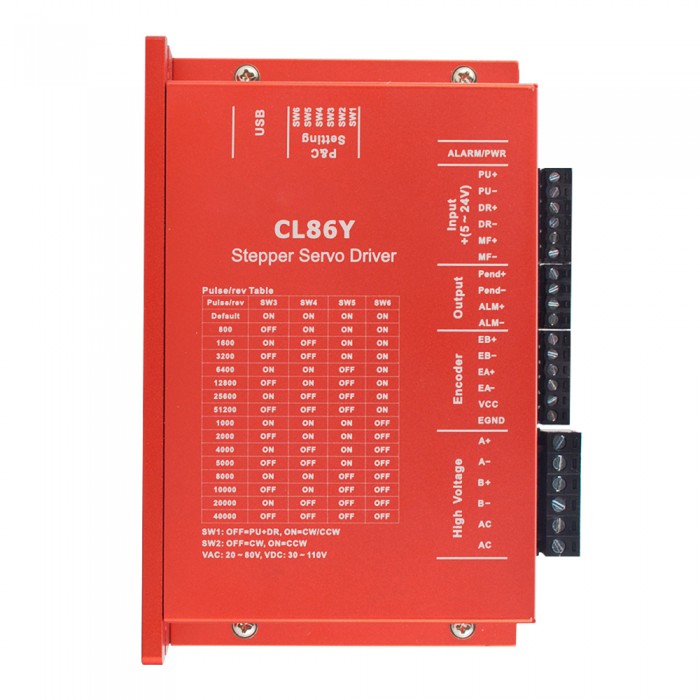

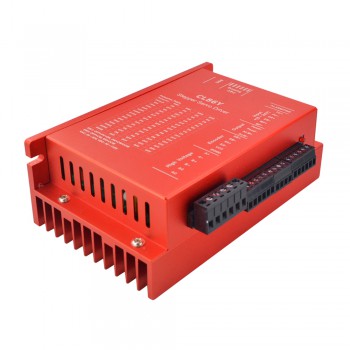

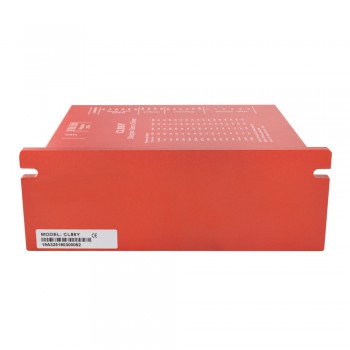

Closed Loop Stepper Driver Y Series 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor

Using a new generation of 32-bit DSP control technology and power angle, vector control technology, the maximum speed can reach more than 3000rpm. And the high-speed torque attenuation is much lower than that of the ordinary open-loop driver, which can greatly improve the high-speed performance and torque utilization rate of the stepping motor, thereby improving the processing efficiency and accuracy of the machine. Load-based current control technology can effectively reduce motor heating and extend motor life. The built-in alarm output signal of the driver is convenient for monitoring and control by the host computer. The position error alarm function ensures the safe operation of the processing equipment.

Key Features:

• A new generation of 32-bit DSP control technology, cost-effective, stable and excellent vibration performance
• Voltage input range: AC20V-80V/DC30~110V, a total of 16 subdivisions.
• The highest impulse response frequency is up to 200KHz.
• The torque attenuation is small and the speed can reach 3000 rpm.
• Built-in in place and alarm output for easy detection and control.
• Intelligently regulates current, reduces vibration, noise and heat, and increases efficiency by 35%.
• With single and double pulse selection function, the factory default is: pulse + direction control.
• Excellent high-speed performance and rigidity, the perfect combination of servo and stepping advantages.

Electrical Specifications:

• Output Peak Current: 0~8.5A（0~6 RMS）
• Input Voltage: 20~80VAC/30~110VDC (Typical 48/60VDC)
• Logic Signal Current: 7~16mA (Typical 10mA)
• Pulse Input Frequency: 0~200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

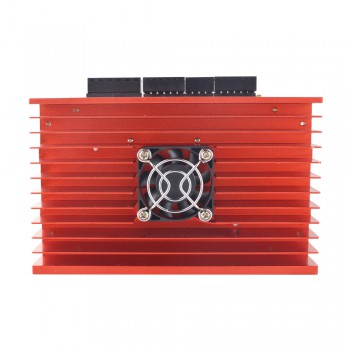

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 50℃
• Vibration: 10-50Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.280g (9.9oz)

Resources

• Tuning Software: Stepper_debugging_software
• Debugger: Y-USB-CL
• Manual: CL86Y.pdf
