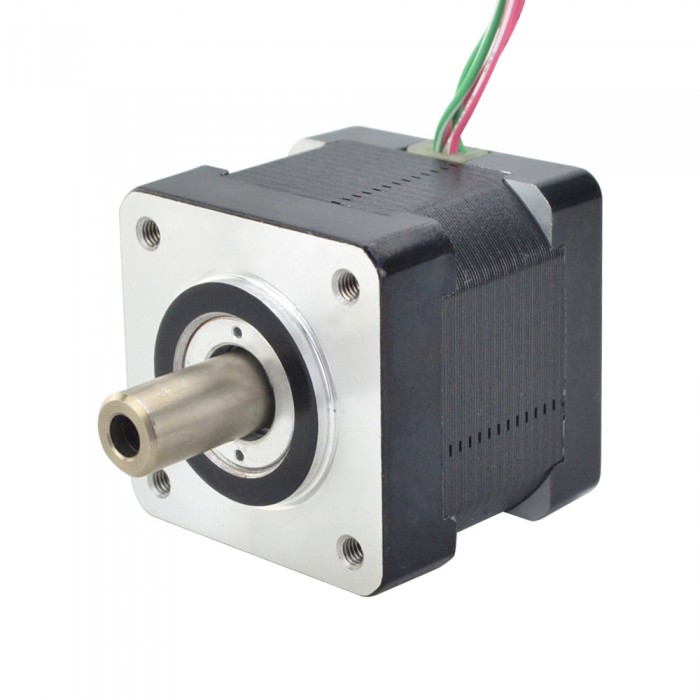

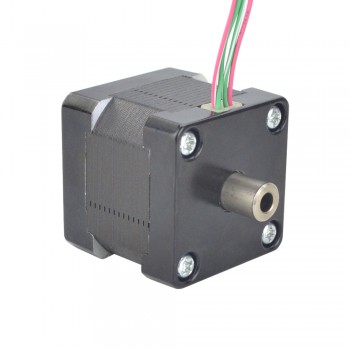

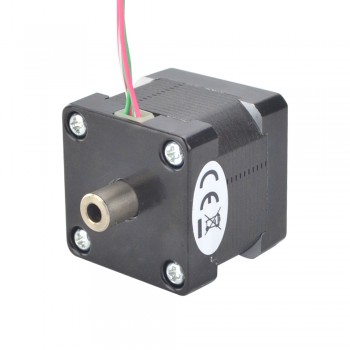

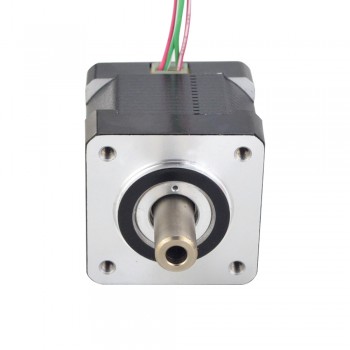

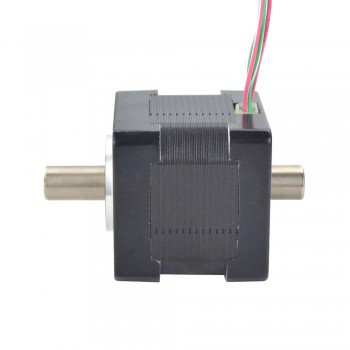

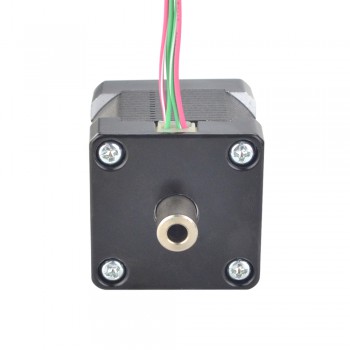

Hollow Dual Shaft Nema 14 Stepper Motor Bipolar 1.8 Deg 16Ncm (22.66oz.in) 1.25A 4 Wires

Hollow Dual Shaft Nema 14 Stepper Motor Bipolar 1.8 Deg 16Ncm (22.66oz.in) 1.25A 4 Wires
NO.:14HS14-1254H
Review: Post a review
Our Price:$20.82
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $19.78 5%
10 $19.36 7%
50 $18.74 10%
100 $18.11 13%
Add To Cart

Electrical Specification

Manufacturer Part Number: 14HS14-1254H

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 0.16 Nm(22.66oz.in)

Rated Current/phase: 1.25 A

Phase Resistance: 1.86 ohms± 10%

Inductance: 2.8 mH ± 20%(1KHz)



Physical Specification

Frame Size: 35 x 35 mm

Body Length: 34.5 mm

Outer Shaft Diameter: Φ8 mm

Inner Shaft Diameter: Φ4 mm

Front Shaft Length: 16 mm

Rear Shaft Length: 9 mm

Number of Leads: 4

Lead Length: 310 mm

Weight: 0.17 kg



Connection

A+
A-
B+
B-
RED
RED/WHI
GRN/WHI
GRN



Resources

Full Datasheet: 14HS14-1254H.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Hollow Shaft Stepper Motor Bipolar 1.8 Deg 7.5Ncm (10.6oz.in) 1.0A Dual Shaft 4 Wires
Next: Hollow Shaft Nema 14 Stepper Motor Bipolar 1.8 Deg 33Ncm (46.74oz.in) 2.0A 35x35x48mm 4 Wires
Physical Specification
Frame Size(mm) 35x35
Body Length(mm) 34.5
Lead Length(mm) 310
No. of Lead 4
Shaft Type Hollow
Weight(g) 170g
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 16
Holding Torque (oz.in) 22.66
Inductance(mH) 2.8
Phase Resistance(ohm) 1.86
Rated Current (A) 1.25
Step Angle(°) 1.8
