Φ36x17.5mm PM Captive Economy Linear Stepper Motor 0.6A Lead 1.22mm/0.047" Travel 5.3mm

Φ36x17.5mm PM Captive Economy Linear Stepper Motor 0.6A Lead 1.22mm/0.047" Travel 5.3mm
NO.:35LN48M01-344
Review: Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$26.48
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $25.16 5%
10 $24.63 7%
50 $23.83 10%
100 $22.51 15%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35LN48M01-344
  • Motor Type: PM Captive Linear Stepper
  • Phase: 2
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.6 A
  • Thrust: 100 N(79 Hz)
  • Phase Resistance: 11 ± 7% ohms(20 ℃)
  • Inductance: 8.2 mH ± 20%
  • IP Protection: IP30
  • Life: 1500000 cycles

Physical Specification

  • Frame Size: Φ36 mm
  • Body Length: 17.5 mm
  • Travel Distance: 5.3 mm(0.209")
  • Lead Screw Diameter: Φ3.56 mm(0.14")
  • Lead/Revolution: 1.22 mm(0.048")
  • Lead/Step: 0.0254 mm(0.001")
  • Number of Leads: 4
  • Weight: 82 g

Connection

A+
A-
B+
B-
Yellow
Red
White
Black



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

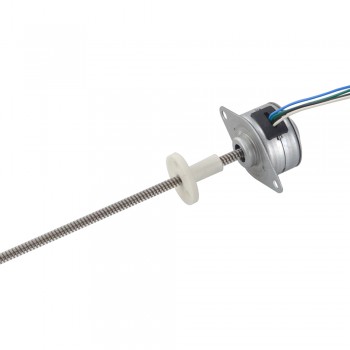

Prev: Φ15x11.1mm PM Captive Economy Linear Stepper Motor 0.167A Lead 0.4mm/0.016" Travel 12mm

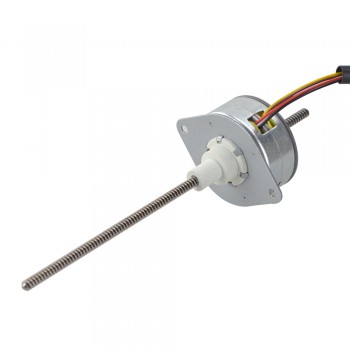

Next: Φ25.2x15mm PM Captive Economy Linear Stepper Motor 0.5A Lead 1.22mm/0.048" Travel 13.5mm
Electrical Specification
Inductance(mH) 8.2
Phase Resistance(ohm) 11
Rated Current (A) 0.6
Step Angle(°) 7.5
Motor Type Captive
No. of Phase 2
Physical Specification
Body Length(mm) 17.5
Frame Size(mm) Φ36
Lead Screw Diameter(mm) Φ3.56
No. of Lead 4
Lead Travel/Revolution(mm) 1.22
Lead Travel/Step(mm) 0.0254
Travel(mm) 5.3
