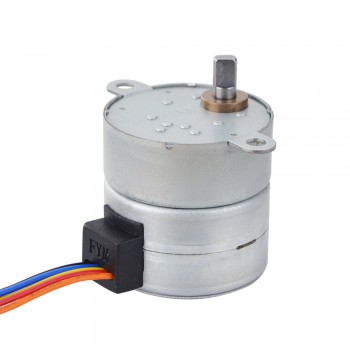

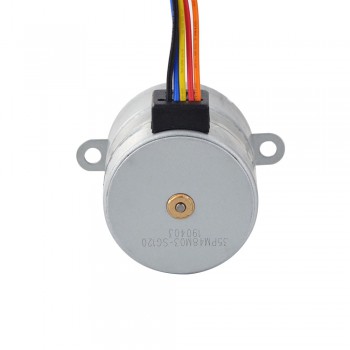

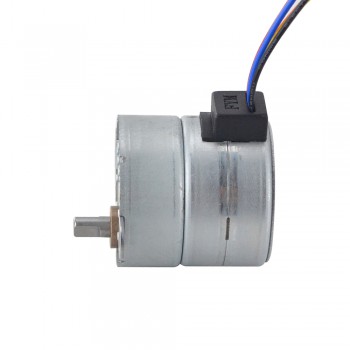

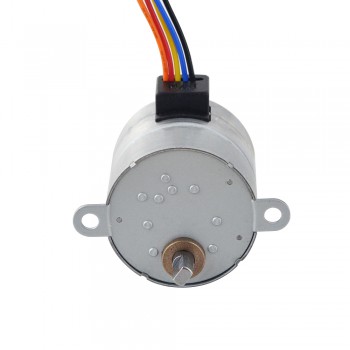

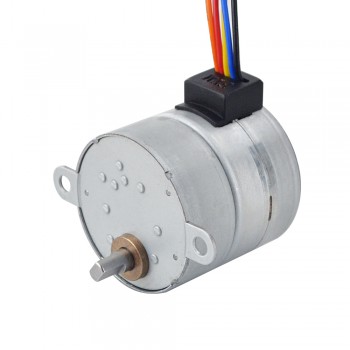

Φ35x35.2mm PM Stepper motor W/Gear Ratio 120:1 Spur gearbox

-14% Φ35x35.2mm PM Stepper motor W/Gear Ratio 120:1 Spur gearbox
NO.:35PM48M03-SG120
Review: Post a review
Buy It Now:$16.20
Promotion price:$13.99
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$14.80 $14.09 $13.38 $12.68
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35PM48M03-SG120
  • Motor Type: PM Stepper
  • Phase: 4
  • Step Angle: 0.0625 deg
  • Rated Current/phase: 0.4 A
  • Holding Torque: 98 Ncm(138.807 oz.in)
  • Phase Resistance: 30 ± 7% ohms(25 ℃)
  • Inductance: 17 mH ± 20%

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 35.2 mm
  • Gearbox Length: 14.5 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 10 mm
  • D-cut Length: 6 mm
  • Gearbox Type: Spur
  • Gear Ratio: 120
  • Number of Leads: 5 with connector PH-6Y
  • Lead Length: 240 mm
  • Weight: 120.9 g

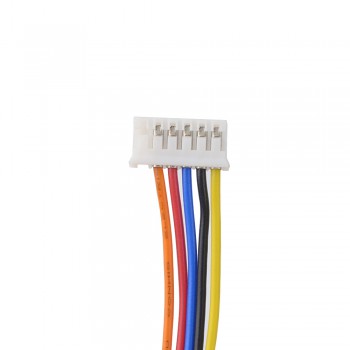

Connection

1
2
3
4
5
Yellow
Black
Blue
Red
Orange



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ35x35.2mm PM Gear Stepper motor W/Gear Ratio 60:1 Spur gearbox
Next: Φ42x38mm PM Geared Stepper motor W/Gear Ratio 50:1 Spur gearbox
Electrical Specification
Holding Torque (oz.in) 138.807
Inductance(mH) 17
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.0625
No. of Phase 4
Holding Torque(mN.m) 980
Gearbox Specification
Gear Ratio 120
Gearbox Length(mm) 14.5
Gearbox Type Spur
Physical Specification
Body Length(mm) 35.2
Frame Size(mm) Φ35
Lead Length(mm) 240
No. of Lead 5
Shaft Diameter(mm) Φ5
Shaft Length(mm) 10
