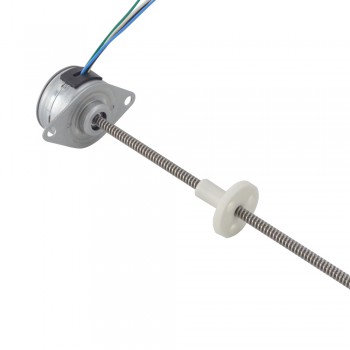

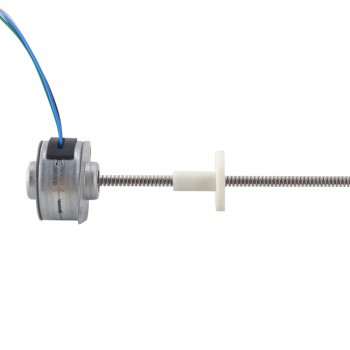

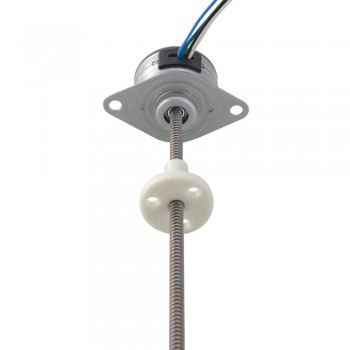

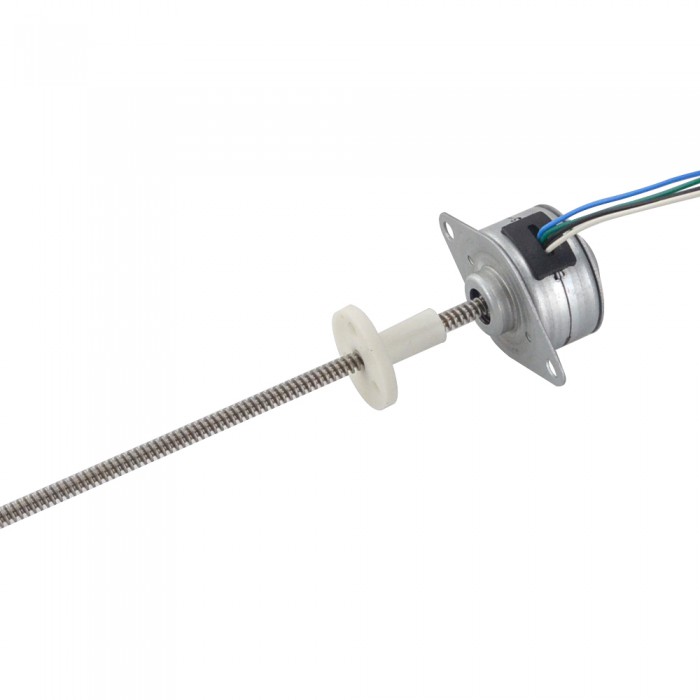

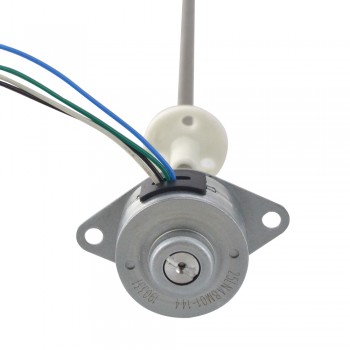

PM External Precision Linear Stepper Motor 7.5 Deg 0.143A Lead 1.22mm/0.047" Lead Screw 174mm Φ25x14.5mm

PM External Precision Linear Stepper Motor 7.5 Deg 0.143A Lead 1.22mm/0.047" Lead Screw 174mm Φ25x14.5mm
NO.:25LN48M01-144
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$30.01
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $28.51 5%
10 $27.91 7%
50 $27.01 10%
100 $26.11 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 25LN48M01-144
  • Motor Type: PM External Linear Stepper
  • Phase: 2
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.143 A
  • Holding Torque: 14.7 mN.m(2.082 oz.in)
  • Phase Resistance: 84 ± 10% ohms(20 ℃)
  • Inductance: 48 mH ± 20%
  • Life: 3000 h

Physical Specification

  • Frame Size: Φ25 mm
  • Body Length: 14.5 mm
  • Lead Screw Length: 174 mm(6.85")
  • Lead Screw Diameter: Φ3.56 mm(0.14")
  • Lead/Revolution: 1.22 mm(0.047")
  • Lead/Step: 0.0254 mm(0.001")
  • Number of Leads: 4
  • Lead Length: 320 mm
  • Weight: 42.3 g

Connection

A+
A-
B+
B-
White
Black
Green
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PM Non-Captive Precision Linear Stepper Motor 15 Deg 0.23A 2 Phase Lead 1mm/0.039" Lead Screw 50mm Φ25x15.6mm
Next: PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1mm/0.039" Lead Screw 120mm Φ27x30.8mm
Electrical Specification
Holding Torque (oz.in) 2.082
Inductance(mH) 48
Phase Resistance(ohm) 84
Rated Current (A) 0.143
Step Angle(°) 7.5
Motor Type External
No. of Phase 2
Holding Torque(mN.m) 14.7
Physical Specification
Body Length(mm) 14.5
Lead Length(mm) 174
Lead Screw Diameter(mm) Φ3.56
Lead Screw Length(mm) 174
No. of Lead 4
Lead Travel/Revolution(mm) 1.22
