Nema23 Bracket Flange for ISC And ISD Series Drivers Mounting on the Nema 23 Stepper Motors

Nema23 Bracket Flange for ISC And ISD Series Drivers Mounting on the Nema 23 Stepper Motors
NO.:ST-M10
Review: Post a review
Latest price:$8.24
Buy It Now:$6.34
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $6.02 5%
30 $5.90 7%
50 $5.71 10%
100 $5.39 15%
Add To Cart
Add To My Favorites

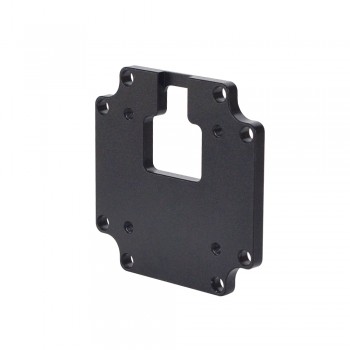

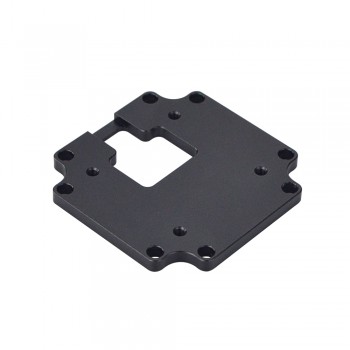

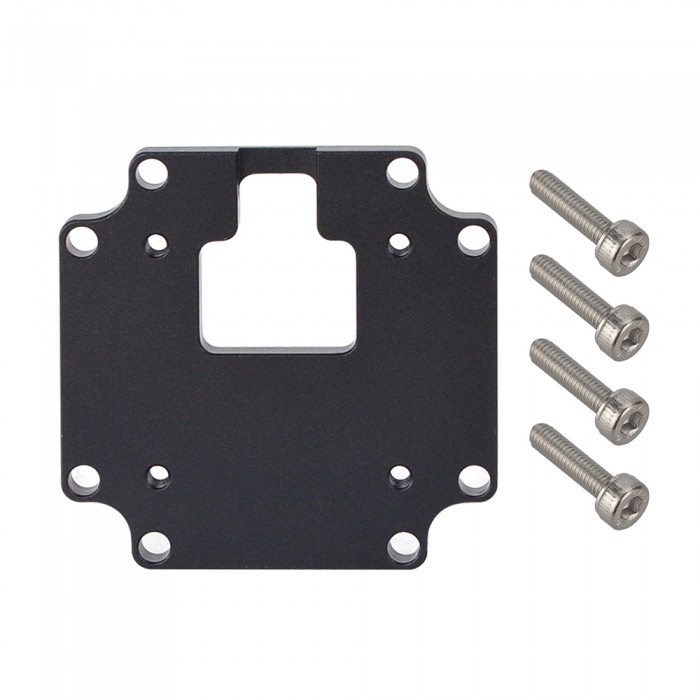

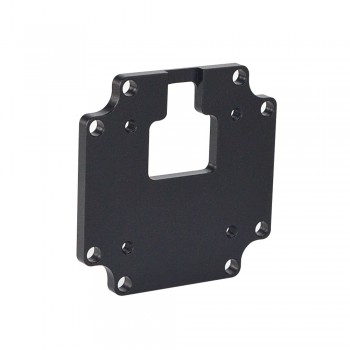

The flange is designed for the ISC series and ISD series' drivers so that these drivers can be mounted on the Nema23 stepper motor's rear end cap easily.

  • P/N: ST-M10
  • Size: 56 x 56 mm
  • Material: 6061-T4(SS)

Resources

  • ISC/ISD series' drivers: ISC/ISD

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 4.7m(185") AWG18 Motor Encoder Extension Cable Kit for Nema 34 Closed Loop Stepper Motors
Next: Nema17 Bracket for High Precision Planetary Geared Motor Alloy Steel Bracket
Physical Specification
Matching Motor Nema 23 & ISC/ISD Driver
