Miniature Stepper Motor Controller 1.5-4A 12-40VDC for NEMA 17,23,24 Stepper Motor

Miniature Stepper Motor Controller 1.5-4A 12-40VDC for NEMA 17,23,24 Stepper Motor
NO.:ISC04
Post a review
Special Offer in September 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till September 28th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$78.92
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $74.97 5%
10 $73.40 7%
50 $71.03 10%
100 $68.66 13%
Add To Cart

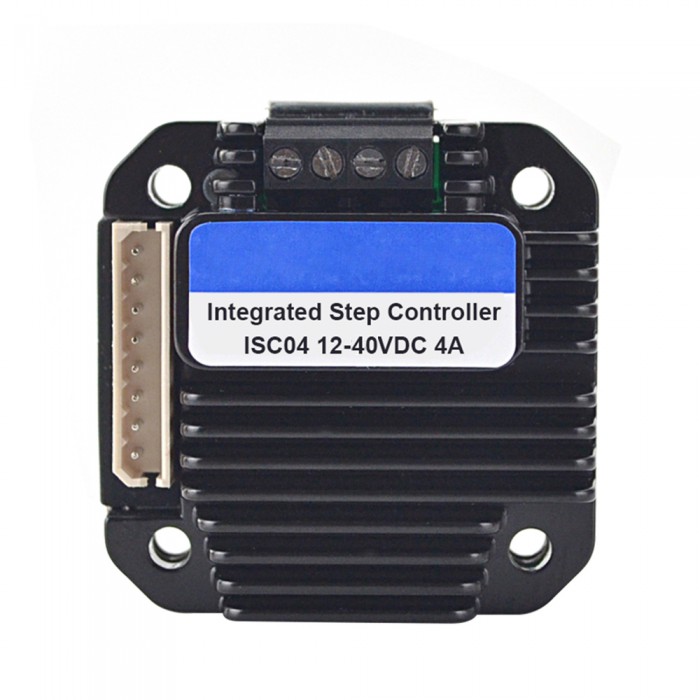

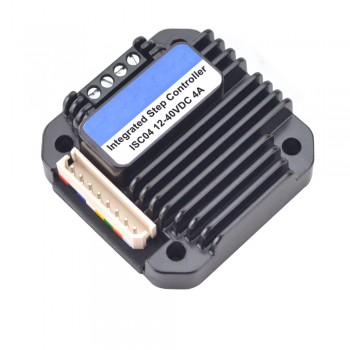

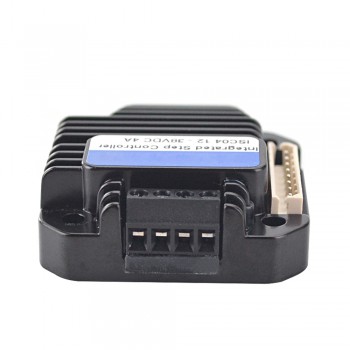

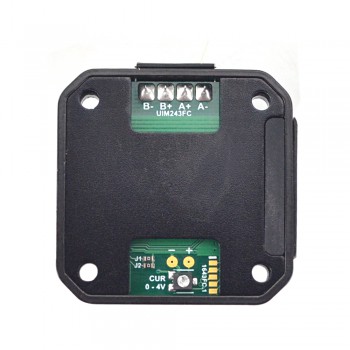

The ISC04 is a microprocessor embedded, voltage control, miniature stepper motor controller. It is integrally designed to fit onto stepper motors, and is simple to control. With ISC04, the motor speed can be controlled by an analog voltage. It is simple, stable and low cost. ISC04 can provide 0 - 4A adjustable phase current through 10 - 40VDC input voltage.
The microprocessor of the ISC04 is capable to ramp up the current speed to the desired speed. It is possible to jump to 1250 rpm in 0.3 seconds. This feature makes the sudden increase of the desired speed become possible. With the ISC04, the motor speed can be controlled by an analog voltage in two optional ways: an external potentiometer or an external voltage. ISC04 driver can run the motor without user control device. At the same time, with the high-speed current compensation function, ISC04 can compensate the effects caused by counter electromotive force, which is produced in high- speed motor turning.
ISC04 can be mounted onto NEMA 17, 23, 24 series stepper motor seamlessly through adapting flanges. The enclosure is made of die-cast aluminum which provides a rugged durable protection and improves the heat dissipation.

You may need a flange for mounting this controller to your motor: ST-M10

Key Features:

  • Miniature size 42.3 x 42.3 x 16.5 mm
  • Integrally designed to fit onto motors seamlessly, as well as work standalone
  • All-aluminum precision cast housing, sturdy and durable, good heat dissipation
  • Wide range input voltage
  • 0 - 4 A adjustable output current
  • microstep resolutions 1600
  • Dual full H-bridge with PWM constant current control
  • Self pulse generation, automatic run on power-up
  • Speed control through external potentiometer 0.75 - 1250 RPM
  • Speed control through 0 - 5V voltage input 0.75 - 1250 RPM
  • 0.3 seconds acceleration period
  • Switch control run/stop, direction, enable/shutdown
  • Automatic current reduction / power saving

Electrical Specifications:

  • Output Peak Current: 0 - 4 A
  • Input Voltage: 12 - 40 VDC
  • Speed Range: 40HZ - 67 KHz, 0.75 - 1256RPM(for 1.8 deg motors)
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Humidity: Less than 80% RH
  • Operating Temperature: -40℃ - 85℃
  • Vibration: 3G Max
  • Storage Temperature: -50℃ - 150℃
  • Size: 42.3 x 42.3 x 16.5 mm
  • Weight: 54.6 g(1.926oz)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Integrated Stepper Motor Driver Controller 0-2A 10-28VDC for NEMA 8, Nema 11, Nema 14, Nema 17 Stepper Motor
Next: Mini Integrated Stepper Motor Controller 3-8A 12-40VDC for NEMA 23, Nema 24, Nema 34 Stepper Motor
Integrate Stepper Servo Motor Specification
Max Pulse Frenquency(KHz) 67
Stepper Driver Specification
Output Current(A) 1.5 - 4 A
Input Voltage(V) DC12 - 40
