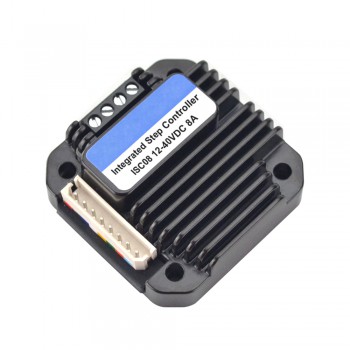

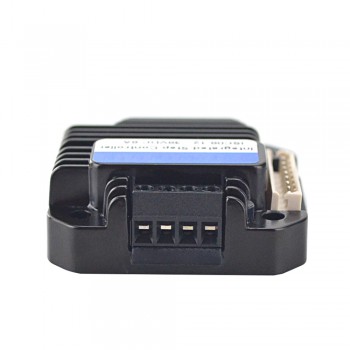

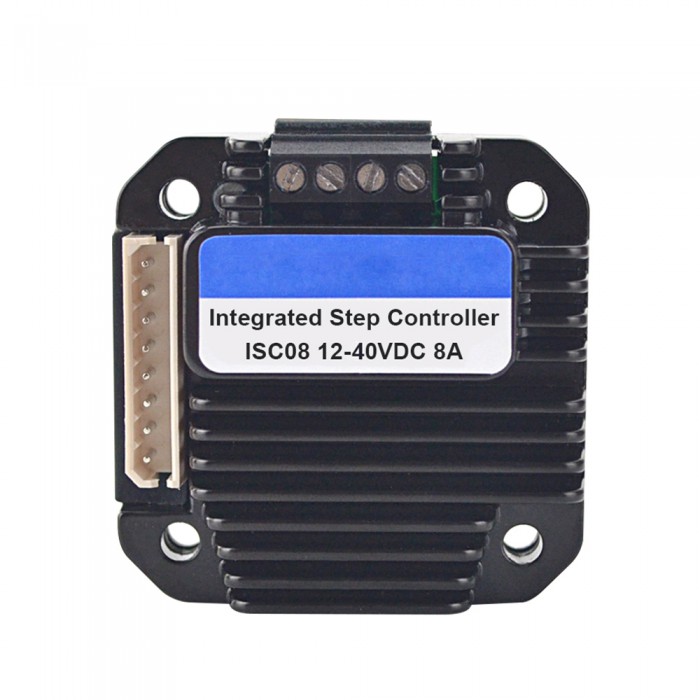

Mini Integrated Stepper Motor Controller 3-8A 12-40VDC for NEMA 23, Nema 24, Nema 34 Stepper Motor

Mini Integrated Stepper Motor Controller  3-8A 12-40VDC for NEMA 23, Nema 24, Nema 34 Stepper Motor
NO.:ISC08
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$139.75
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $132.76 5%
5 $129.97 7%
10 $125.78 10%
50 $121.58 13%
Add To Cart

You may need a flange for mounting this controller to your motor: ST-M10



Key Features:

  • Miniature size 42.3 x 42.3 x 16.5 mm
  • Integrally designed to fit onto motors seamlessly, as well as work standalone
  • All-aluminum precision cast housing, sturdy and durable
  • Wide range input voltage
  • 0 - 8 A adjustable output current
  • microstep resolutions 1600
  • Dual full H-bridge with PWM constant current control
  • Self pulse generation, automatic run on power-up
  • Speed control through external potentiometer 0.75 - 1250 RPM
  • Speed control through 0 - 5V voltage input 0.75 - 1250 RPM
  • 0.3 seconds acceleration period
  • Switch control run/stop, direction, enable/shutdown
  • Automatic current reduction / power saving

Electrical Specifications:

  • Output Peak Current: 0 - 8 A
  • Input Voltage: 12 - 40 VDC
  • Speed Range: 40HZ - 67 KHz, 0.75 - 1256RPM(for 1.8 deg motors)
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Humidity: Less than 80% RH
  • Operating Temperature: -40℃ - 85℃
  • Vibration: 3G Max
  • Storage Temperature: -50℃ - 150℃
  • Size: 42.3 x 42.3 x 16.5 mm
  • Weight: 55.4 g(1.954oz)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Miniature Stepper Motor Controller 1.5-4A 12-40VDC for NEMA 17,23,24 Stepper Motor
Next: Nema 11 Integrated Closed Loop Stepper Servo Motor 7.4Ncm(10.5oz.in) 24VDC 5000CPR ESS
Integrate Stepper Servo Motor Specification
Max Pulse Frenquency(KHz) 67
Stepper Driver Specification
Output Current(A) 3 - 8 A
Input Voltage(V) DC12 - 40
