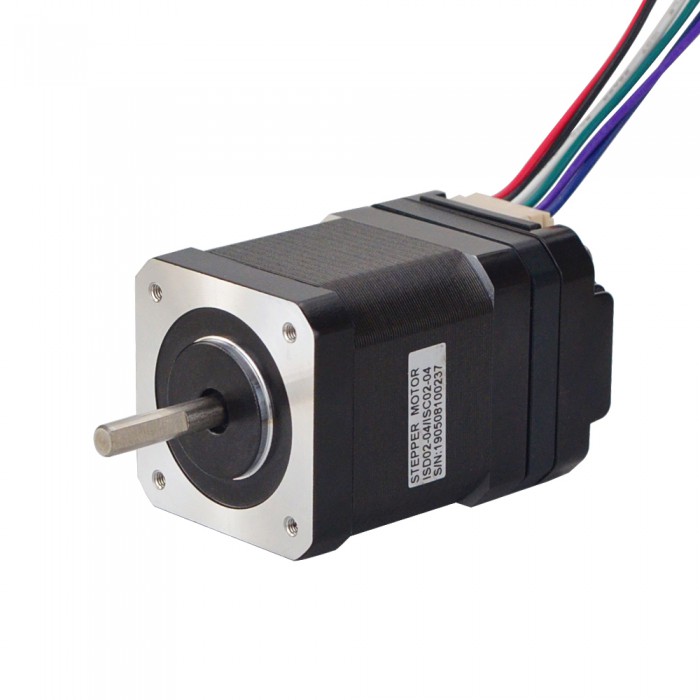

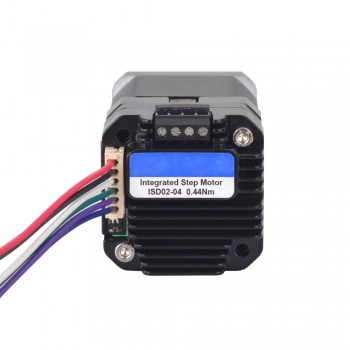

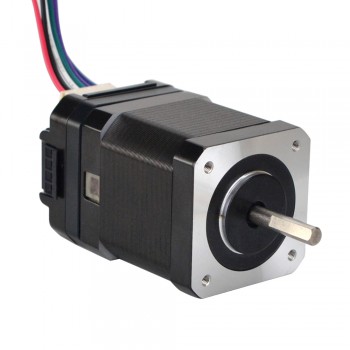

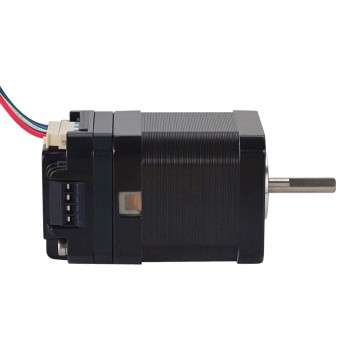

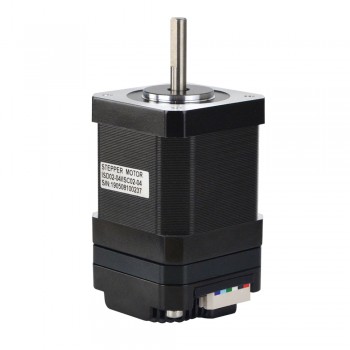

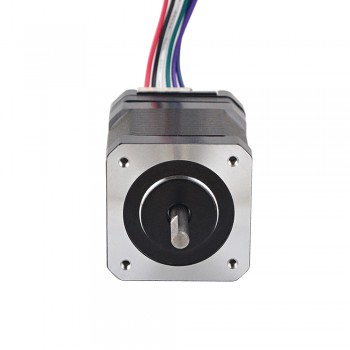

Nema 17 Integrated Stepper Motor 1.8 Deg 0.44Nm(62.32 oz-in) 1.68A with Driver 10-30VDC ISD02

Nema 17 Integrated Stepper Motor 1.8 Deg 0.44Nm(62.32 oz-in) 1.68A with Driver 10-30VDC ISD02
NO.:ISD02-04
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$79.58
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $75.60 5%
10 $74.01 7%
50 $71.62 10%
100 $69.23 13%
Add To Cart

Electrical Specifications:

  • Manufacturer Part Number: ISD02-04
  • Step Angle: 1.8 deg
  • Holding Torque: 44 Ncm(62.32oz.in)
  • Rated Current/phase: 1.68 A
  • Phase Resistance: 2 ohms
  • Inductance: 2.5 mH ± 20%(1KHz)

Physical Specifications:

  • Frame Size: 42 x 42 mm
  • Body Length: 69.5 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 24 mm
  • Weight: 404.5 g

Driver Specifications:

  • Output Peak Current: 0 - 2 A
  • Input Voltage: 10 - 30 VDC
  • Pulse Input Frequency: 5 - 12 KHz(Full-step)
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

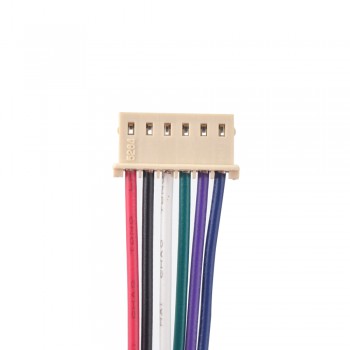

Connection

V+
GND
VCC
DIR
STP
ENA
Red
Black
White
Green
Purple
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 24 Closed Loop Integrated Stepper Servo Motor 3Nm(425 oz-in) 24-50VDC 4.5A
Next: Integrated Nema 17 Stepper Motor 1.8 Deg 0.44Nm(62.32 oz-in) 1.68A with Controller10-30VDC ISC02
Integrate Stepper Servo Motor Specification
Input Voltage (V) 10 - 30
Electrical Specification
Holding Torque (Ncm) 44
Holding Torque (oz.in) 62.32
Inductance(mH) 2.5
Phase Resistance(ohm) 2
Rated Current (A) 1.68
Step Angle(°) 1.8
Stepper Driver Specification
Max. Pulse Input(kHZ) 12(Full-step)
Output Current(A) 0 - 2
Physical Specification
Body Length(mm) 69.5
Frame Size(mm) 42x42
Shaft Diameter(mm) 5
Shaft Length(mm) 24
