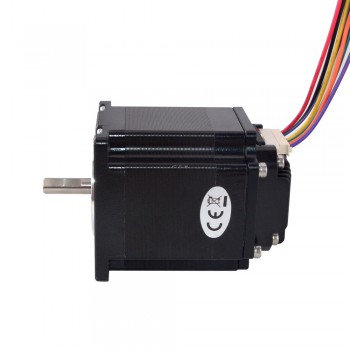

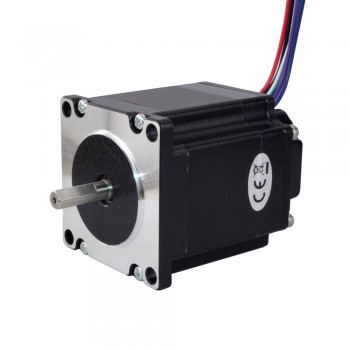

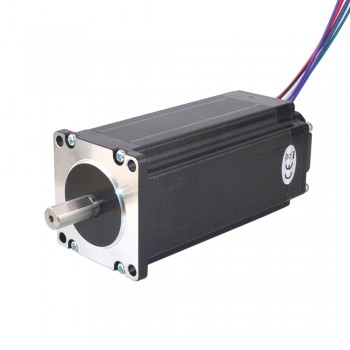

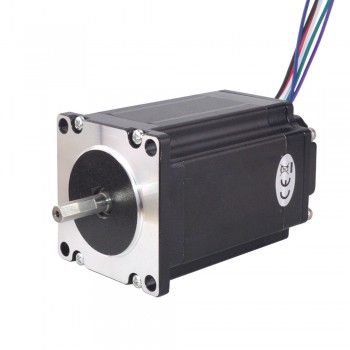

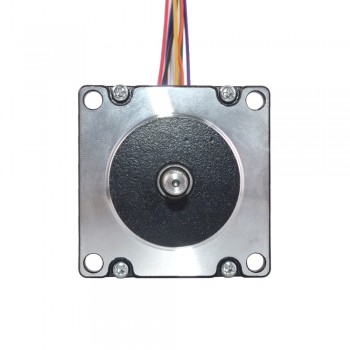

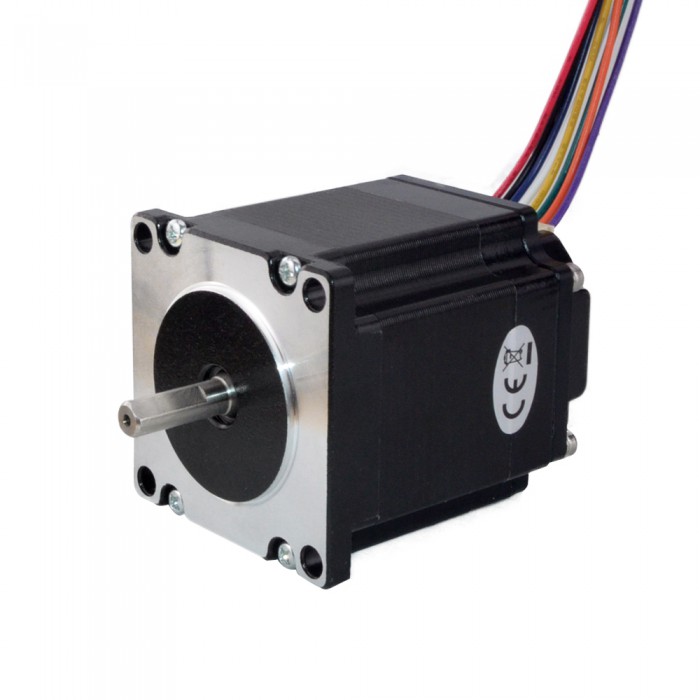

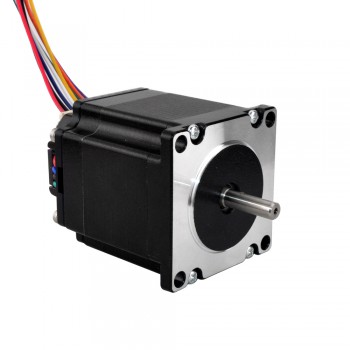

Nema 23 Integrated Stepper Motor 126 Ncm(178.4oz.in) with Driver Controller ISC04 12-38VDC

NO.:ISC04-10
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$99.44
Buy It Now:$66.30
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$64.46 $60.78 $58.93 $55.25
Add To Cart

Electrical Specifications:

  • Manufacturer Part Number: ISC04-10
  • Step Angle: 1.8 deg
  • Holding Torque: 126 Ncm(178.4oz.in)
  • Rated Current/phase: 2.8 A
  • Phase Resistance: 0.9 ohms
  • Inductance: 2.5 mH ± 20%(1KHz)

Physical Specifications:

  • Frame Size: 57 x 57 mm
  • Body Length: 75 mm
  • Shaft Diameter: Φ6.35 mm
  • Shaft Length: 21 mm
  • Weight: 818 g

Driver Specifications:

  • Output Peak Current: 1.5 - 4 A
  • Input Voltage: 12 - 38 VDC
  • Speed control through external potentiometer 0. 75 - 1250 RPM
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

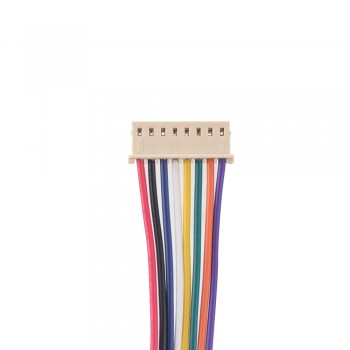

Connection

V+
GND
ENA
ON
H/L
DIR
Vr
SPD
Red
Black
Blue
White
Yellow
Green
Orange
Purple



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Integrated Nema 17 Stepper Motor 0.44Nm(62.32 oz-in) w/ Controller ISC02 10-30VDC
Next: Integrated Stepper Motor Nema 23 190 Ncm(269oz.in) with Controller ISC04 12-38VDC
Integrate Stepper Servo Motor Specification
Input Voltage (V) 12 - 38
Electrical Specification
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Step Angle(°) 1.8
Stepper Driver Specification
Output Current(A) 1.5 - 4
Physical Specification
Body Length(mm) 75
Frame Size(mm) 57 x 57
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
