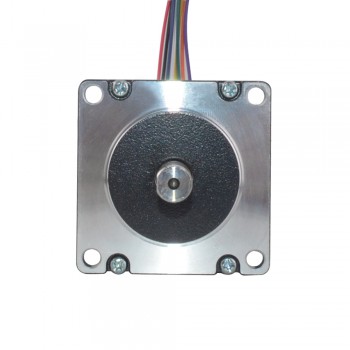

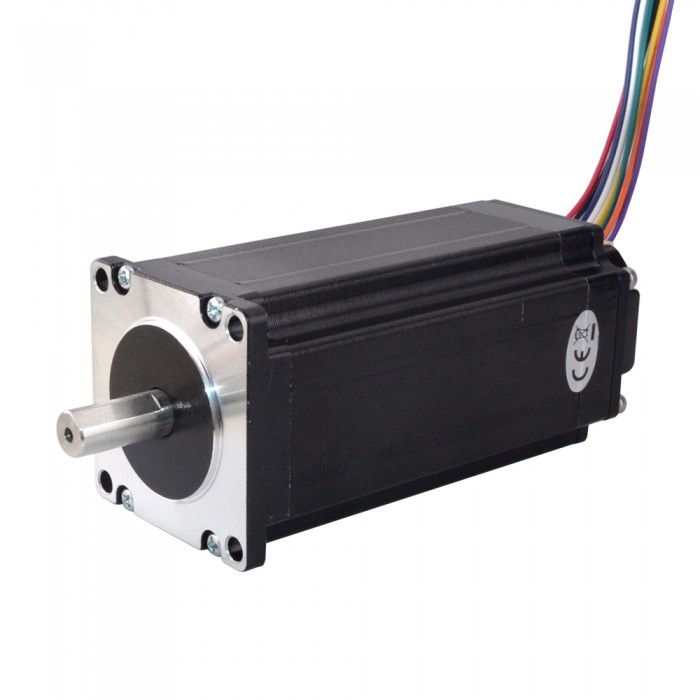

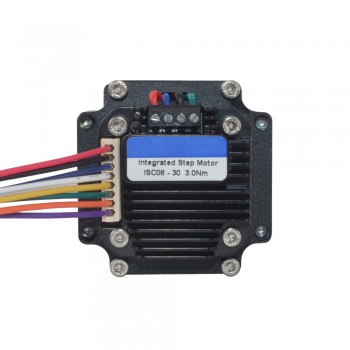

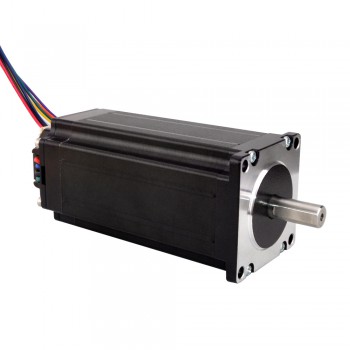

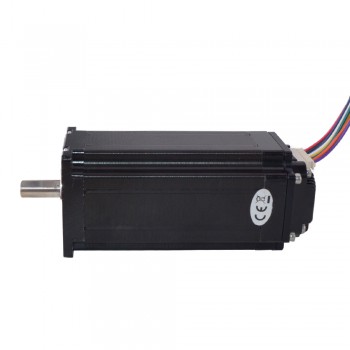

Nema 23 Integrated Stepper Motor with Controller 1.8 Deg 12-38VDC 300 Ncm(425oz.in) 4.2A ISC08

Nema 23 Integrated Stepper Motor with Controller 1.8 Deg 12-38VDC 300 Ncm(425oz.in) 4.2A ISC08
NO.:ISC08-30
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$179.03
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $170.08 5%
5 $166.50 7%
10 $161.13 10%
50 $155.76 13%
Add To Cart

Electrical Specifications:

  • Manufacturer Part Number: ISC08-30
  • Step Angle: 1.8 deg
  • Holding Torque: 300 Ncm(425oz.in)
  • Rated Current/phase: 4.2 A
  • Phase Resistance: 0.9 ohms
  • Inductance: 3.8 mH ± 20%(1KHz)

Physical Specifications:

  • Frame Size: 57 x 57 mm
  • Body Length: 133 mm
  • Shaft Diameter: Φ10 mm
  • Shaft Length: 24 mm
  • Weight: 1850 g

Driver Specifications:

  • Output Peak Current: 3 - 8 A
  • Input Voltage: 12 - 38 VDC
  • Speed control through external potentiometer 0. 75 - 1250 RPM
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

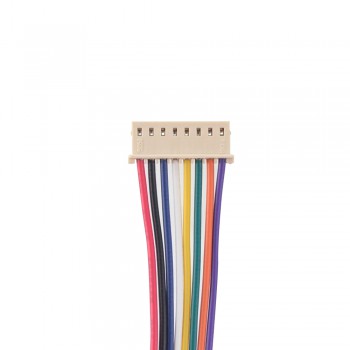

Connection

V+
GND
ENA
ON
H/L
DIR
Vr
SPD
Red
Black
Blue
White
Yellow
Green
Orange
Purple



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Integrated Stepper Motor Nema 23 1.8 Deg 190 Ncm(269oz.in) with Controller ISC04 12-38VDC
Next: Nema 23 Integrated Stepper Motor with Driver 1.8 Deg 126 Ncm(178.4oz.in) 12-38VDC 2.8A ISD04
Integrate Stepper Servo Motor Specification
Input Voltage (V) 12 - 38
Electrical Specification
Holding Torque (Ncm) 300
Holding Torque (oz.in) 425
Phase Resistance(ohm) 3.8
Rated Current (A) 4.2
Step Angle(°) 1.8
Stepper Driver Specification
Output Current(A) 3 - 8
Physical Specification
Body Length(mm) 133
Frame Size(mm) 57 x 57
Shaft Diameter(mm) 10
Shaft Length(mm) 24
