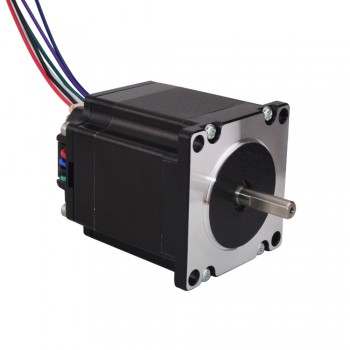

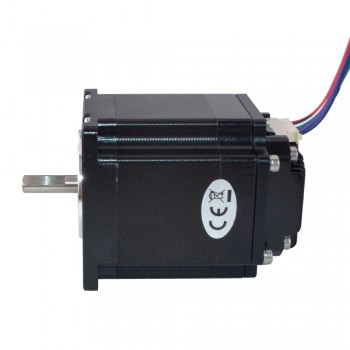

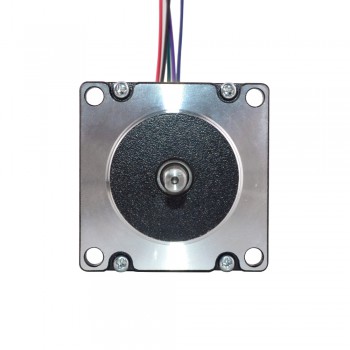

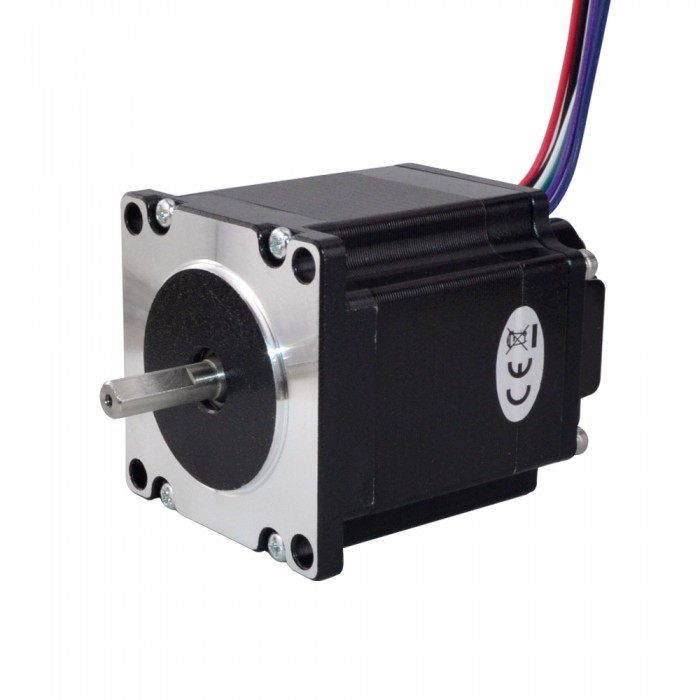

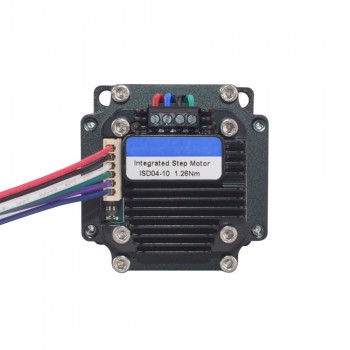

Nema 23 Integrated Stepper Motor with Driver 1.8 Deg 126 Ncm(178.4oz.in) 12-38VDC 2.8A ISD04
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Electrical Specifications:
Manufacturer Part Number: ISD04-10
Step Angle: 1.8 deg
Holding Torque: 126 Ncm(178.4oz.in)
Rated Current/phase: 2.8 A
Phase Resistance: 0.9 ohms
Inductance: 2.5 mH ± 20%(1KHz)
Physical Specifications:
Frame Size: 57 x 57 mm
Body Length: 75 mm
Shaft Diameter: Φ6.35 mm
Shaft Length: 21 mm
Weight: 818 g
Driver Specifications:
Output Peak Current: 1.5 - 4 A
Input Voltage: 12 - 38 VDC
Speed control through external potentiometer 0. 75 - 1250 RPM
Isolation Resistance: More than 100 MΩ
Dielectric strength: 500VAC for 1MIN.

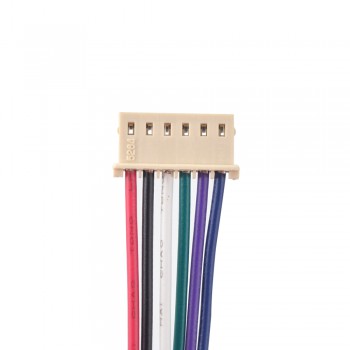

Connection
|
V+
|
GND
|
VCC
|
DIR
|
STP
|
ENA
|
|
Red
|
Black
|
White
|
Green
|
Purple
|
Blue
|
Resources
Full Datasheet: ISD04-10.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Integrate Stepper Servo Motor Specification | |
|---|---|
| Input Voltage (V) | 12 - 38 |
| Electrical Specification | |
| Holding Torque (Ncm) | 126 |
| Holding Torque (oz.in) | 178.4 |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 2.8 |
| Step Angle(°) | 1.8 |
| Stepper Driver Specification | |
| Output Current(A) | 1.5 - 4 |
| Physical Specification | |
| Body Length(mm) | 75 |
| Frame Size(mm) | 57 x 57 |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
