1 Axis Stepper CNC Kit 1.26Nm (178.4oz.in) Nema 23 Stepper Motor & Digital Stepper Driver

NO.:1-DM442S-23HS22
Review: Post a review
Latest price:$61.07
Buy It Now:$40.72
Quantity:- +

Add To Cart

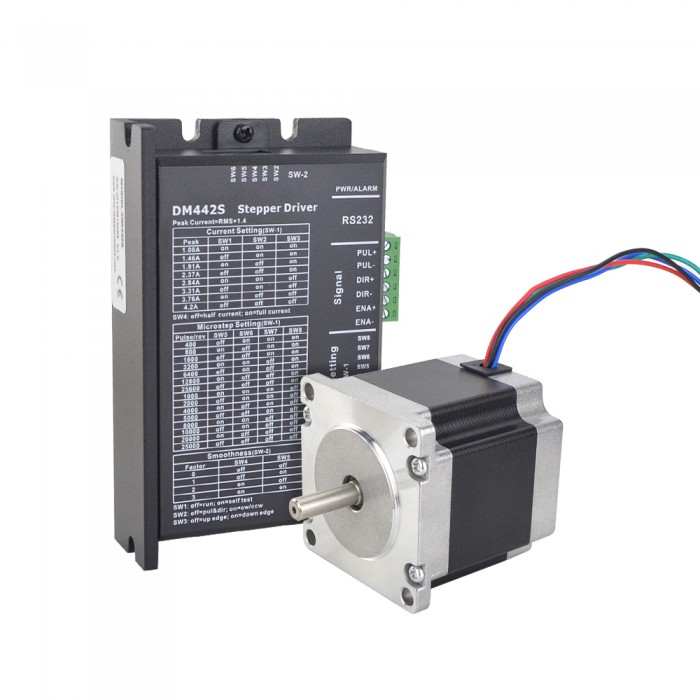

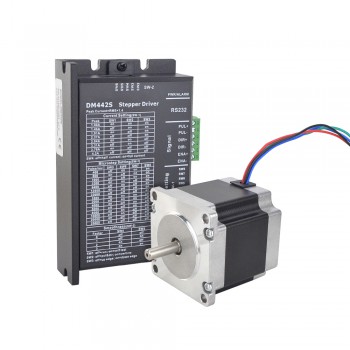

This CNC kit included:

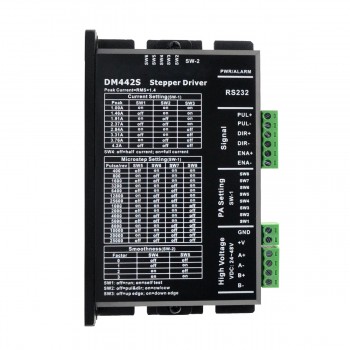

  • 1 x Small Size Digital Stepper Driver RMS Current Max 3A 24-48VDC PUL/DIR and CW/CCW

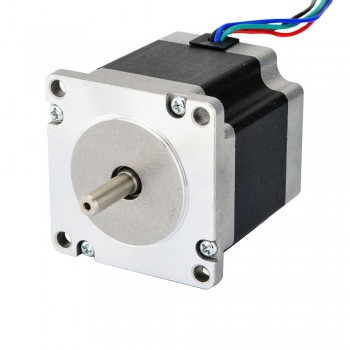

  • 1 x Nema 23 Bipolar 1.8deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

Motor Specification

  • Manufacturer Part Number: 23HS22-2804S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 700g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

  • Input Voltage: DC24V~48V
  • Max Pulse Frequency: 200K
  • Default Communication Rate: 57.6kbps
  • Over voltage value: 60V
  • Overall Dimensions(mm): 115.7x69.3x26.65
  • Weight: Approximate 260g
  • Environment: Avoid dust,oil fog and corrosive gases
  • Operating Temperature: 0~70℃
  • Storage Temperature: -20℃~+80℃
  • Humidity: 40~90%RH
  • Cooling method: Natural cooling or forced air cooling

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed loop Stepper Kit 5.8 Nm(821.51 oz.in) Nema 34 Closed loop Stepper Motor & Driver
Next: 1 Axis Stepper CNC Kit 1.9Nm(269oz.in) Nema 23 Stepper Motor & Driver
CNC Kit Specification
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 56
Holding Torque (Ncm) 126
Holding Torque (oz.in) 178.4
Inductance(mH) 2.5
Lead Length(mm) 300
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Step Angle(°) 1.8
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Microstep(Steps/rev.) 400-25000
Output Current(A) 1 - 4.2
Input Voltage(V) 24-48VDC
Physical Specification
Weight(g) 1150
