1 Axis Stepper CNC Kit 1.9Nm (269oz.in) Nema 23 E Series Stepper Motor & Driver

NO.:1-DM542Y-23HE30
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$69.96
Buy It Now:$46.64
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$45.26 $43.90 $42.53 $41.15
Add To Cart

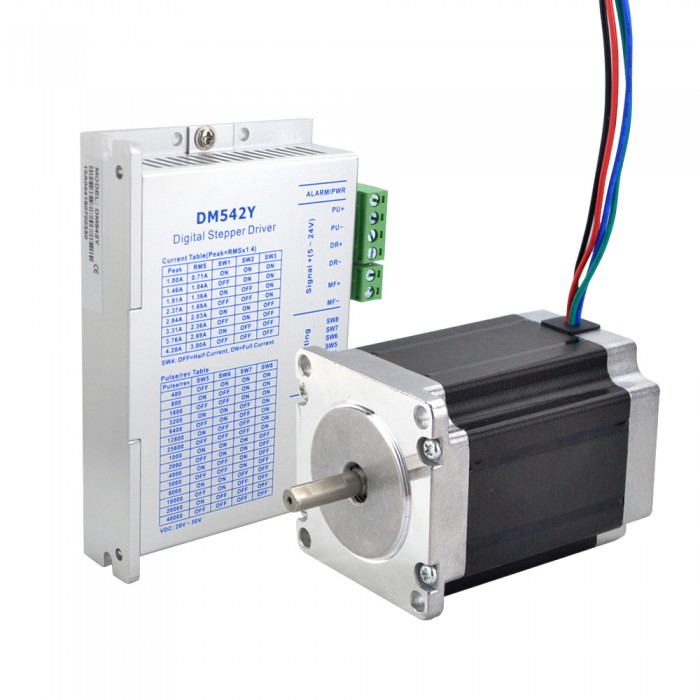

This CNC kit includes:

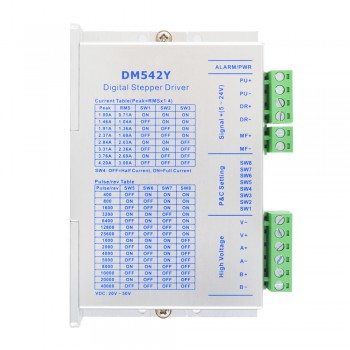

  • 1 x Y Series Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor

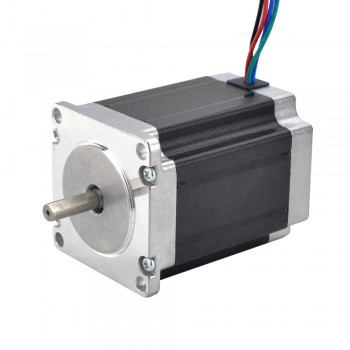

  • 1 x E Series Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires

Motor Specification

  • Manufacturer Part Number: 23HE30-2804S
  • Number Of Phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.9 Nm(269oz.in)
  • Rated Current/phase: 2.8 A
  • Phase Resistance: 1.13 ohms± 10%
  • Inductance: 5.4 mH ± 20%(1KHz)
  • Frame Size: 57 x 57 mm
  • Body Length: 76 mm
  • Shaft Diameter: Φ6.35 mm
  • Shaft Length: 21 mm
  • D-CUT Shaft Length: 15 mm
  • Number of Leads: 4
  • Lead Length: 500 mm

Connection

A+
A-
B+
B-
BLK
GRN
RED
BLU



Driver Specification

  • Output Peak Current: 1.0 - 4.2 A(0.71~3.0RMS)
  • Input Voltage: DC20V~50V
  • Logic Signal Current: 7 - 15 mA (Typical 10 mA)
  • Pulse Input Frequency: 0 - 200 kHz
  • Pulse Width: 2.5μS
  • Isolation Resistance: 500 MΩ
  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0 - 65 ℃
  • Humidity: 40% - 90% RH
  • Operating Temperature: 50 ℃ MAX
  • Vibration: 10-50Hz/0.15mm
  • Storage Temperature: -20 - 65 ℃

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper CNC Kit 1.26 Nm(178.04oz.in) Nema 23 E Series Stepper Motor & Driver
Next: 1 Axis Stepper CNC Kit 3.0 Nm(425oz.in) Nema 23 E Series Stepper Motor & Digital Stepper Driver 1.7-5.6A
CNC Kit Specification
No of Axis Single Axis
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 76
Holding Torque (Ncm) 190
Holding Torque (oz.in) 269
Inductance(mH) 5.4
Lead Length(mm) 500
Motor Nema Size nema 23
No. of Lead 4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Step Angle(°) 1.8
