1 Axis Stepper CNC Kit 3.0 Nm(425oz.in) Nema 23 E Series Stepper Motor & Driver
Special Offer in May 2023:
- $10 Off Over $150
- $20 Off Over $300
- $30 Off Over $500
- $50 Off Over $800
- $60 Off Over $1000
- $80 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 31st, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$55.45

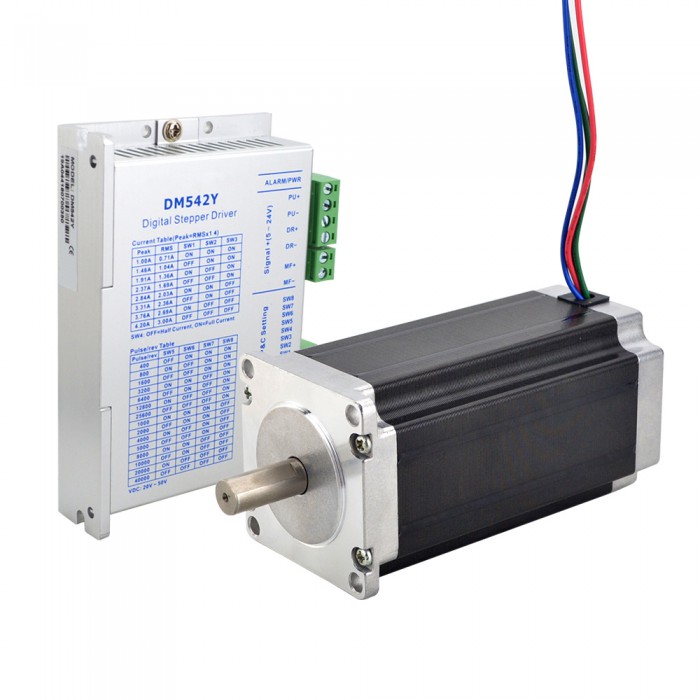

This CNC kit includes:

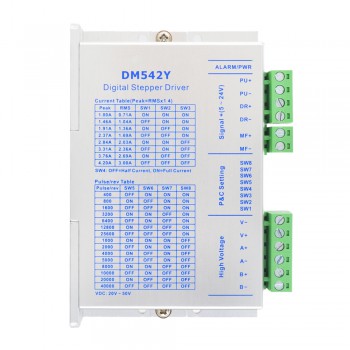

- 1 x Y Series Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor

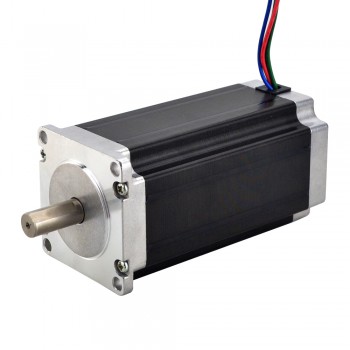

- 1 x E Series Nema 23 Stepper Motor Bipolar 1.8deg 3.0 Nm(425oz.in) 4.2A 57x57x113mm 4 Wires
Motor Specification
- Manufacturer Part Number: 23HE45-4204S
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 3.0 Nm(425oz.in)
- Rated Current/phase: 4.2 A
- Phase Resistance: 0.9 ohms± 10%
- Inductance: 3.8 mH ± 20%(1KHz)
- Frame Size: 57 x 57 mm
- Body Length: 113 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 24 mm
- D-cut Shaft Length: 20 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 1.8 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
Driver Specification
- Output Peak Current: 1.0 - 4.2 A（0.71~3.0RMS）
- Input Voltage: DC20V~50V
- Logic Signal Current: 7 - 15 mA (Typical 10 mA)
- Pulse Input Frequency: 0 - 200 kHz
- Pulse Width: 2.5μS
- Isolation Resistance: 500 MΩ
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0 － 65 ℃
- Humidity: 40% － 90% RH
- Operating Temperature: 50 ℃ MAX
- Vibration: 10-50Hz/0.15mm
- Storage Temperature: -20 － 65 ℃
Resources
- Motor Datasheet: 23HE45-4204S.pdf
- Motor Torque Curve: 23HE45-4204S_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| No of Axis | Single Axis |
| Open-loop/Closed-loop | Open-loop |
| Motor Specification | |
| Body Length(mm) | 113 |
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 425 |
| Inductance(mH) | 3.8 |
| Lead Length(mm) | 113 |
| Motor Nema Size | nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.2 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Microstep(Steps/rev.) | 400-40000 |
| Output Current(A) | 1.0 - 4.2 |
| Pulse Width(μs) | 2.5 |
| Input Voltage(V) | DC20V~50V |
