1 Axis Stepper CNC Kit 3Nm (425oz.in) Nema 23 Stepper Motor & Digital Stepper Driver

NO.:1-DM556S-23HS45
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$110.60
Buy It Now:$73.74
Quantity:- +

Add To Cart

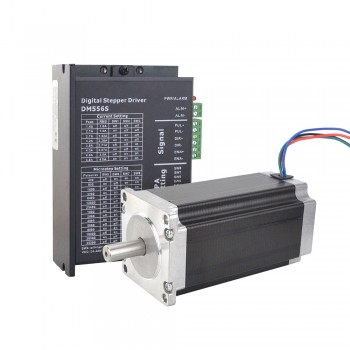

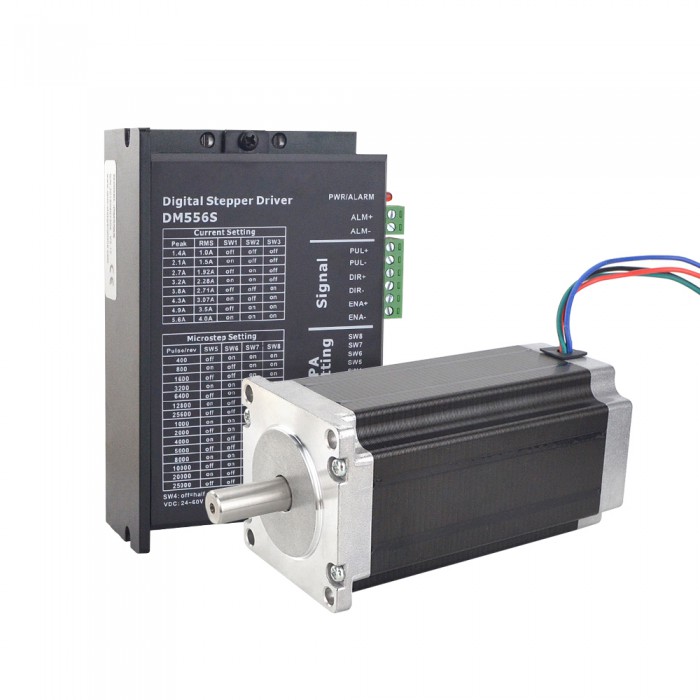

This CNC kit included:

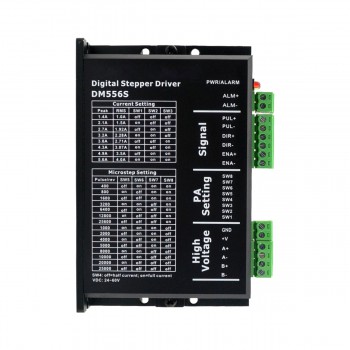

  • 1 x Digital Stepper Driver RMS Current Max 4A 24-60VDC

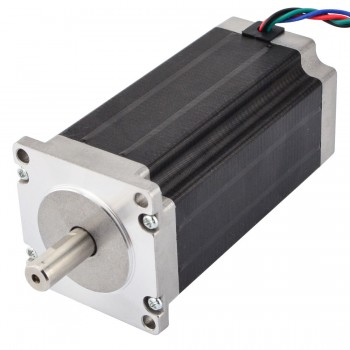

  • 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC

Motor Specification

  • Manufacturer Part Number: 23HS45-4204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Voltage: 3.78V
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.8kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

  • Input Voltage: DC24V~60V
  • Continuous Current: 7.5A
  • Max Pulse Frequency: 200K
  • Default Communication Rate: 57.6kbps
  • Overcurrent Protection: Peak 10A±10%
  • Over voitage Protection: Peak 90VDC
  • Overall Dimensions(mm): 118x75.5x34
  • Weight: Approximate 260g
  • Environment: Avoid dust,oil fog and corrosive gases
  • Operating Temperature: 0~70℃
  • Storage Temperature: -20℃~+80℃
  • Humidity: 40~90%RH
  • Cooling method: Natural cooling or forced air cooling

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper CNC Kit 3.0 Nm(425oz.in) Nema 23 E Series Stepper Motor & Driver
Next: 1 Axis Stepper CNC Kit 4.5Nm (637.38oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
CNC Kit Specification
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 113
Holding Torque (Ncm) 300
Holding Torque (oz.in) 425
Inductance(mH) 3.8
Lead Length(mm) 400
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 4.2
Shaft Diameter(mm) 10
Shaft Length(mm) 24
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Microstep(Steps/rev.) 400-25000
Output Current(A) 1.0-4.0
Input Voltage(V) 24-60VDC
Physical Specification
Weight(g) 2200
