1 Axis Stepper CNC Kit 6.0Nm (849.84oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$104.58

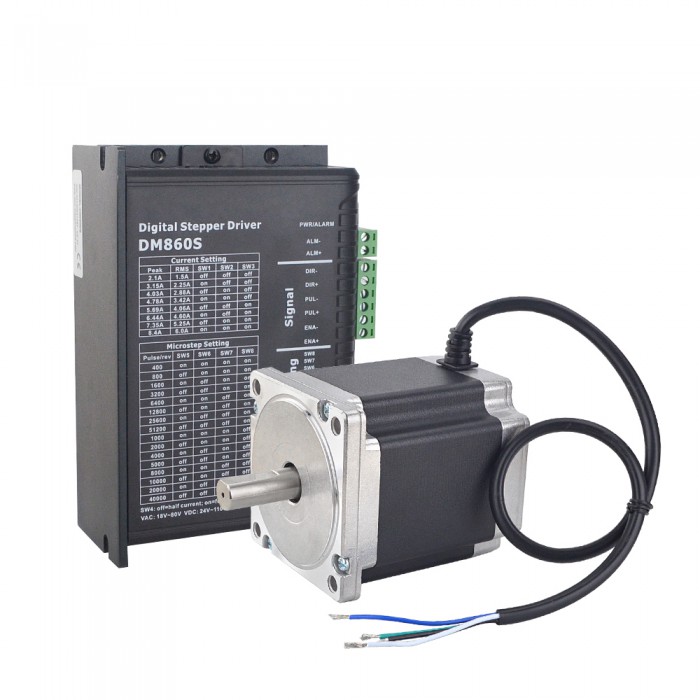

This CNC kit included:

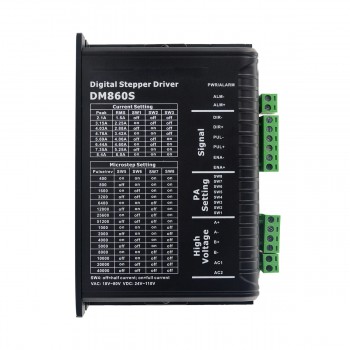

- 1 x Digital Stepper Driver RMS Current Max 6A 24-110VDC / 18-80VAC Basic Version

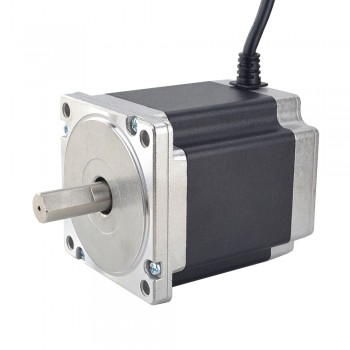

- 1 x Nema 34 CNC Stepper Motor 6.0Nm (849.84oz.in) 86x86x97.5mm 4 Wires
Motor Specification
- Manufacturer Part Number: 34HS38-5204S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 6.0 Nm(849.84oz.in)
- Rated Current/phase: 5.2 A
- Phase Resistance: 0.55 ohms± 10%
- Inductance: 4.0 mH ± 20%(1KHz)
- Frame Size: 86 x 86 mm
- Body Length: 97.5 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 34 mm
- D-cut Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 3.4 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
BLU
|
WHT
|
GRN
|
Driver Specification
- Parameter auto-setup and motor self-test
- Multi-Stepping inside, Small noise, low heat, smooth movement
- Torque compensation at high speed
- Variable current control technology, High current efficiency
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
- Support PUL/DIR and CW/CCW modes
- Storage the position of motor
- Optically isolated input and compatible with 5V ~ 24V
- User-defined microsteps
- Micro-step resolutions and Output current programmable
- Over current, over voltage and undervoltage protection
- Green light means running while red light means protection or off line
Resources
- Motor Datasheet: 34HS38-5204S.pdf
- Driver Manual: DM860S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| Open-loop/Closed-loop | Open-loop |
| Motor Specification | |
| Body Length(mm) | 97.5 |
| Holding Torque (Ncm) | 600 |
| Holding Torque (oz.in) | 849.84 |
| Inductance(mH) | 4.0 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.55 |
| Rated Current (A) | 5.2 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Microstep(Steps/rev.) | 400-40000 |
| Output Current(A) | 1.5-6.0 |
| Input Voltage(V) | 18-80VAC |
| Physical Specification | |
| Weight(g) | 4150 |
