1 Axis Stepper CNC Kit 4Nm (566 oz.in) Nema 24 Stepper Motor & Digital Stepper Driver

NO.:1-DM556S-24HS39
Review: Post a review
China National Day 2020 Special Offer:
  • 5% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid:October 1st, 2020 - October 8th, 2020
  • Note:Delayed Delivery, See Details...
  • See details
Latest price:$112.10
Buy It Now:$74.74
Quantity:- +

Add To Cart

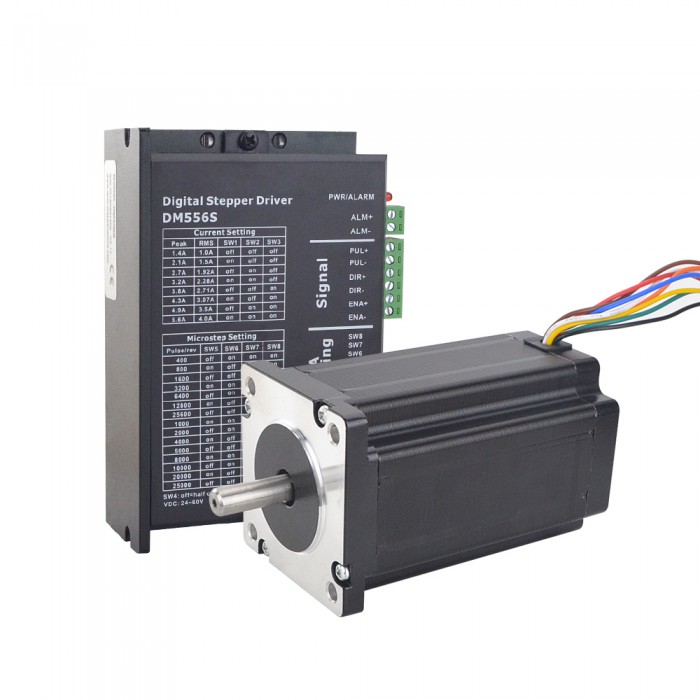

This CNC kit included:

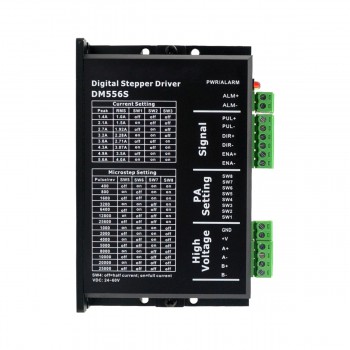

  • 1 x Digital Stepper Driver RMS Current Max 4A 24-60VDC

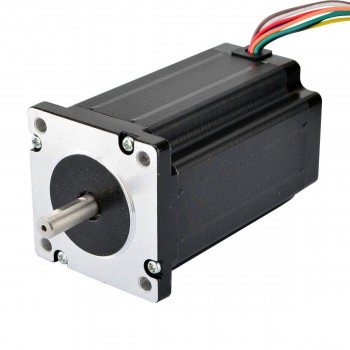

  • 1 x Dual Shaft Nema 24 CNC Stepper Motor 4Nm (566 oz.in) 60x60x100mm 8 Wires

Motor Specification

  • Manufacturer Part Number: 24HS39-3008D
  • Motor Type: Unipolar/Bipolar
  • Step Angle: 1.8 deg
  • Holding Torque(Bipolar): 4.0Nm(566oz.in)
  • Holding Torque(Unipolar): 2.8Nm(397oz.in)
  • Rated Current(Bipolar Serial): 2.12A
  • Rated Current(Bipolar Parallel): 4.24A
  • Rated Current(Unipolar): 3.0A
  • Phase Resistance(Bipolar Serial): 2.8ohms
  • Phase Resistance(Bipolar Parallel): 0.7ohms
  • Phase Resistance(Unipolar): 1.4ohms
  • Inductance(Bipolar Serial): 12.0mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 3.0mH ± 20%(1KHz)
  • Inductance(Unipolar): 3.0mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8.0mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length: 13mm
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 400mm
  • Weight: 1.6kg

Connection

A+
A-
C+
C-
B+
B-
D+
D-
RED
YEL
BLK
BLU
WHT
ORG
GRN
BRN



Driver Specification

  • Parameter auto-setup and motor self-test
  • Multi-Stepping inside, Small noise, low heat, smooth movement
  • Torque compensation at high speed
  • Variable current control technology, High current efficiency
  • Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
  • Storage the position of motor
  • Optically isolated input and compatible with 5V~24V
  • User-defined microsteps
  • Micro-step resolutions and Output current programmable
  • Over current,over voltage and under voltage protection
  • Automatic detection, flexible selection of pulse edge count mode
  • Green light means running while red light means protection or off line

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper CNC Kit 6.0Nm (849.84oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
Next: 1 Axis Stepper CNC Kit 8.5Nm (1203.94oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
CNC Kit Specification
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 100
Lead Length(mm) 400
Motor Nema Size Nema 24
No. of Lead 8
Shaft Diameter(mm) 8
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Microstep(Steps/rev.) 400-25000
Output Current(A) 1.0-4.0
Input Voltage(V) 24-60VDC
Physical Specification
Weight(g) 2150
