1 Axis Stepper CNC Kit 12.0 Nm(1699.68oz.in) Nema 34 E Series Stepper Motor & Driver

NO.:1-DM860Y-34HE59
Review: Post a review
Latest price:$153.62
Buy It Now:$102.42
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$99.41 $96.40 $93.38 $90.37
Add To Cart

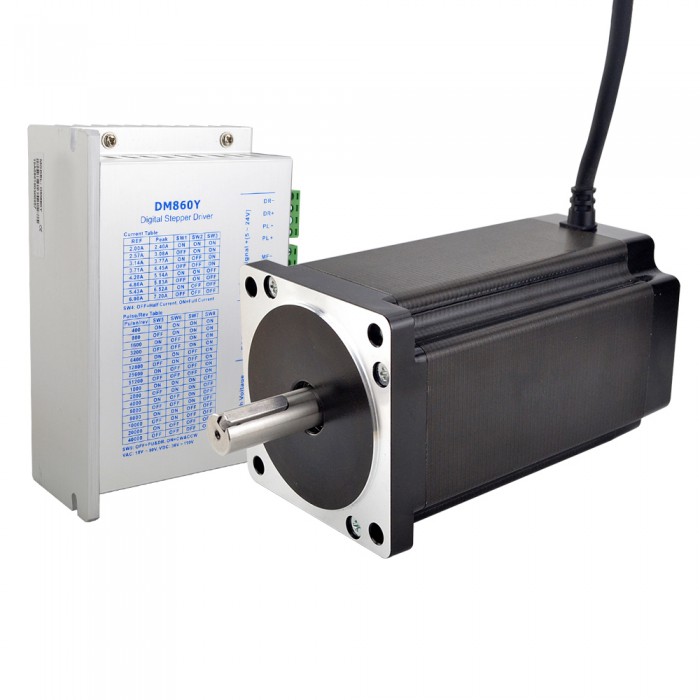

This CNC kit includes:

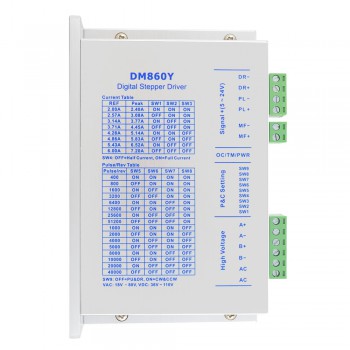

  • 1 x Digital Stepper Driver 2.4-7.2A AC18V-80V / DC 36V-110V for Nema 34 Motor

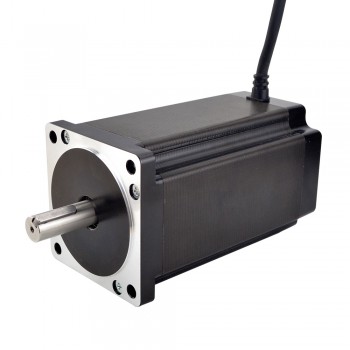

  • 1 x E Series Nema 34 Stepper Motor Bipolar 1.8deg 12.0 Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires

Motor Specification

  • Manufacturer Part Number: 34HE59-6004S
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 12.0 Nm(1699.68oz.in)
  • Rated Current/phase: 6.0 A
  • Phase Resistance: 0.7 ohms± 10%
  • Inductance: 7.9 mH ± 20%(1KHz)
  • Frame Size: 86 x 86 mm
  • Body Length: 151.5 mm
  • Shaft Diameter: Φ14 mm
  • Shaft Length: 37 mm
  • Keyway Shaft Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm

Connection

A+
A-
B+
B-
BLK
GRN
RED
BLU



Driver Specification

  • Output Peak Current: 2.4 - 7.2 A(2.0~6.0RMS)
  • Input Voltage: AC18V~80V/DC 36V-110V
  • Logic Signal Current: 7 - 15 mA (Typical 10 mA)
  • Pulse Input Frequency: 0 - 200 kHz
  • Pulse Width: 2.5μS
  • Isolation Resistance: 500 MΩ
  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0 - 65 ℃
  • Humidity: 40% - 90% RH
  • Operating Temperature: 50 ℃ MAX
  • Vibration: 10-50Hz/0.15mm
  • Storage Temperature: -20 - 65 ℃

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Kit 4.0Nm(566oz.in) Nema 24 Stepper Motor & Driver
Next: 1 Axis Stepper CNC Kit 12.0Nm (1699.68oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
CNC Kit Specification
No of Axis Single Axis
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 51.5
Holding Torque (Ncm) 1200
Holding Torque (oz.in) 1699.68
Inductance(mH) 7.9
Lead Length(mm) 500
Motor Nema Size nema 34
No. of Lead 4
Phase Resistance(ohm) 0.7
Rated Current (A) 6.0
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Step Angle(°) 1.8
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Microstep(Steps/rev.) 400-40000
Output Current(A) 2.4 - 7.2
Pulse Width(μs) 2.5
Input Voltage(V) AC18V~80V/DC 36V-110V
