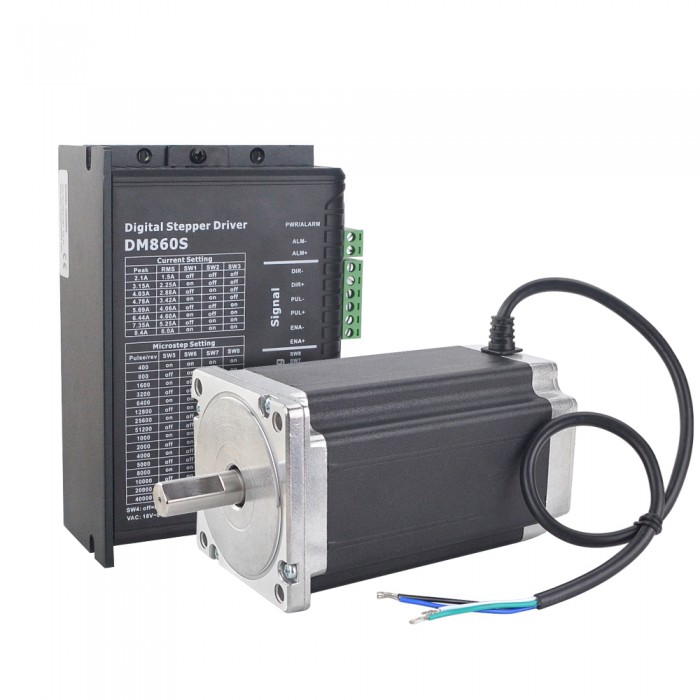

1 Axis Stepper CNC Kit 12.0Nm (1699.68oz.in) Nema 34 Stepper Motor & Digital Stepper Driver

NO.:1-DM860S-34HS59
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$177.49
Buy It Now:$118.33
Quantity:- +

Add To Cart

This CNC kit included:

  • 1 x Digital Stepper Driver RMS Current Max 6A 24-110VDC / 18-80VAC Basic Version
  • 1 x Nema 34 CNC Stepper Motor 12.0Nm (1699.68oz.in) 86x86x150.5mm 4 Wires

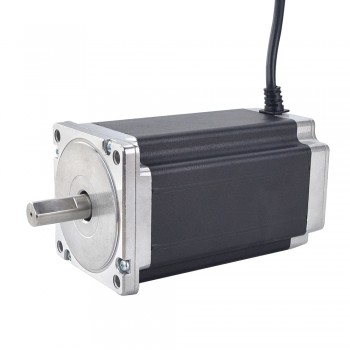

Motor Specification

  • Manufacturer Part Number: 34HS59-5204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 12.0 Nm(1699.68oz.in)
  • Rated Current/phase: 5.2 A
  • Phase Resistance: 0.80 ohms± 10%
  • Inductance: 8.0 mH ± 20%(1KHz)
  • Frame Size: 86 x 86 mm
  • Body Length: 150.5 mm
  • Shaft Diameter: Φ14 mm
  • Shaft Length: 34 mm
  • D-cut Shaft Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 5.4 kg

Connection

A+
A-
B+
B-
BLK
BLU
WHT
GRN

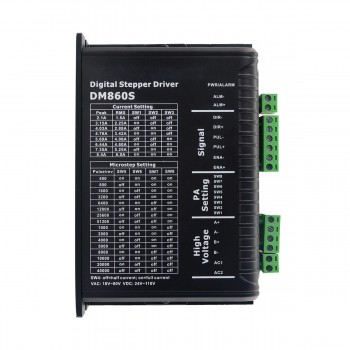

Driver Specification

  • Parameter auto-setup and motor self-test
  • Multi-Stepping inside, Small noise, low heat, smooth movement
  • Torque compensation at high speed
  • Variable current control technology, High current efficiency
  • Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
  • Support PUL/DIR and CW/CCW modes
  • Storage the position of motor
  • Optically isolated input and compatible with 5V ~ 24V
  • User-defined microsteps
  • Micro-step resolutions and Output current programmable
  • Over current, over voltage and undervoltage protection
  • Green light means running while red light means protection or off line

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper CNC Kit 12.0 Nm(1699.68oz.in) Nema 34 E Series Stepper Motor & Driver
Next: 1 Axis Stepper CNC Kit 4.8 Nm(849.84oz.in) Nema 34 E Series Stepper Motor & Driver
CNC Kit Specification
Open-loop/Closed-loop Open-loop
Motor Specification
Body Length(mm) 150.5
Holding Torque (Ncm) 120
Holding Torque (oz.in) 1699.68
Inductance(mH) 8.0
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.8
Rated Current (A) 5.2
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Microstep(Steps/rev.) 400-40000
Output Current(A) 1.5-6.0
Input Voltage(V) 18-80VAC
Physical Specification
Weight(g) 7350
