1 Axis Stepper CNC Kit 8.2 Nm(1161.45oz.in) Nema 34 E Series Stepper Motor & Driver
Special Offer in May 2023:
- $10 Off Over $150
- $20 Off Over $300
- $30 Off Over $500
- $50 Off Over $800
- $60 Off Over $1000
- $80 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 31st, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$93.61

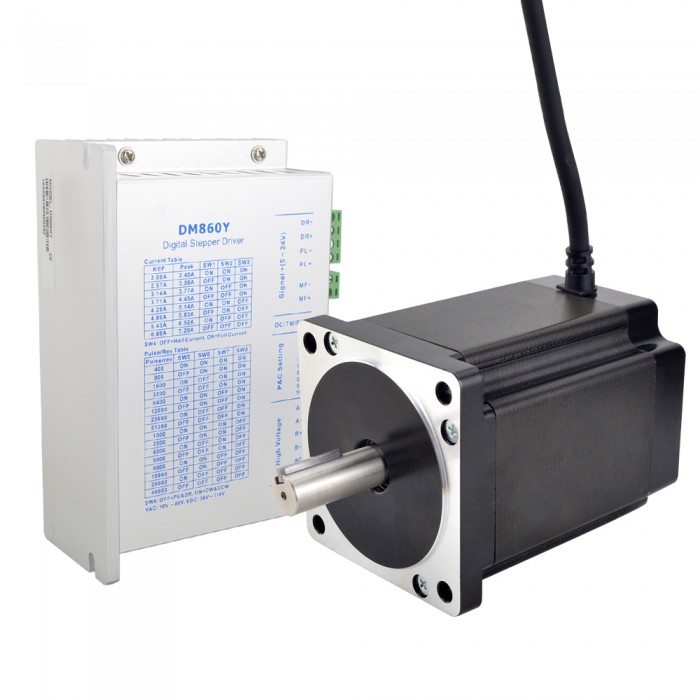

This CNC kit includes:

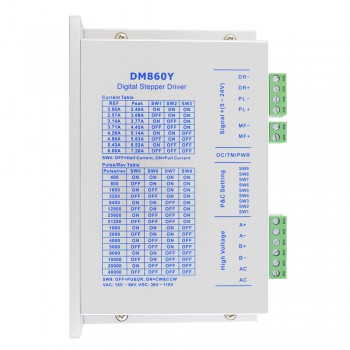

- 1 x Digital Stepper Driver 2.4-7.2A AC18V-80V / DC 36V-110V for Nema 34 Motor

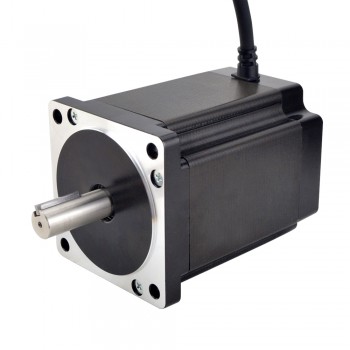

- 1 x E Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2 Nm(1161.45oz.in) 6.0A 86x86x114mm 4 Wires
Motor Specification
- Manufacturer Part Number: 34HE45-6004S
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 8.2 Nm(849.84oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.51 ohms± 10%
- Inductance: 5.1 mH ± 20%(1KHz)
- Frame Size: 86 x 86 mm
- Body Length: 114 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- Keyway Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
Driver Specification
- Output Peak Current: 2.4 - 7.2 A（2.0~6.0RMS）
- Input Voltage: AC18V~80V/DC 36V-110V
- Logic Signal Current: 7 - 15 mA (Typical 10 mA)
- Pulse Input Frequency: 0 - 200 kHz
- Pulse Width: 2.5μS
- Isolation Resistance: 500 MΩ
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0 － 65 ℃
- Humidity: 40% － 90% RH
- Operating Temperature: 50 ℃ MAX
- Vibration: 10-50Hz/0.15mm
- Storage Temperature: -20 － 65 ℃
Resources
- Motor Datasheet: 34HE45-6004S.pdf
- Motor Torque Curve: 34HE45-6004S_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| No of Axis | Single Axis |
| Open-loop/Closed-loop | Open-loop |
| Motor Specification | |
| Body Length(mm) | 114 |
| Holding Torque (oz.in) | 849.84 |
| Inductance(mH) | 5.1 |
| Lead Length(mm) | 500 |
| Motor Nema Size | nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.51 |
| Rated Current (A) | 6.0 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Microstep(Steps/rev.) | 400-40000 |
| Output Current(A) | 2.4 - 7.2 |
| Pulse Width(μs) | 2.5 |
| Input Voltage(V) | AC18V~80V/DC 36V-110V |
