1 Axis Stepper CNC Kit 12.0Nm (1699.68oz.in) Nema 34 Stepper Motor & Digital Stepper Driver
Special Offer in May 2023:
- $10 Off Over $150
- $20 Off Over $300
- $30 Off Over $500
- $50 Off Over $800
- $60 Off Over $1000
- $80 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 31st, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$212.22

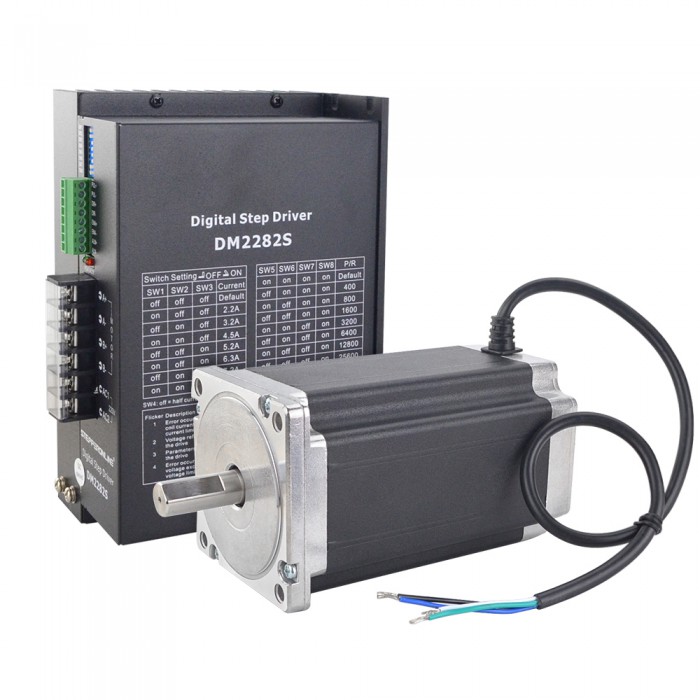

This CNC kit included:
- 1 x Digital Stepper Driver RMS Current Max 8.2A 80-240VAC
- 1 x Nema 34 CNC Stepper Motor 12.0Nm (1699.68oz.in) 86x86x150.5mm 4 Wires

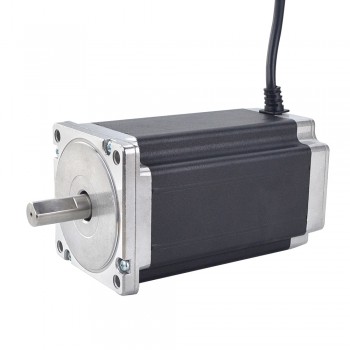

Motor Specification
- Manufacturer Part Number: 34HS59-5204S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 12.0 Nm(1699.68oz.in)
- Rated Current/phase: 5.2 A
- Phase Resistance: 0.80 ohms± 10%
- Inductance: 8.0 mH ± 20%(1KHz)
- Frame Size: 86 x 86 mm
- Body Length: 150.5 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 34 mm
- D-cut Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 5.4 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
BLU
|
WHT
|
GRN
|

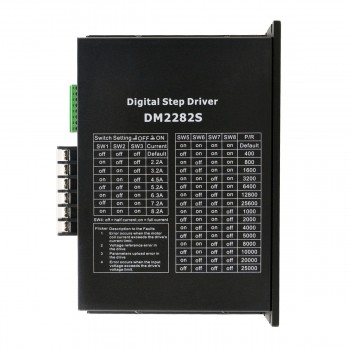

Driver Specification
- Parameter auto-setup and motor self-test
- Multi-Stepping inside, Small noise, low heat, smooth movement
- Torque compensation at high speed
- Variable current control technology, High current efficiency
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
- Support PUL/DIR and CW/CCW modes
- Storage the position of motor
- Optically isolated input and compatible with 5V or 24V
- User-defined microsteps
- Micro-step resolutions and Output current programmable
- Over current, over voltage and low voltage protection
- Automatic detection, flexible selection of pulse edge count mode
- Green light means running while red light means protection or off line
Resources
- Motor Datasheet: 34HS59-5204S.pdf
- Driver Manual: DM2282S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| Open-loop/Closed-loop | Open-loop |
| Motor Specification | |
| Body Length(mm) | 150.5 |
| Holding Torque (Ncm) | 1200 |
| Holding Torque (oz.in) | 1699.68 |
| Inductance(mH) | 8.0 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.80 |
| Rated Current (A) | 5.2 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Microstep(Steps/rev.) | 400-25000 |
| Output Current(A) | 2.2-8.2 |
| Input Voltage(V) | 80-240VAC |
| Physical Specification | |
| Weight(g) | 7350 |
