1 Axis Stepper CNC Kit 30 Nm(4249.2oz.in) Nema 42 Stepper Motor & Digital Stepper Driver
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$326.94

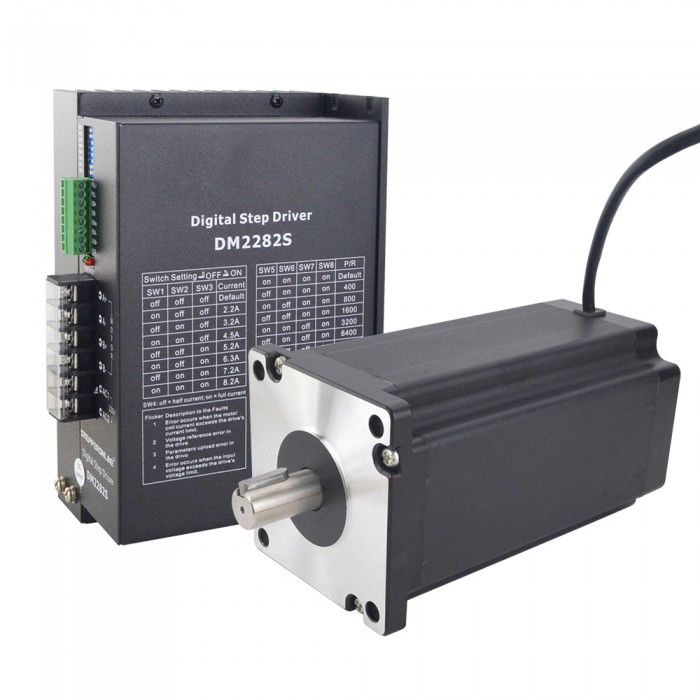

This CNC kit included:

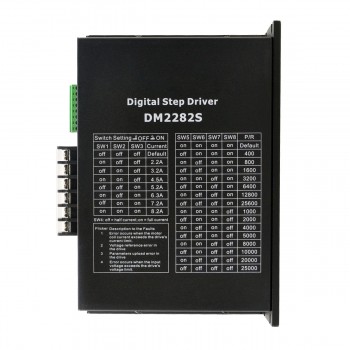

- 1 x Digital Stepper Driver RMS Current Max 8.2A 80-240VAC

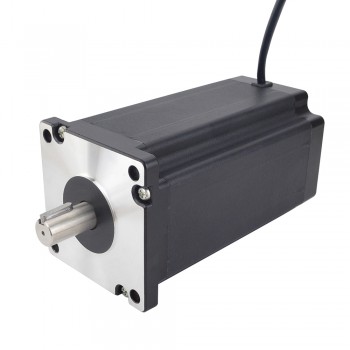

- 1 x Nema 42 CNC Stepper Motor Bipolar 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires
Motor Specification
- Manufacturer Part Number: 42HS80-6004S
- Number of Phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 30 Nm(4249.2oz.in)
- Rated Current/phase: 6 A
- Phase Resistance: 1.0 ohms± 10%
- Inductance: 24 mH ± 20%(1KHz)
- Frame Size: 110 x 110 mm
- Body Length: 202 mm
- Shaft Diameter: Φ19 mm
- Shaft Length: 40 mm
- keyway Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 12.3 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
RED
|
GRN
|
YEL
|
BLU
|
Driver Specification
- Parameter auto-setup and motor self-test
- Multi-Stepping inside, Small noise, low heat, smooth movement
- Torque compensation at high speed
- Variable current control technology, High current efficiency
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
- Support PUL/DIR and CW/CCW modes
- Storage the position of motor
- Optically isolated input and compatible with 5V or 24V
- User-defined microsteps
- Micro-step resolutions and Output current programmable
- Over current, over voltage and low voltage protection
- Automatic detection, flexible selection of pulse edge count mode
- Green light means running while red light means protection or off line
Resources
- Motor Datasheet: 42HS80-6004S.pdf
- Driver Manual: DM2282S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| CNC Kit Specification | |
|---|---|
| Open-loop/Closed-loop | Open-loop |
| Motor Specification | |
| Body Length(mm) | 202 |
| Holding Torque (Ncm) | 3000 |
| Inductance(mH) | 24 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 42 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.0 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 109 |
| Shaft Length(mm) | 40 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Microstep(Steps/rev.) | 400-25000 |
| Output Current(A) | 2.2-8.2 |
| Input Voltage(V) | 80-240VAC |
