Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Adjustable Speed

Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Adjustable Speed
NO.:DM456AI
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$92.41
Buy It Now:$61.61
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $55.74 10%
10 $52.81 14%
50 $49.88 19%
100 $46.94 24%
Add To Cart

Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Speed Adjustable



The DM456AI has built with a pulser already, you can control two Max current 2.8A stepper motors by PLC or potentiometer at same time, even you can run two motors without a controller. Eight currents and eight speeds can be seleted. Two digital input signals control the start/stop and direction seperately. It was widly used in the application of band carrier.



Note: When connect two motors, the driver will allocate 50% current to each motors averagely, and two motors will have same movement.



Key Features

24VDC Singal Voltage

Variable Speed Stepper Driver

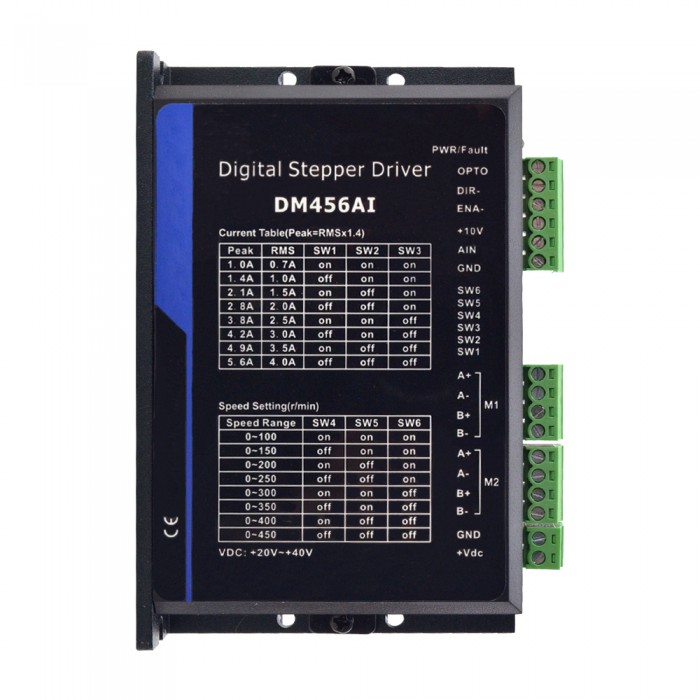

8 Currents and 8 Speeds Available

Input Voltage +20~40VDC, Max current 5.6A

ENA Controls Start/Stop, DIR Controls Direction

Match for Nema 14, Nema 17, Nema 23 Stepper Motors

PLC or controller (with 0-10V analog output or separate potentiometer)



Operating Environment and other Specifications(Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temperature: 0℃ - 65℃

Humidity: 40%RH-90%RH

Operating Temperature: -10℃ - 45℃

Vibration: 10-55Hz / 0.15mm

Storage Temperature: -20℃ - 65℃

Weight: Approx.210g (7.4oz)



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Modbus RS485 Stepper Driver 0.5-5.6A 24-48VDC Fit Nema 17, 23, 24 Stepper Motor
Next: E Series Nema 17 Stepper Motor Bipolar 1.8deg 17Ncm(24.07oz.in)1A 42x42x20mm 4 Wires
Electrical Specification
No. of Phase 2
Control Modes Pulse Mode
Encoder Feedback No
Integrated with Pulser Yes
Input Voltage(V) 20 - 40 DC
Product Series DMAI Series
Output Current(A) 1.0 - 5.6
