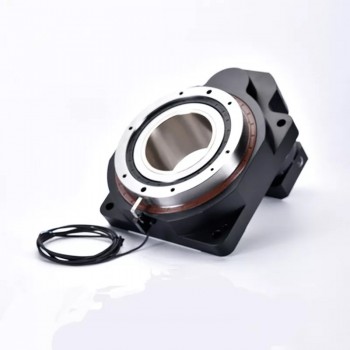

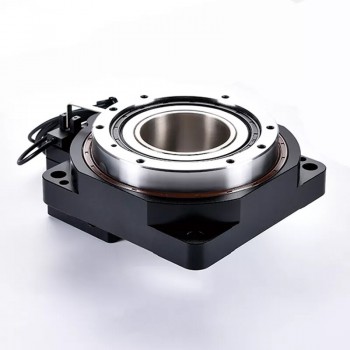

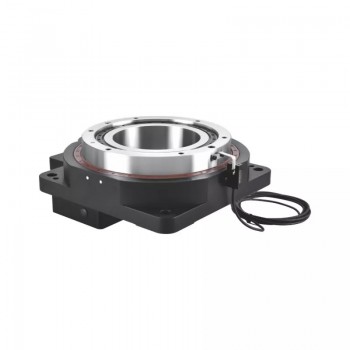

Hollow Rotating Platform Gearbox Ratio 10:1/ 18:1 for 80mm 750W AC Servo Motor
ZCT200-10/ZCT200-18 Rotary Actuator Reducer Input Shaft 19mm Ratio 10:1 18:1 for 80mm 750W AC Servo Motor/ Stepper Motor
Models:
ZCT200-10 19-70-90 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 80 frame 750W AC servo motor input shaft 19mm
ZCT200-18 19-70-90 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 18:1 for 80 frame 750W AC servo motor input shaft 19mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:
1st:Reduction Ratio
The reduction ratio of the planetary reducer you ordered is: 10:1 or 18:1
2nd:Input Size
We will ship the planetary reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | mounting flange | diagonal Screw hole distance |

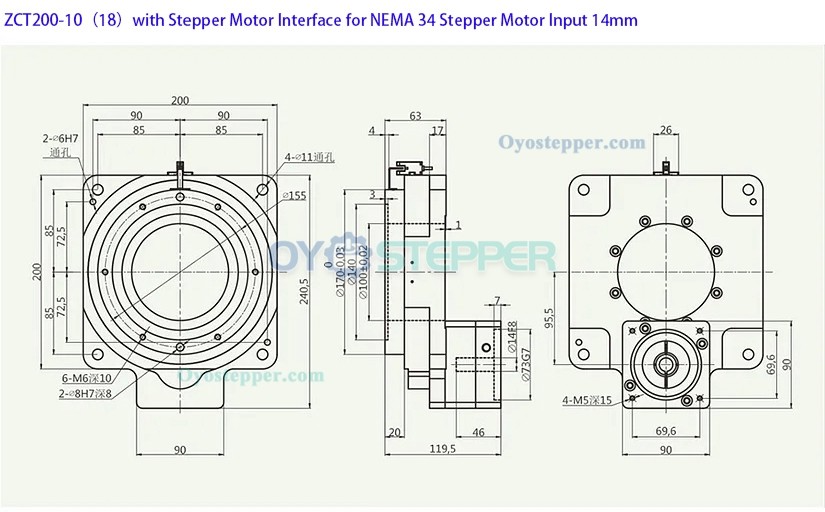

| ZCT200-10 for Nema 34 Stepper Motor | 90mm | 10:1 | 14mm | 70mm | 90mm |
| ZCT200-18 for Nema 34 Stepper Motor | 90mm | 18:1 | 14mm | 70mm | 90mm |

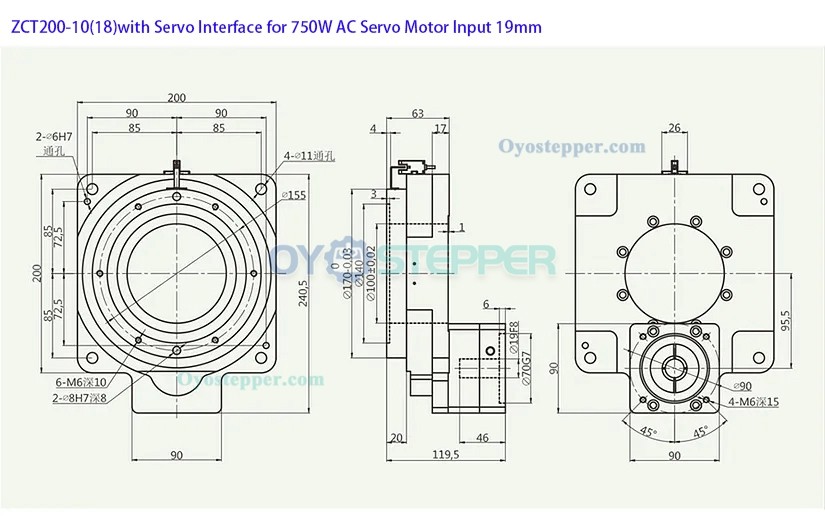

| ZCT200-10 for for 90 Frame Servo Motor | 90mm | 10:1 | 19mm | 70mm | 90mm |
| ZCT200-18 for for 90 Frame Servo Motor | 90mm | 18:1 | 19mm | 70mm | 90mm |
If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
3rd:Parameters
If you have inquiry to customize the precision ,input and output dimensions, reduction ratio please write me

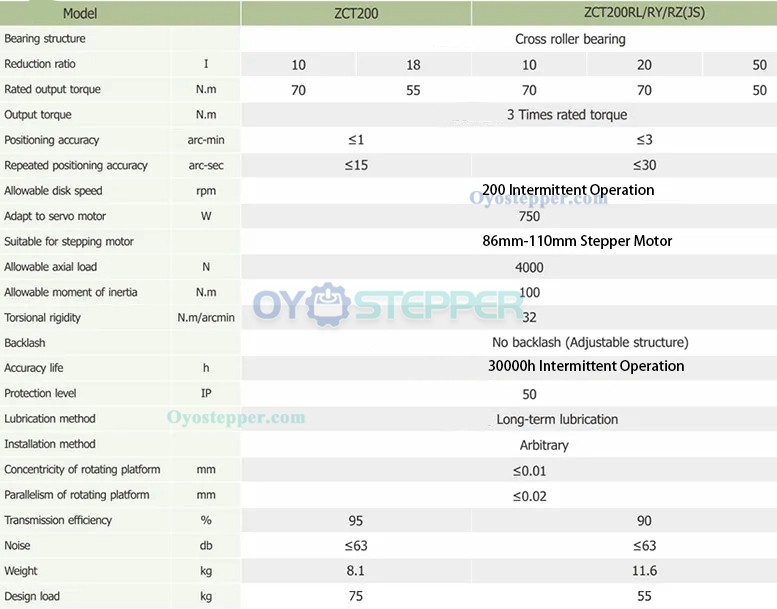

Here is the parameters of the planetary reducer:
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1/ 18:1 for 80mm 750W AC Servo Motor")
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1/ 18:1 for 80mm 750W AC Servo Motor")
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1/ 18:1 for 80mm 750W AC Servo Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 90 x 90 |
| Input Shaft Diameter(mm) | 19 / 14 |
| Input Shaft Length(mm) | 46 |
| Suit for Motor | Nema 34 / 90x90 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 10:1 / 18:1 |
| Backlash at No-load | No backlash |
| Product Type | 46 |
