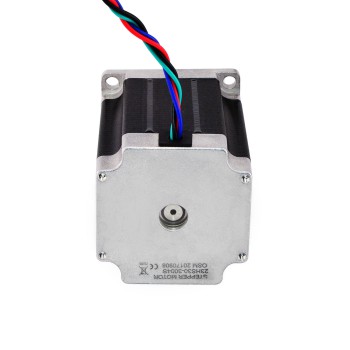

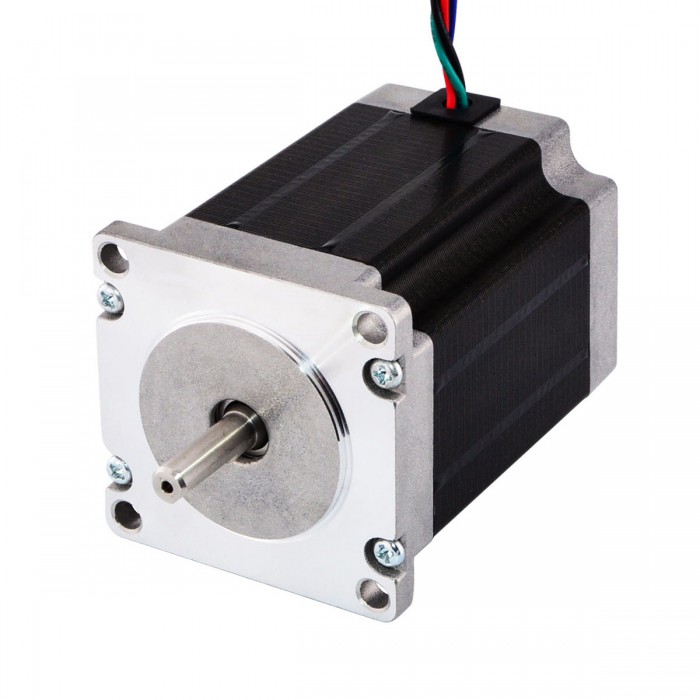

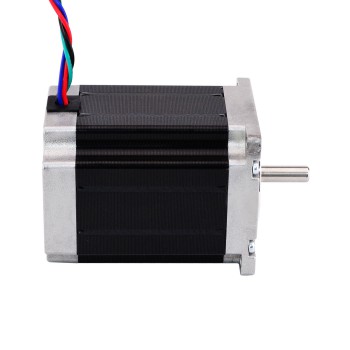

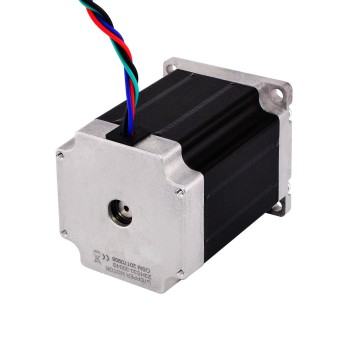

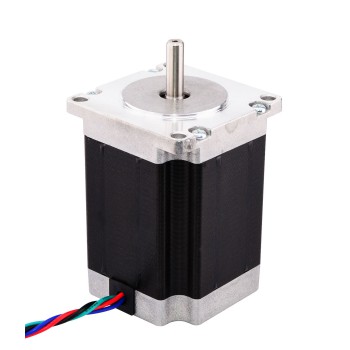

Nema 23 Stepper Motor Bipolar 1.8 deg 1.9Nm (269oz.in) 3A 3.36V 57x57x76mm 4 Wires

NO.:SKU:23HS30-3004S
Review: Post a review
Latest price:$29.48
Buy It Now:$22.68
Quantity:- +

Buy More, Save more!
2 - 9 10 - 49 50 - 99 100 - Max
$17.69 $17.23 $16.78 $16.33
Add To Cart

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 3A, with holding torque 1.9Nm (269oz.in).

Electrical Specification

  • Manufacturer Part Number: 23HS30-3004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.9Nm(269oz.in)
  • Rated Current/phase: 3A
  • Voltage: 3.36V
  • Phase Resistance: 1.12ohms
  • Inductance: 4.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 23 Stepper Motor Unipolar 1.8 deg 1.35Nm (191.2oz.in) 3A 3V 57x76mm 6 Wires
Next: Dual Shaft Nema 23 Stepper Motor Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 189
Holding Torque (oz.in) 267.6
Inductance(mH) 4.8
Phase Resistance(ohm) 1.12
Rated Current (A) 3
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1100
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
