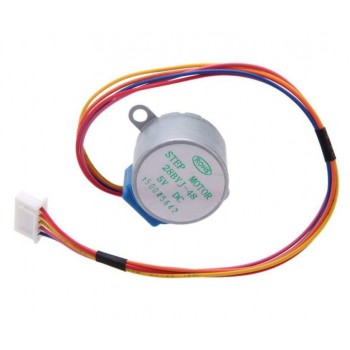

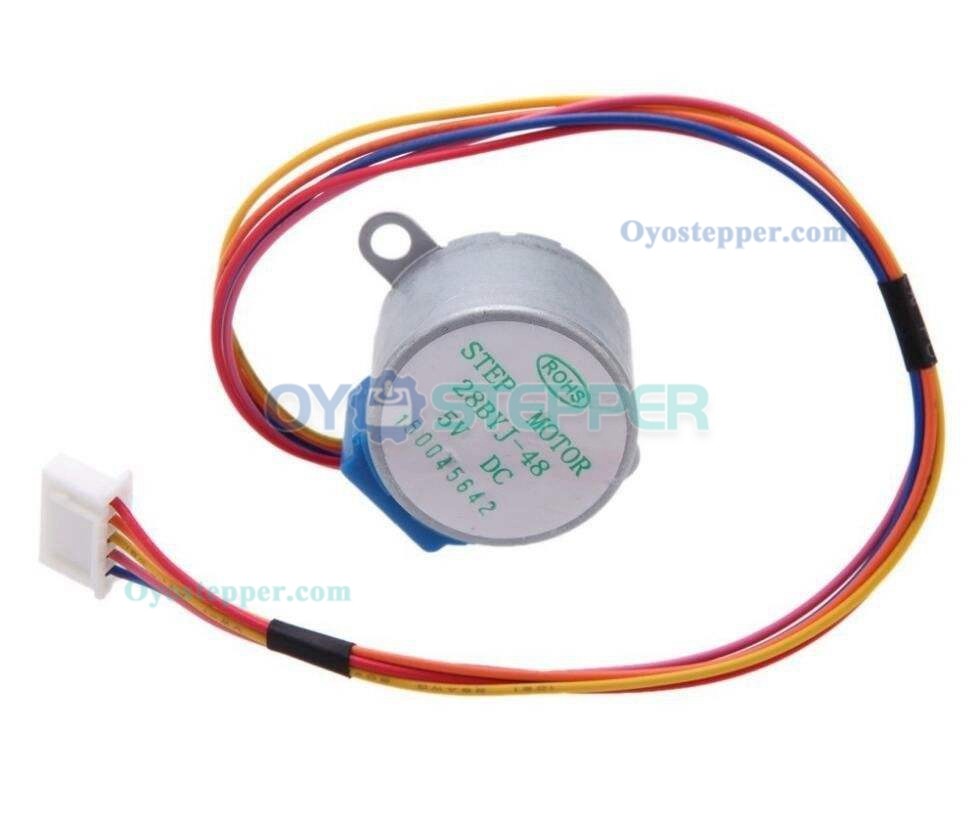

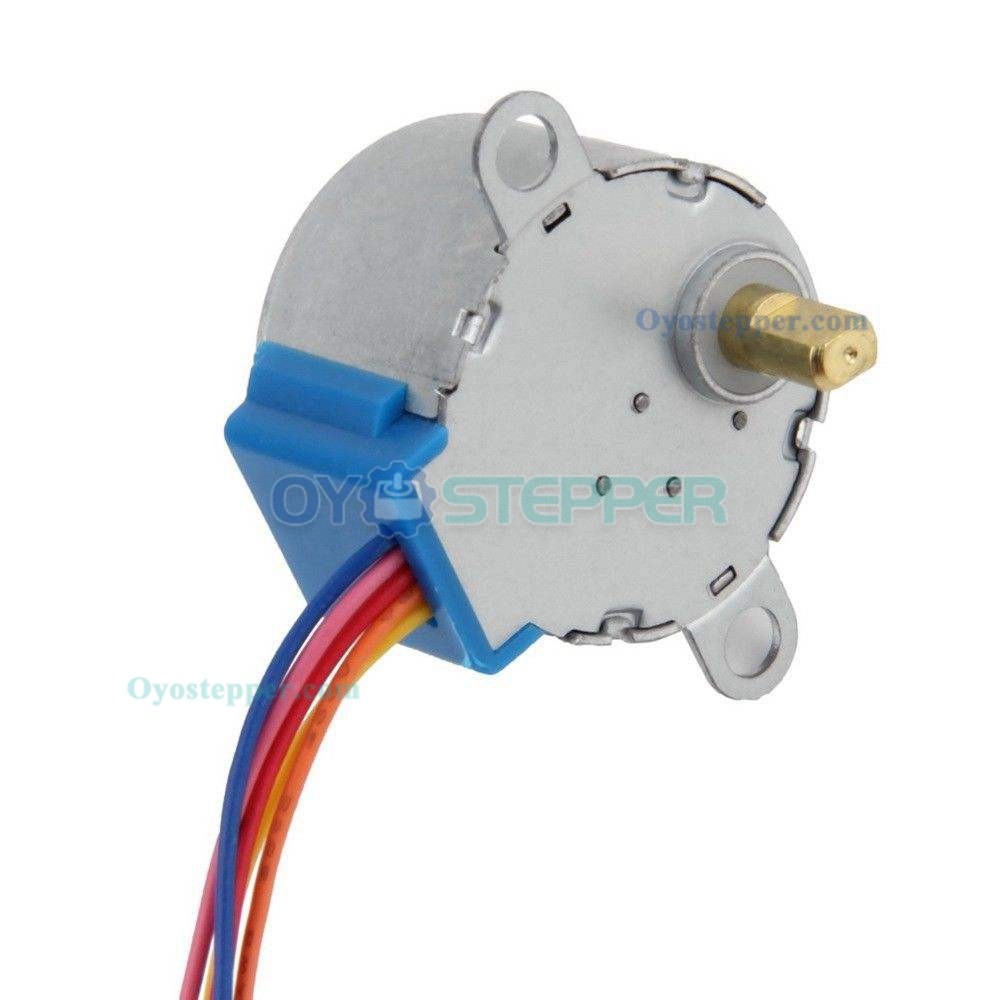

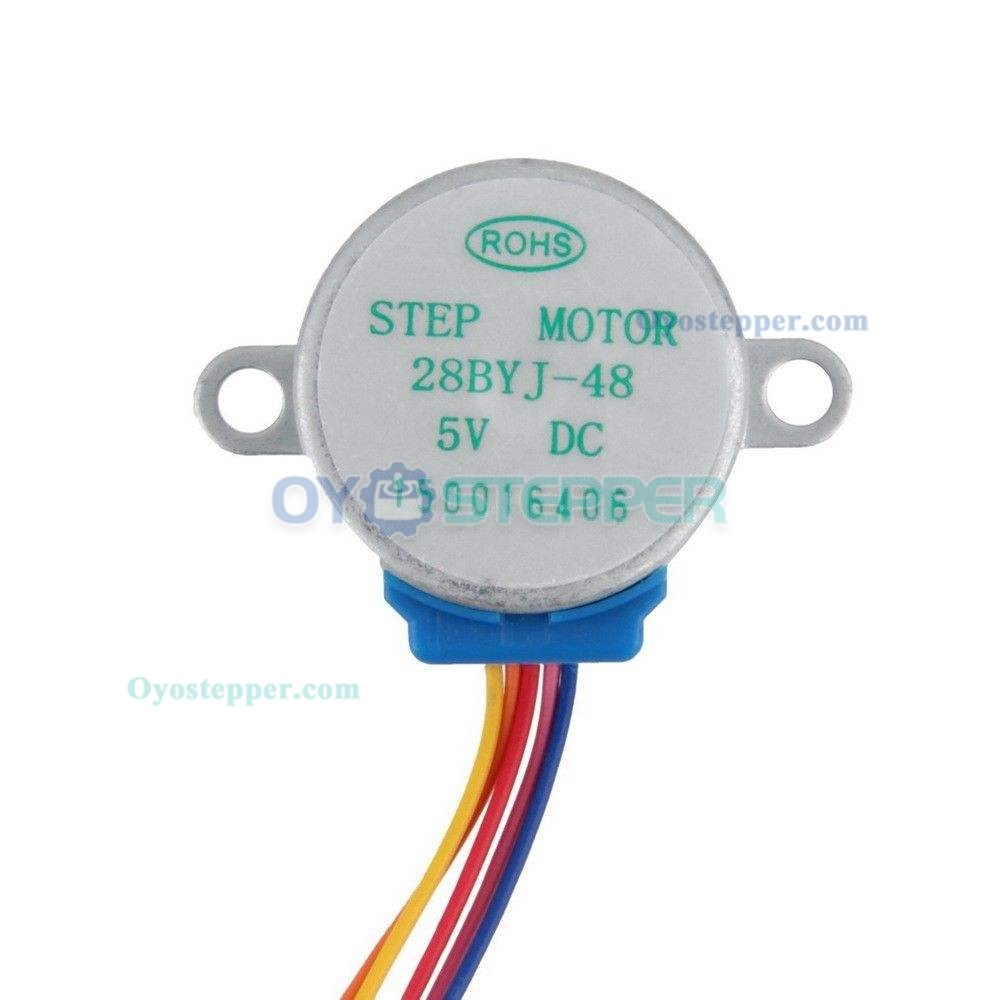

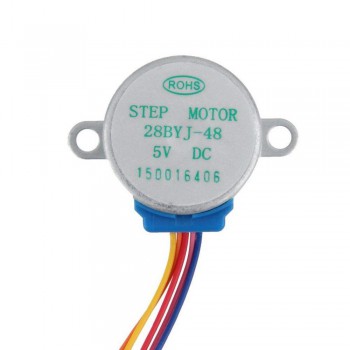

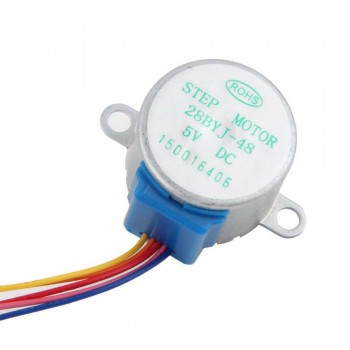

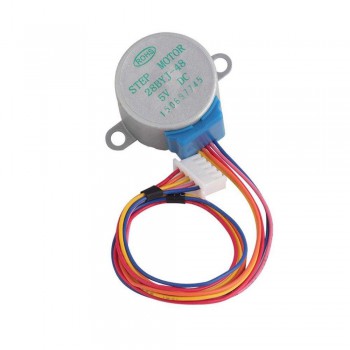

28BYJ-48 5V 4 Phase 5 Wire DC 5V Gear Step Stepper Motor Mini Reduction DC Gear Motor
5V 28BYJ-48 PM Stepper Motor 64:1 Reduction 4 Phase 5 Wire 5V Mini DC Gear Motor
Description:
Rated voltage ： 5VDC
Number of Phase 4
Speed Variation Ratio 1/64
Stride Angle 5.625° /64
Frequency 100Hz
DC resistance 50Ω±7%(25℃)
Idle In-traction Frequency > 600Hz
Idle Out-traction Frequency > 1000Hz
In-traction Torque >34.3mN.m(120Hz)
Self-positioning Torque >34.3mN.m
Friction torque 600-1200 gf.cm
Pull in torque 300 gf.cm
Insulated resistance >10MΩ(500V)
Insulated electricity power 600VAC/1mA/1s
Insulation grade A
Rise in Temperature <40K(120Hz)
Noise <35dB(120Hz,No load,10cm)
5 lines cable 4 phase stepper motor can be driven by ULN2003 chip. It also can be connected as 2 phase to use.
Color: Silver
Package included:
1pcs x 28BYJ-48
